2.0 ATA hard-shell hyperbaric chamber · Seated, compact
Developed for the elevator.

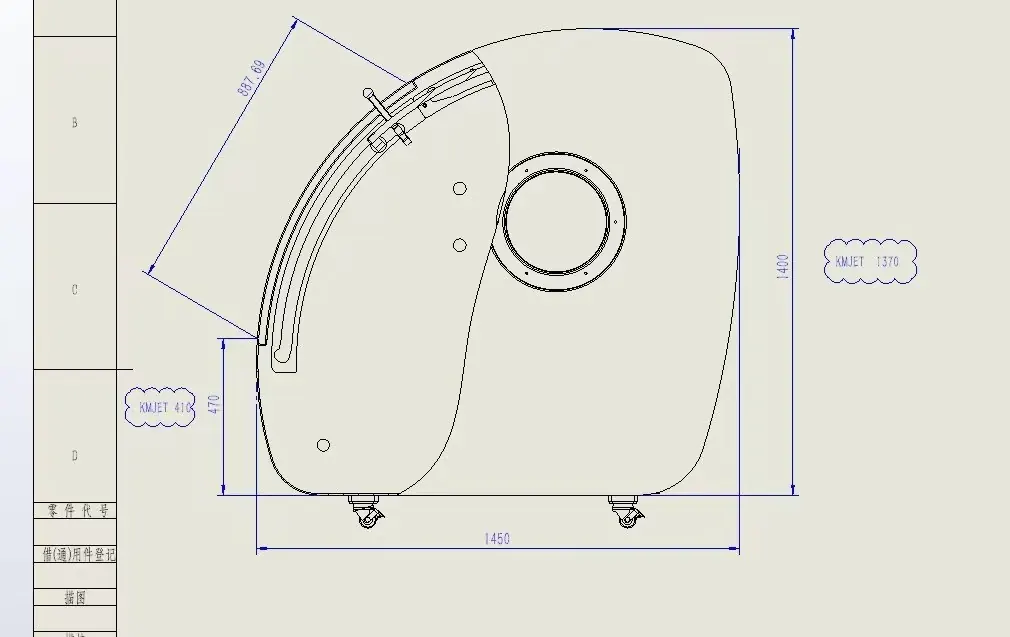

ORION COMPACT is a compact single-person seated chamber at 2.0 ATA for projects where the chamber has to travel by elevator. It measures 1,450 × 830 × 1,450 mm including wheels, weighs about 500 kg, and both the chamber and its separate main unit roll on wheels.
- Pressure
- 2.0 ATA
- Occupancy
- 1 person, seated
- Size L × W × H
- 1,450 × 830 × 1,450 mm
- Chamber weight
- ≈ 500 kgexcl. main unit
- Narrowest width
- 830 mmoverall width incl. wheels
- Main unit
- 10L all-in-onewith air conditioning
Overview
Why ORION COMPACT.
Sized for the lift, on wheels
1,450 mm long and high, 830 mm wide including wheels; chamber and main unit both roll.
The lightest hard-shell model
About 500 kg for the chamber body — check the lift's rated load with people and handling equipment included.
Built-in seat
A built-in sofa with adjustable backrest is standard; alternative seating is not offered.
Options kept simple
20L + BIBS, single or dual infrared, pulse oximeter and negative-ion unit. Three-panel infrared, illuminated door, folding table, PEMF and entry steps are not offered.
Gallery

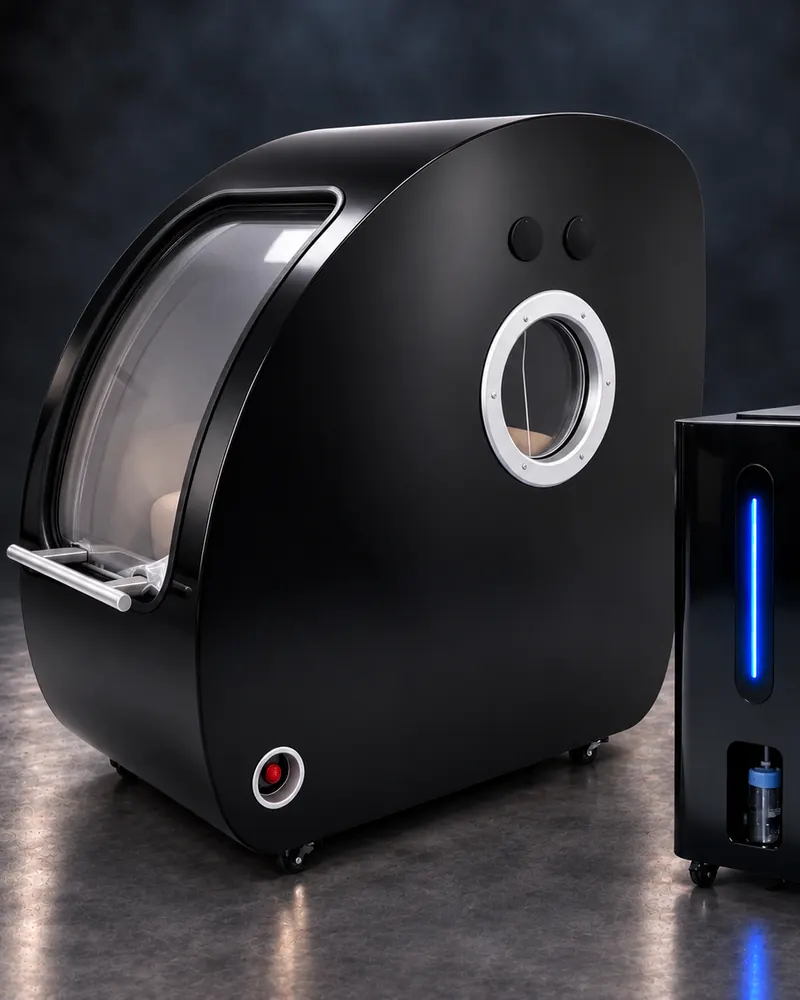

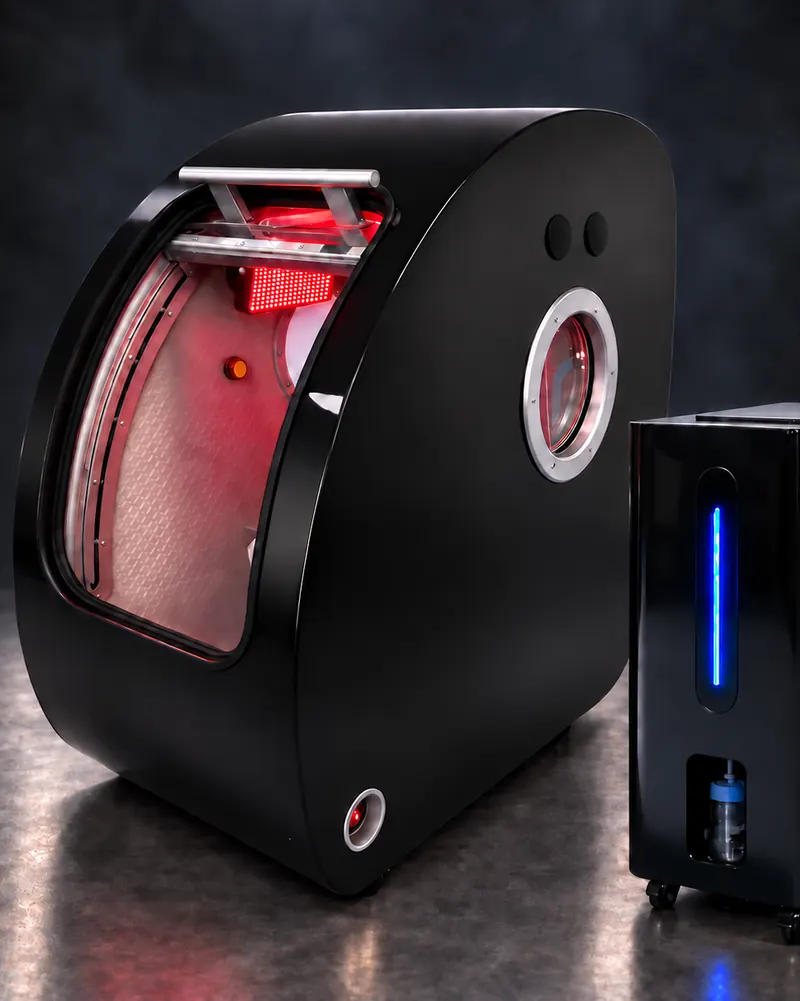

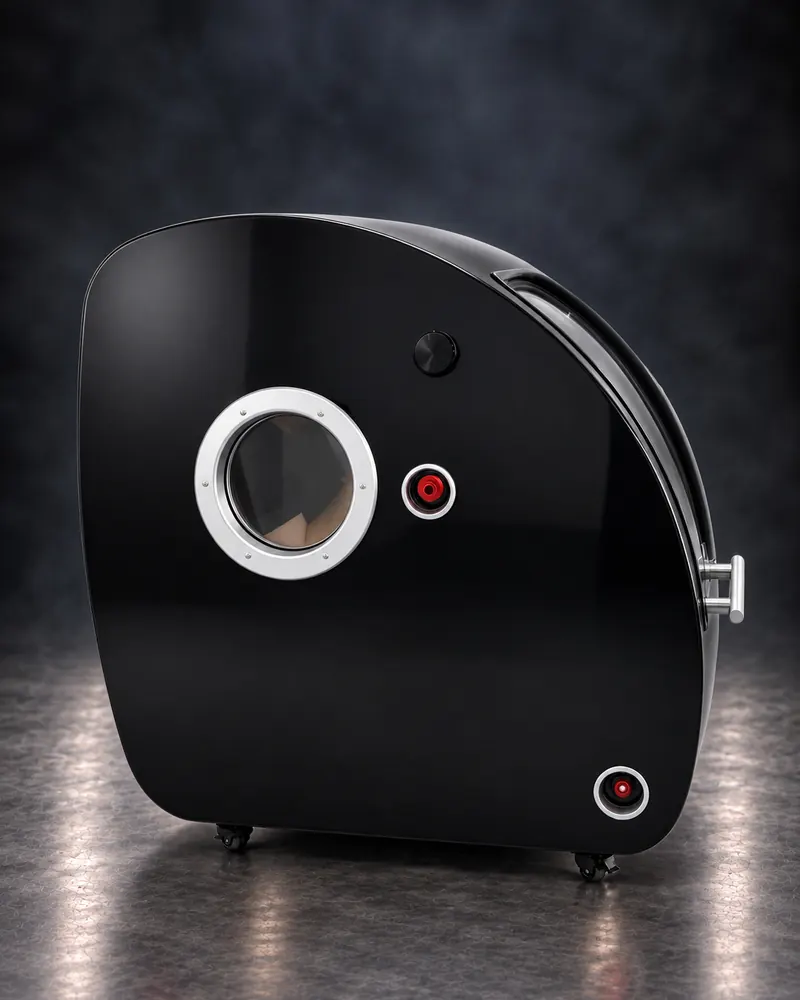

ORION COMPACT: exterior, interior, controls — and on the factory floor.
Factory photographs and brochure images, from the finished chamber to the raw steel shell. Every caption says what it is, and optional equipment is labelled. Select a photo to enlarge it.
Access & site planning
Will it reach the room?
Overall width including wheels. The shell is not designed to be taken apart — the lift itself must be large enough and rated for the load.
Widths are body measurements from the model documentation — not guaranteed doorway clearances. Height, turns, stairs, lifts, floor loading and handling space are reviewed for each project.
What to send us before you order
- Photos and measurements of each narrow point on the route — doors, corridors, turns, stairs
- Lift door width and height, cabin width and depth, rated load
- Floor level and floor loading for upper floors
- Room size and where the separate main unit can stand
- Your power supply: 110 V / 60 Hz or 220 V / 50 Hz
Standard and optional
What every ORION COMPACT includes — and what you can add.
Many photographs show optional equipment. This is the line between the two, from the current model documentation and the five-model configuration comparison. Options are quoted with the chamber; combinations and the power version are confirmed by our engineers.
Included with every chamber
- 10L all-in-one main unitOxygen concentrator, air compressor and air conditioning in one cabinet.Standard
- Air conditioningIntegrated in the main unit.Standard
- Standard interior and sofaBase wall finish and seat. ORION COMPACT: built-in sofa with adjustable backrest.Standard
- Warm-white interior LEDInterior ambient lighting.Standard
- Two touch control panelsOne inside, one outside.Standard
- Two intercom unitsOne inside, one outside.Standard
Available to add
- 20L all-in-one + BIBSLarger main unit with a built-in breathing system and mask, replacing the 10L unit.Optional

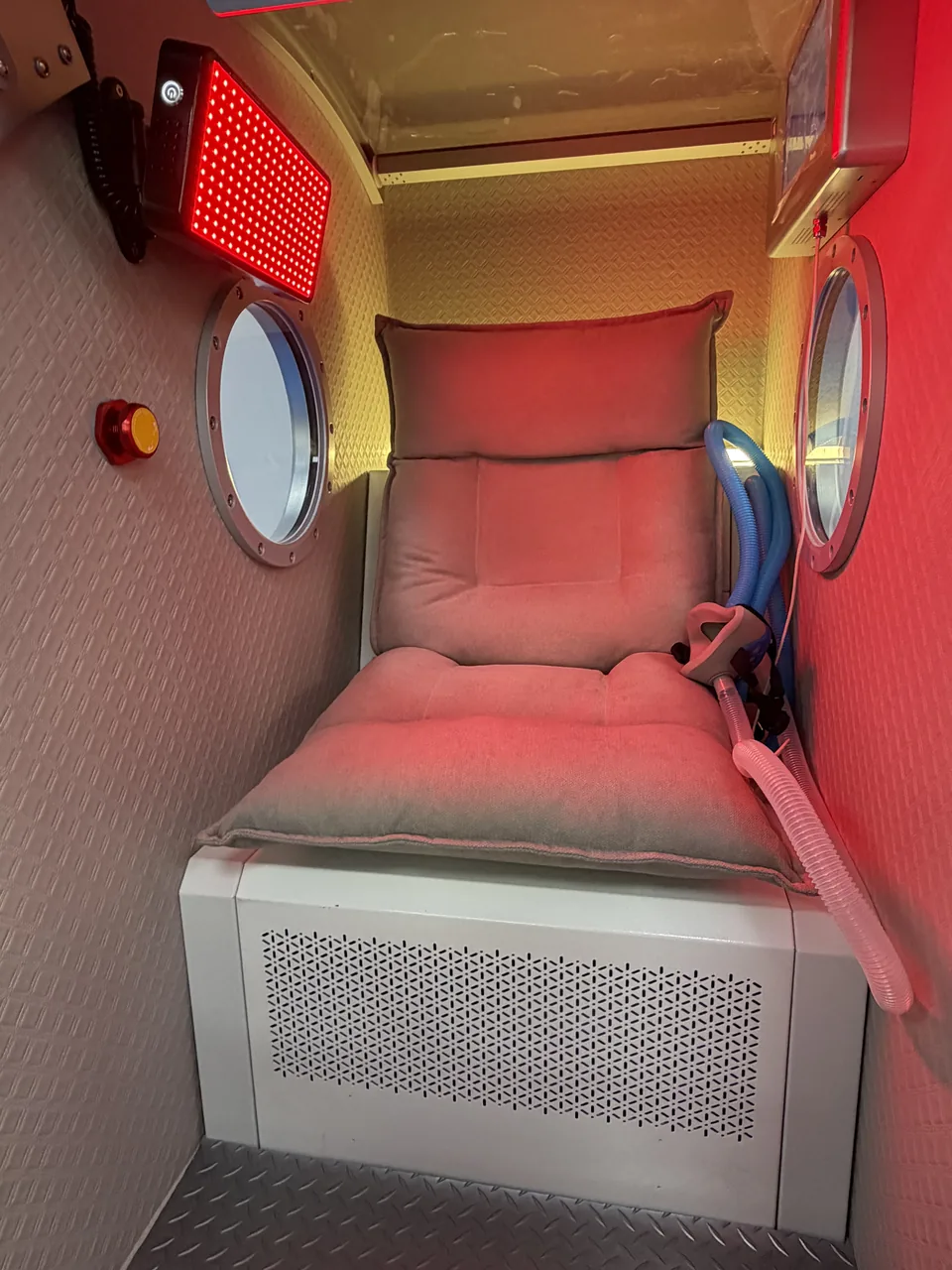

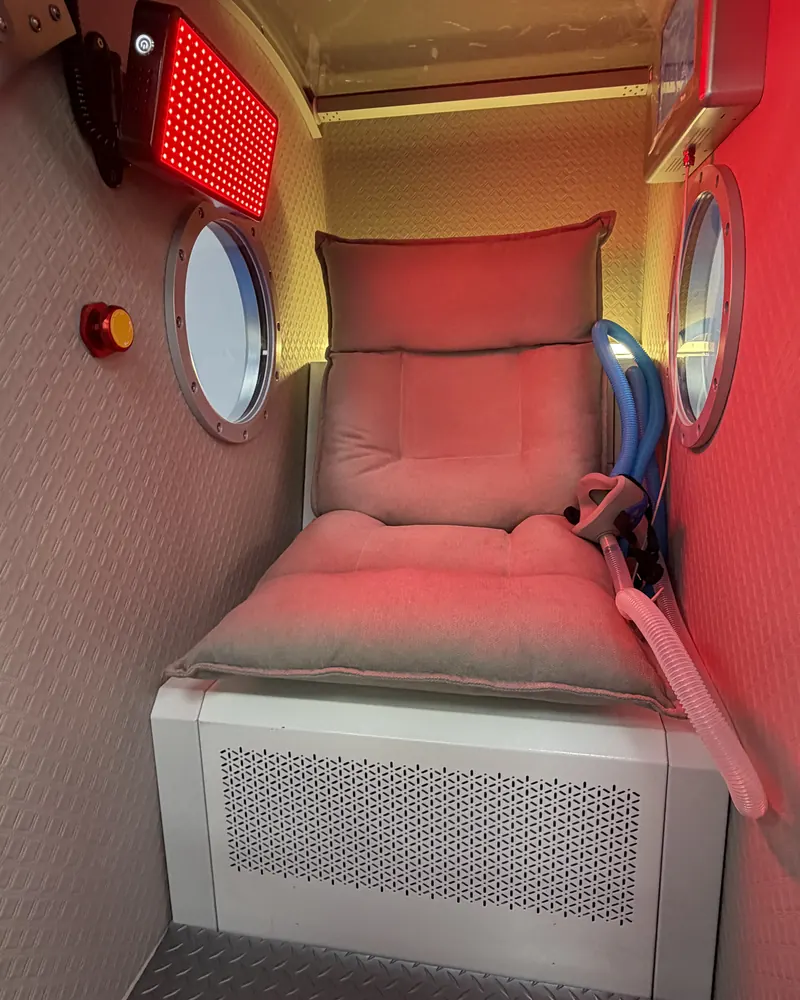

- Single infrared panelOne LED infrared panel inside the chamber.Optional
- Dual infrared panels (head + foot)One panel at the head, one at the foot.Optional
- Pulse oximeterFingertip SpO₂ and pulse monitor.Optional
- Negative-ion unitSmall unit inside the cabin.Optional
- Leather wall lining · metal handle · aluminium strip · door position limiterInterior and exterior finish items; fit confirmed per model and order.On request
Not offered on this model
- Three-panel infrared lightThree panels on an adjustable arm.Not offered
- Seating upgradeNAPA massage sofa; LUMEN flagship NAPA sofa with folding desk; VISTA two-person sofa.Not offered
- Folding tableFold-out surface on the chamber wall.Not offered
- PEMF seat systemPulsed electromagnetic field mat built into the seat, with its own controller.Not offered
- Plain entry stepStep in front of the door.Not offered
- Illuminated entry stepStep with built-in lighting.Not offered
- Illuminated doorLED lighting built into the door frame — LUMEN and ORION each have their own design.Not offered
Options on video
Six add-ons, shell colours, wall finishes, seating and the LED light setups, shown with our chambers. Nothing loads until you press play.
Customize
Your ORION COMPACT: shell colour, interior wall, seat.
Black, white, dark grey and light grey are the standard shell colours; any of the 216 RAL Classic colours can be ordered, and two-tone designs on request. Pick a colour below to preview it.
Colour preview

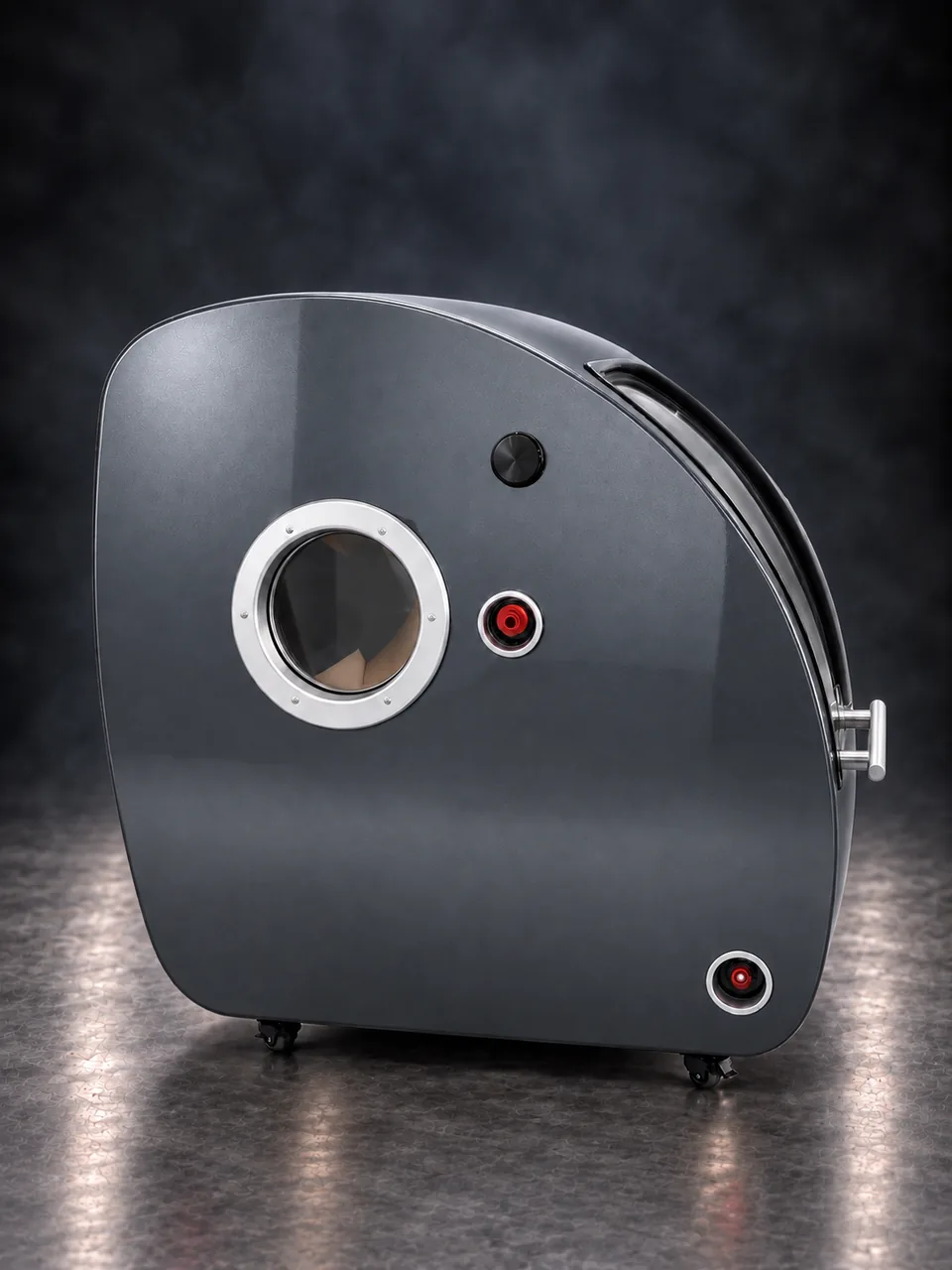

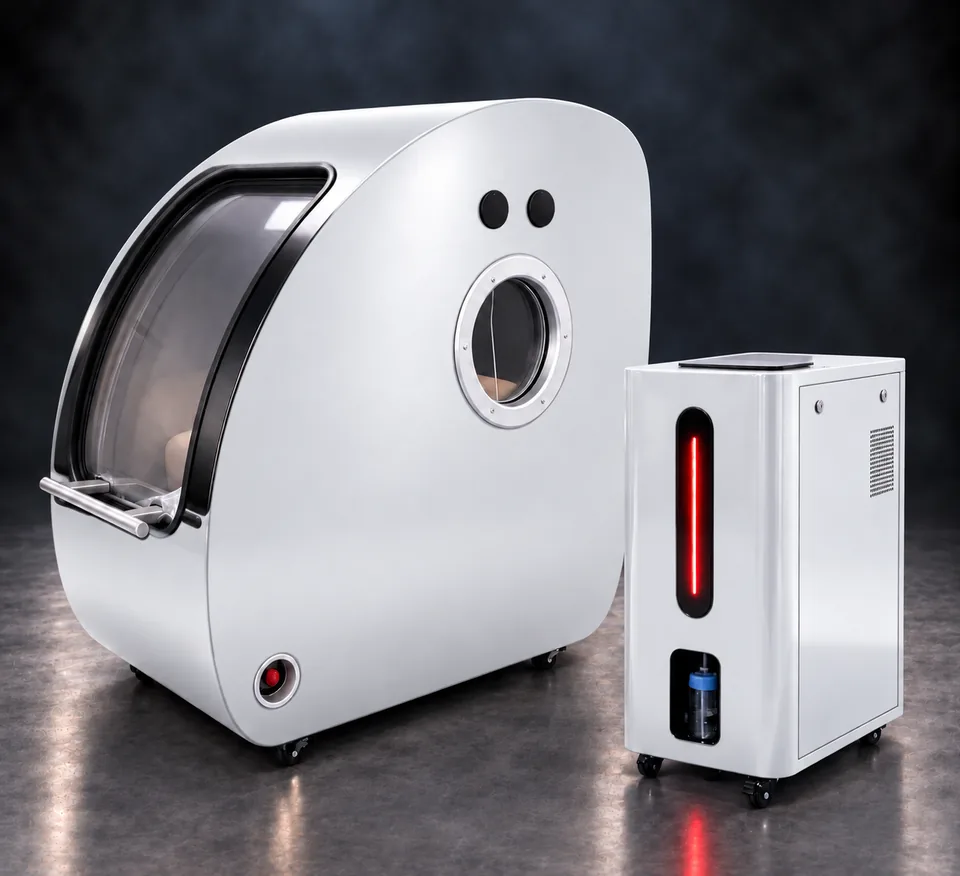

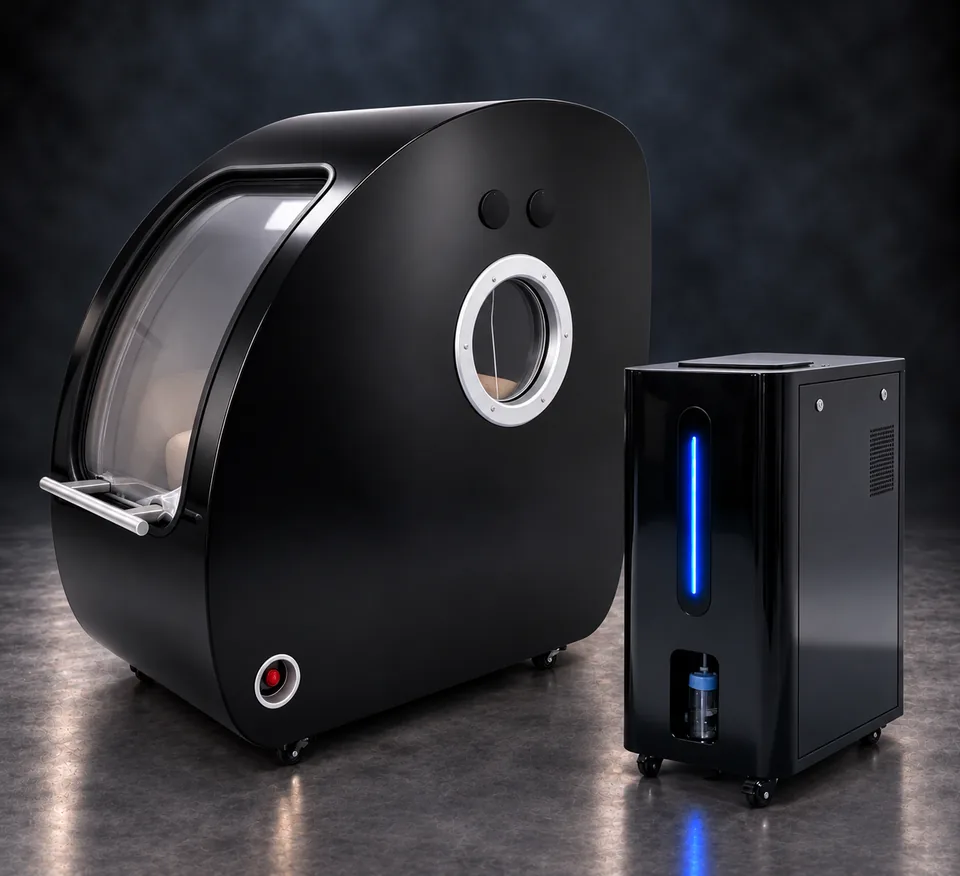

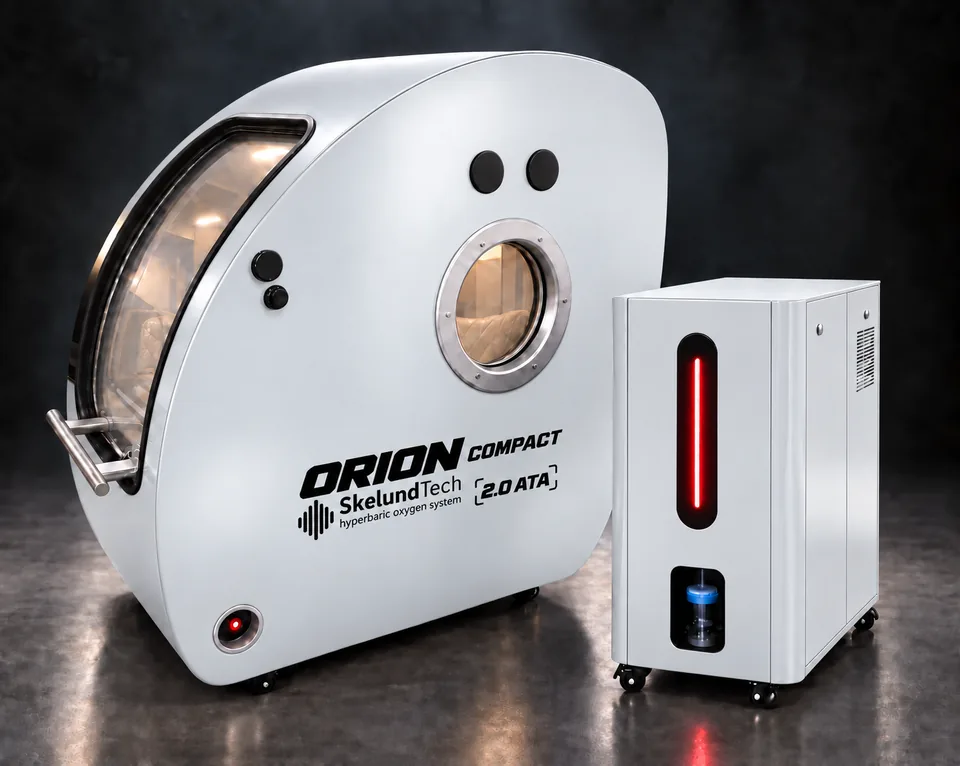

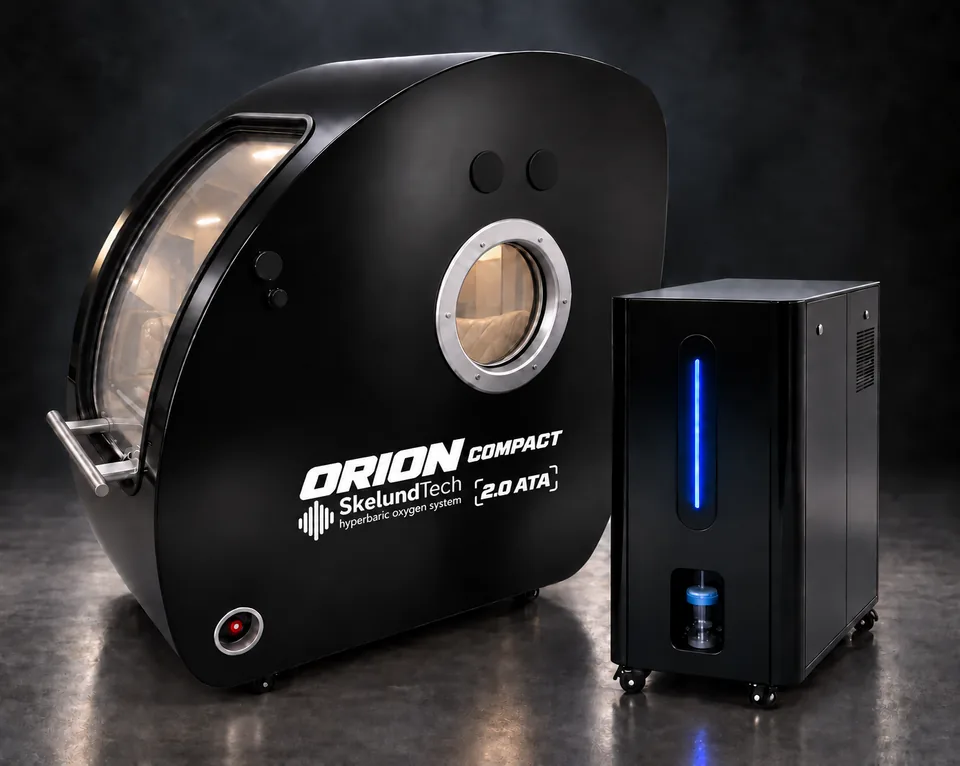

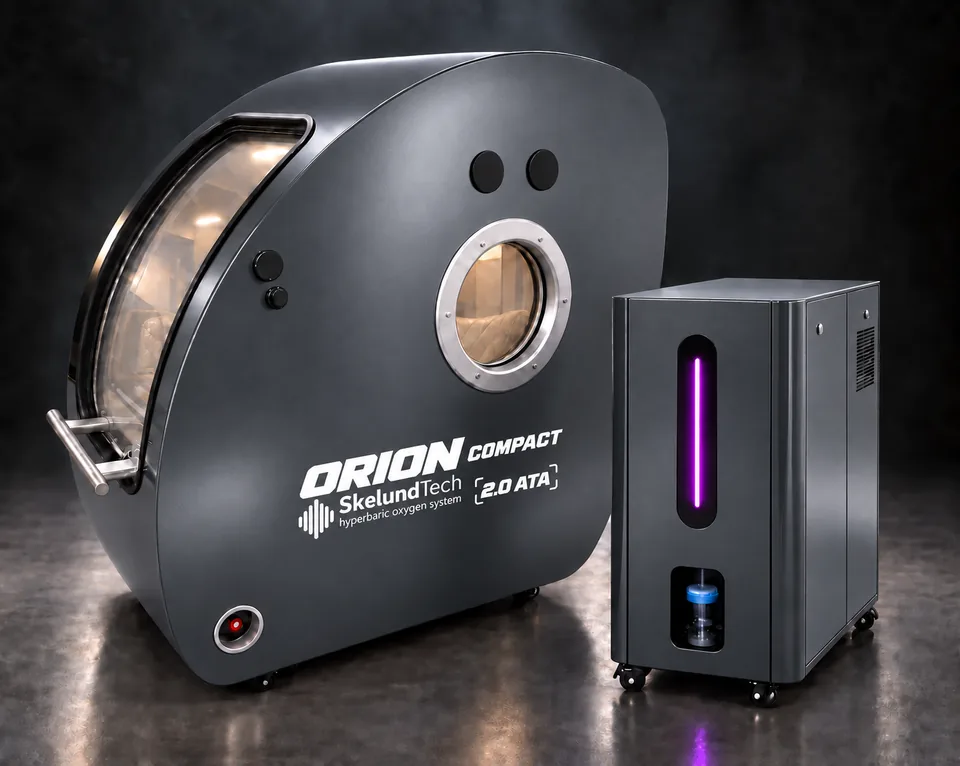

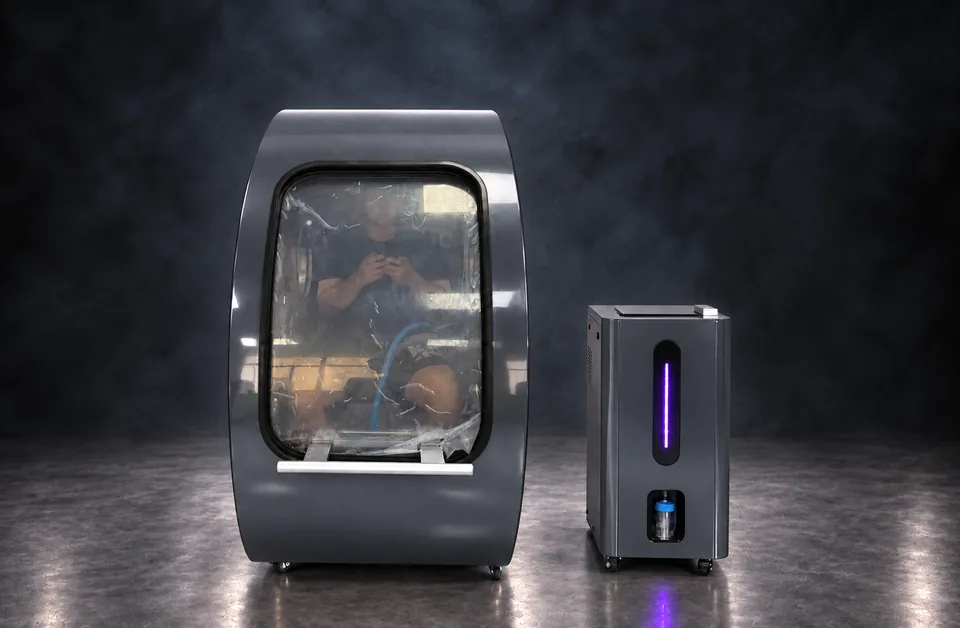

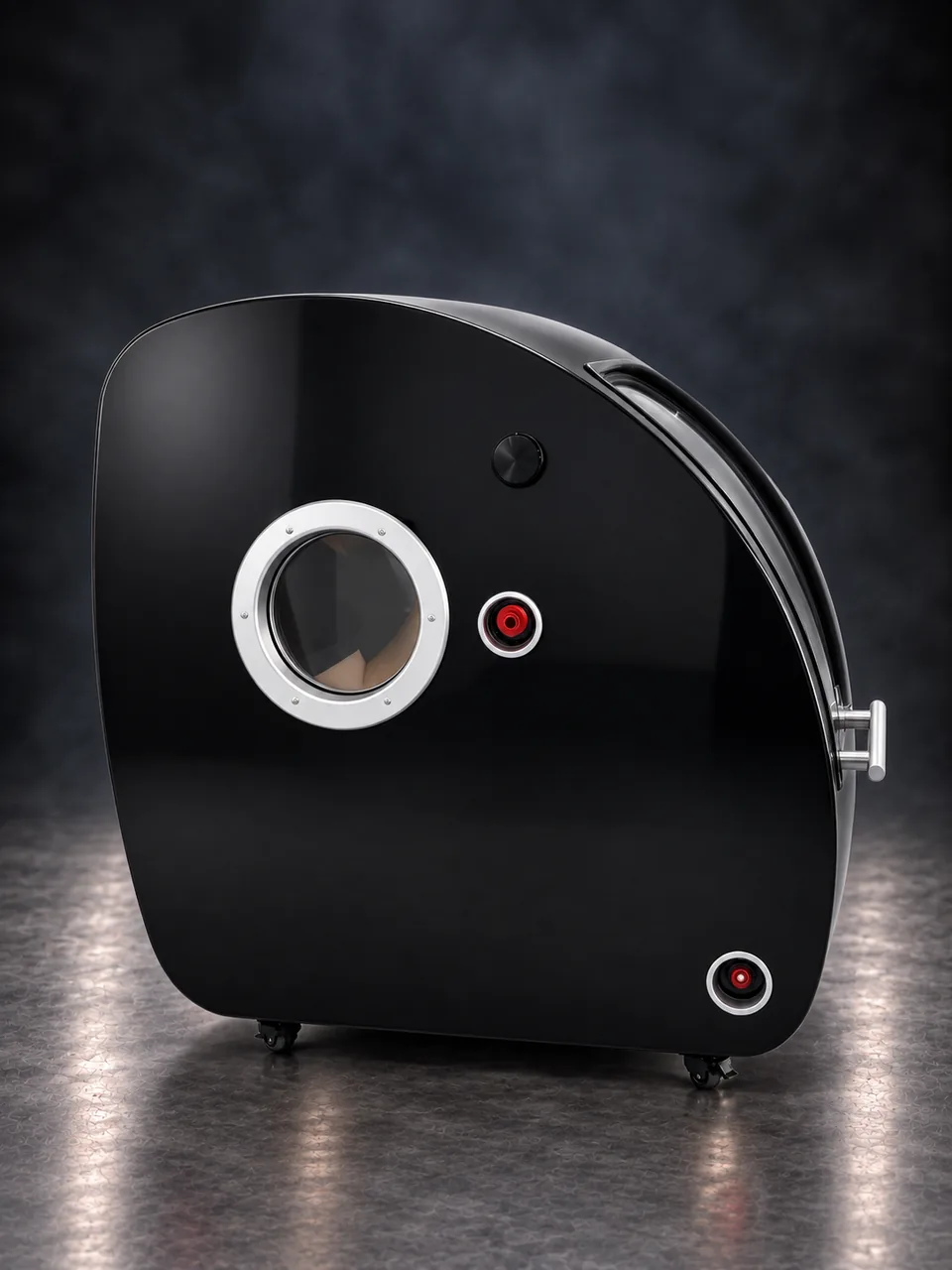

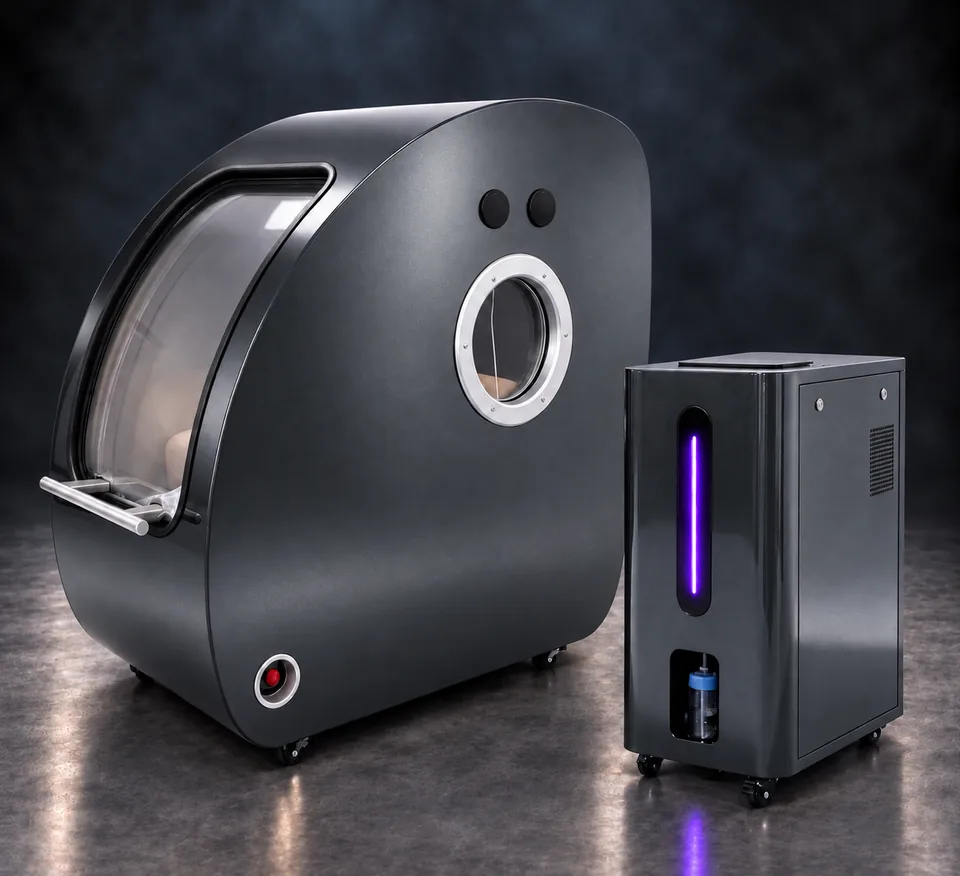

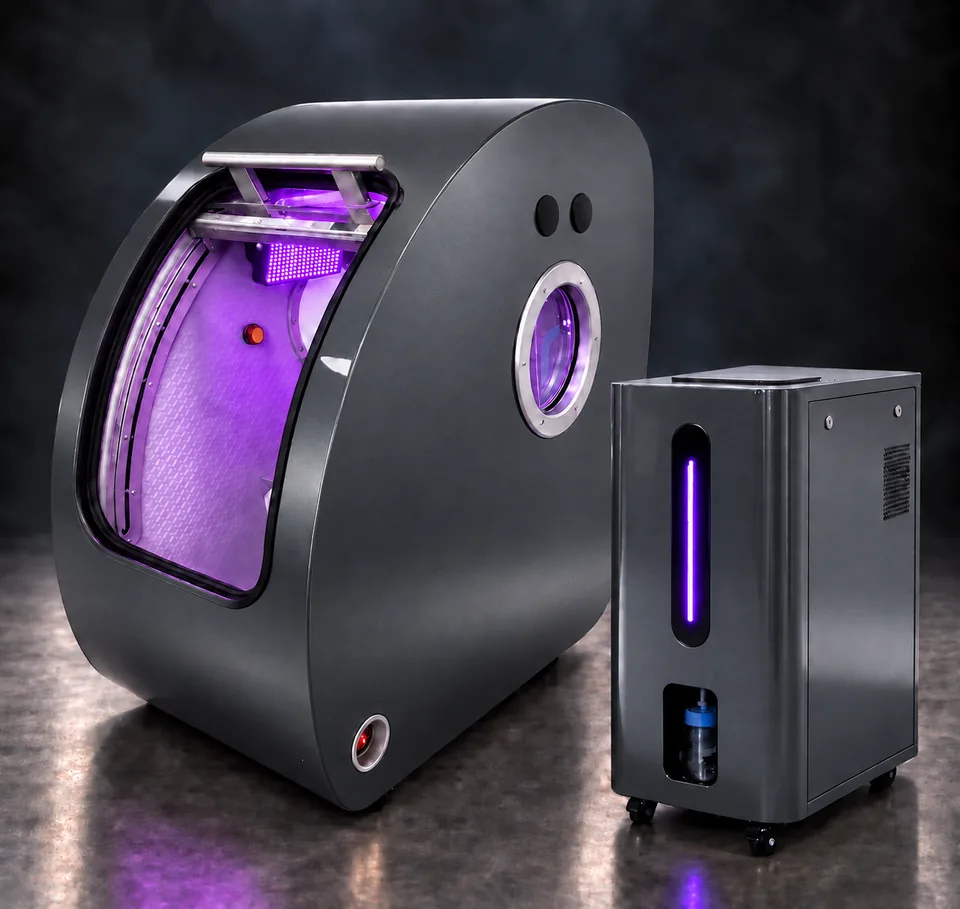

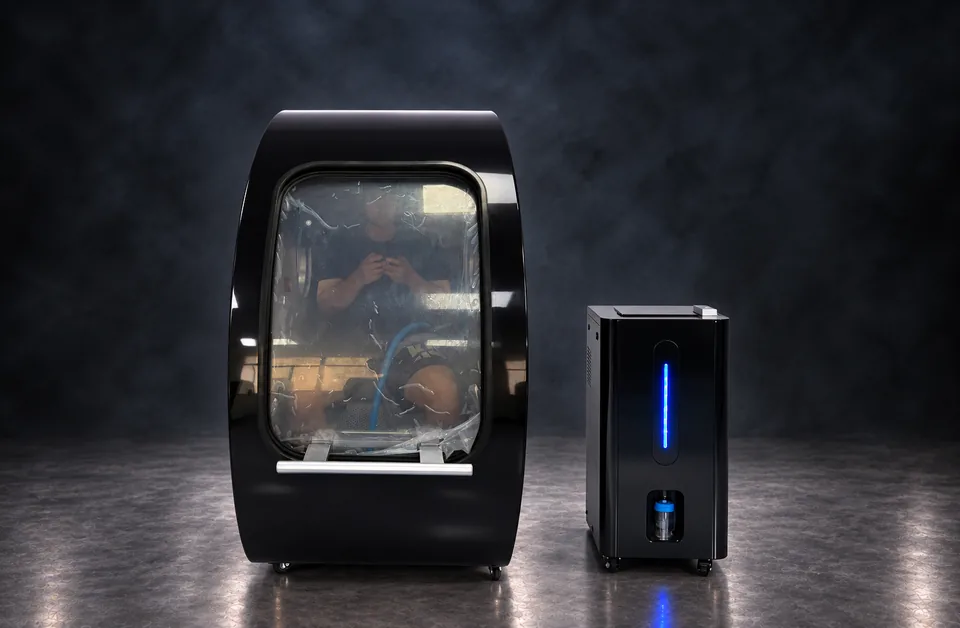

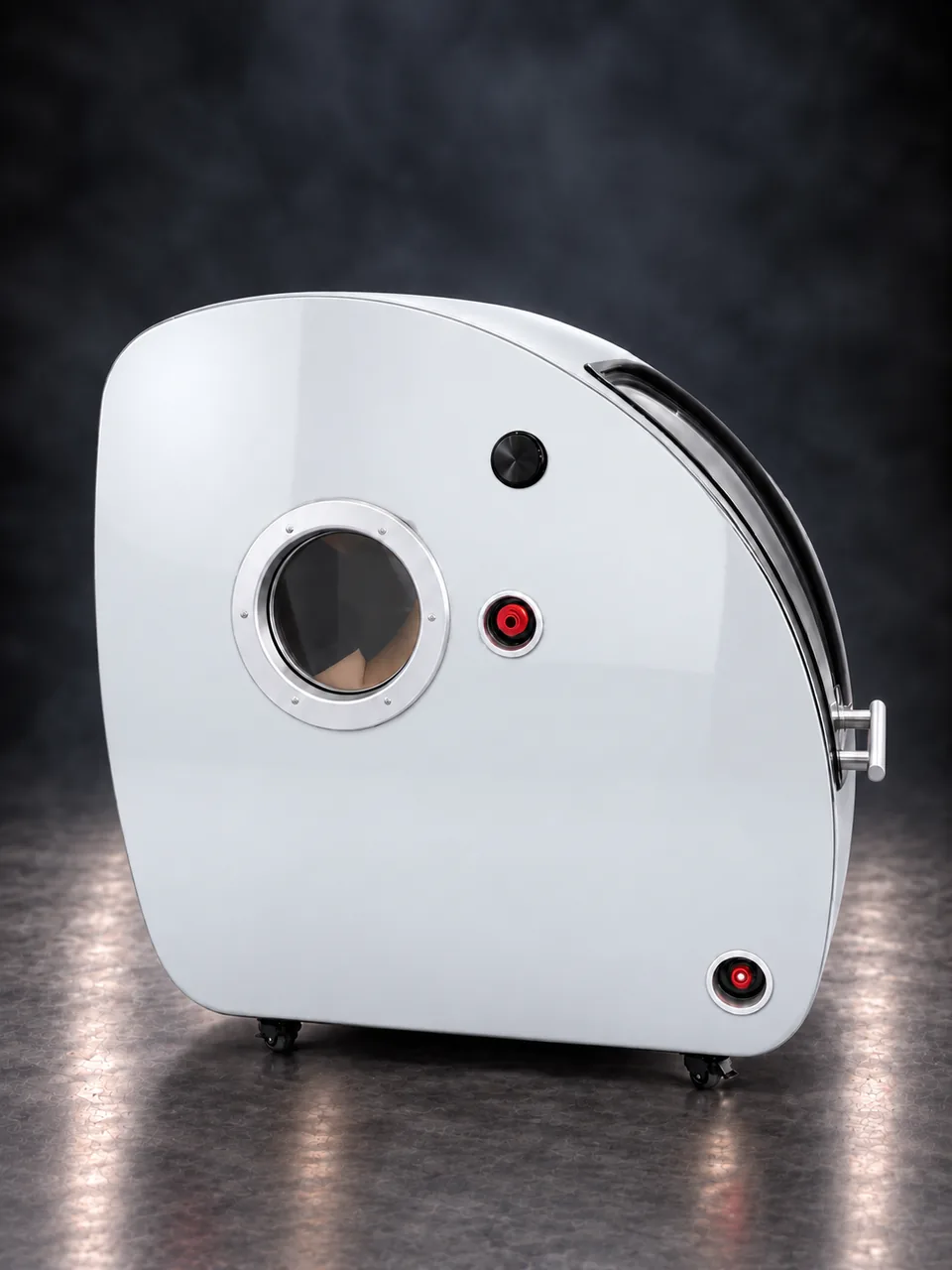

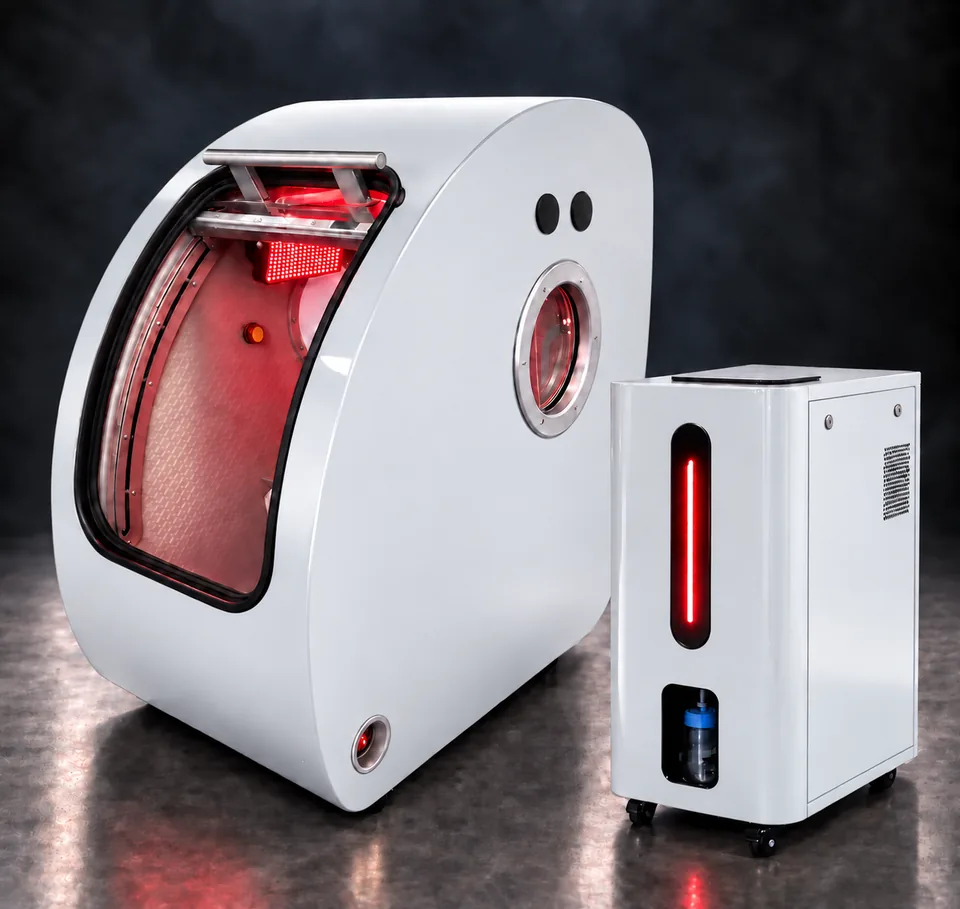

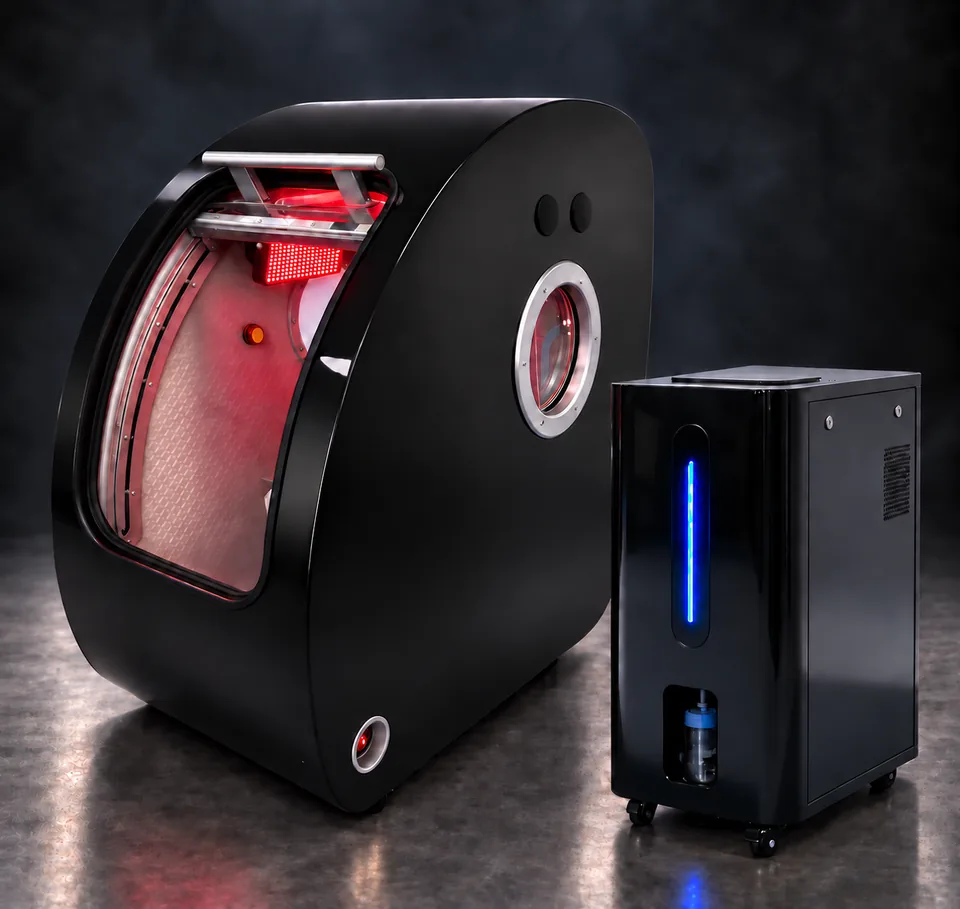

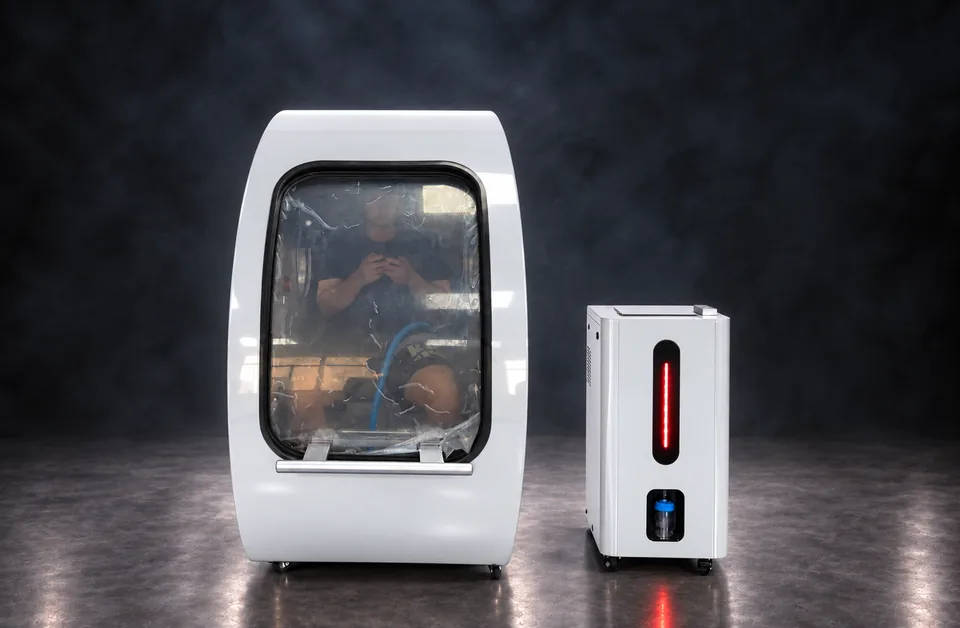

ORION COMPACT in 3 colours, 5 views.
Built-in sofa; lighting colour as shown. Colour previews are digital recolours of the chamber; on-screen colours are approximate. Confirm the final colour with a physical RAL sample before ordering.
Interior walls
Wall finishes for ORION COMPACT
Basic Wall (woven leather): 3 standard colours plus 24 woven colours.
See every wall colourSeating
Seats for ORION COMPACT

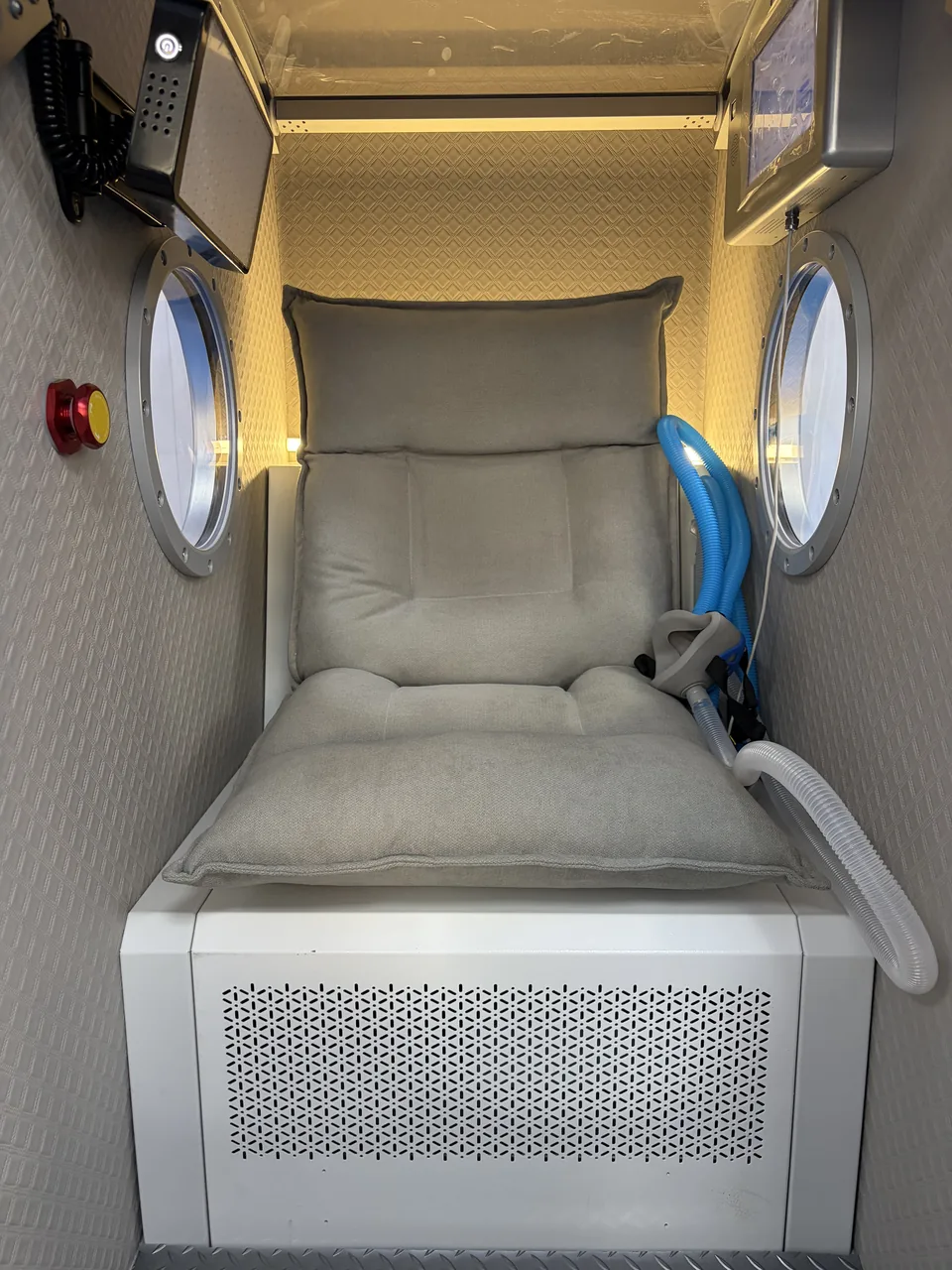

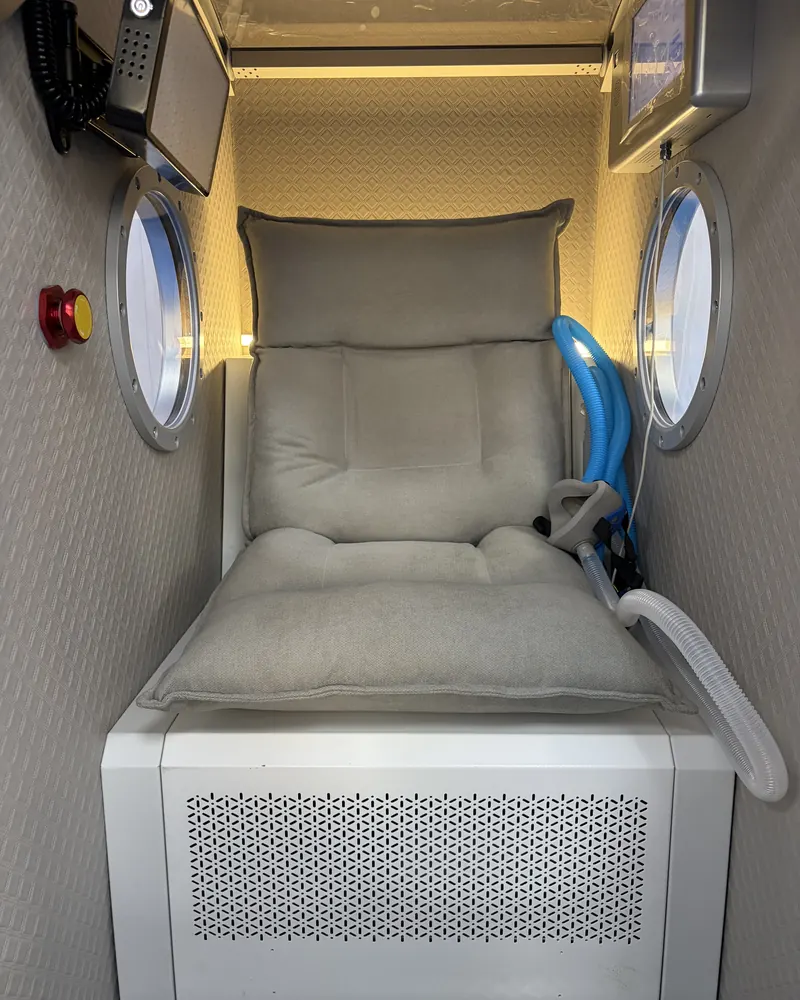

ORION COMPACT has a built-in sofa with an adjustable backrest; the seating upgrades are not offered on this model.
See every seat and colourTechnical data
ORION COMPACT specifications.
Approximate figures from the current model documentation (October 2026). Interior dimensions, clear door opening, main unit size and weight, and packed dimensions are confirmed per order.
- Operating pressure
- 2.0 ATA
- Occupancy
- 1 person, seated
- External size (L × W × H)
- 1,450 × 830 × 1,450 mmChamber only — allow space for the main unit, connections, door movement and service.
- Chamber weight
- ≈ 500 kgExcludes the main unit and packaging; the final configuration can affect weight.
- Narrowest documented width
- 830 mmoverall width incl. wheels. Body width, not a doorway clearance.
- Standard main unit
- 10L all-in-oneOxygen concentrator, air compressor and air conditioning in one cabinet.
- Optional main unit
- 20L all-in-one + BIBSTwo 10L concentrators, three compressors, built-in breathing system with mask.
- Oxygen supply concentration
- 93% ± 3%At the concentrator supply — not the oxygen level of the chamber air.
- Controls
- 2 touch panels + 2 intercoms, inside and outside
- Interior
- Warm-white LED · standard wall finish · standard sofa
- Standard exterior colours
- Black · White · Dark Grey · Light Grey
- Warranty
- 2 years (company policy)Scope, conditions and start date are set in your contract.
Electrical
| System | Supply | Rated power | Current |
|---|---|---|---|
| 10L all-in-one (standard) | 110 V / 60 Hz | 2,000 W | 20 A |
| 10L all-in-one (standard) | 220 V / 50 Hz | 1,500 W | 8 A |
| 20L all-in-one + BIBS (optional) | 110 V / 60 Hz | 2,700 W | 25 A |
| 20L all-in-one + BIBS (optional) | 220 V / 50 Hz | 2,500 W | 13 A |
Values from the model documentation. Choose the version that matches your installation; a local electrician plans a dedicated circuit.
In the crate
Delivered with every ORION COMPACT, besides the chamber, its all-in-one main unit and the options on your order.
Accessories
- 2 × oxygen masksStandard oxygen masks; the BIBS mask is part of the optional 20L system.
- 2 × headsetsTwo headsets, packed with every chamber.
- 2 × door sealsTwo door seals in the crate, so a replacement is on hand.
Documents
- Operation manualHow to run a session, the touch panels and the intercom.
- Product manualSpecifications, connections and the main unit.
- Maintenance manualChecks, consumables and how to replace the parts you can change yourself.
- Company profileWho we are and what we make.
ORION COMPACT spec sheet, drawings and brochure
We send model documents to buyers directly rather than publishing them for download: the specification sheet, dimensioned drawings for your access route and the brochure, plus copies of the quality documents that cover your model and destination. Tell us the model and your country and the team sends them the same working day (China Standard Time).
FAQ
ORION COMPACT questions.
More answers in the buyer guides and the FAQ.
Will ORION COMPACT fit my elevator?
It was developed for elevator access, but only a lift of suitable size and load rating works. Send us the lift doorway width, cabin width and depth, and the load rating; our engineers check it against the 1,450 × 830 × 1,450 mm chamber dimensions.
Which options are available for ORION COMPACT?
Optional: 20L all-in-one with BIBS, a single infrared panel or dual infrared (head and foot), pulse oximeter and negative-ion unit. Not offered: three-panel infrared, illuminated door, seating upgrades, folding table, PEMF and entry steps.
How is ORION COMPACT different from ORION?
ORION COMPACT is 555 mm shorter, 50 mm narrower and 100 mm lower than ORION, seated rather than reclining, with a built-in sofa, and about 500 kg instead of about 1,185 kg.
What power supply does ORION COMPACT need?
With the standard 10L all-in-one system: 2,000 W, 20 A at 110 V / 60 Hz, or 1,500 W, 8 A at 220 V / 50 Hz. With the optional 20L system and BIBS: 2,700 W, 25 A at 110 V, or 2,500 W, 13 A at 220 V. A local electrician plans a dedicated circuit. Electrical guide.
What does “93% ± 3%” oxygen mean?
It is the oxygen concentration at the concentrator supply. It is not the oxygen level of the air inside the pressurized chamber, and it is not a medical claim. Oxygen systems explained.
Is there a price list for ORION COMPACT?
No. Each chamber is configured and shipped to a specific destination, so quotations are prepared per project and confirmed by our sales team.
Can I order ORION COMPACT in my own colour or with my logo?
Black, white, dark grey and light grey are the standard shell colours; any of the 216 RAL Classic colours can be ordered, and two-tone designs on request. Your own logo is confirmed with your order; private-label (OEM / ODM) projects are welcome, including single units. See the colours, walls and seats.
What warranty and support come with ORION COMPACT?
SkelundTech's company warranty policy is two years; scope, conditions and start date are set in your contract. Support is remote from the factory team — assembly drawings, guidance and after-sales help — and replacement parts are supplied free of charge; if you need them fast, you pay only the express freight. There are no local technicians at present.
