Custom engineering · OEM / ODM
Custom chamber engineering, from appearance to structure.
Change the colour, logo, interior or controls of a standard model — or bring us a site where no standard chamber fits. Our engineers agree the solution with you before anything is built. Single chambers can be customized; design and development fees are quoted per project.
Configure
See what can be customized.
An interactive 3D configurator for exterior colour, lighting, seating and options is in preparation. Until then, the three routes below and the option list show what can change.
3D configurator · coming soon
Exterior colour and finish · lighting colour · seating and interior · entrance and step · main unit and options — rendered in 3D for your approval. Ask us for renderings of your configuration in the meantime.
Three routes
Standard models, your brand, or a chamber engineered for the site.
01
Adapt a standard model
Exterior colour, logo, interior, seating, accessories and the control interface can be designed to your requirements.
- Colour and finish
- Your logo and private label
- Interior and seating
- Control interface (UI)
02
Exclusive appearance
A distinct exterior on a proven platform. Past examples include an illuminated-door ORION and redesigned ARC and VISTA exteriors, each built as a custom project rather than a new catalogue model.
- Custom exterior design
- Renderings for your approval
- Built on an existing chamber platform
03
Structural engineering
Shell shape, length, width and height, entry structure and occupancy can be changed. The solution is agreed between you and our engineers.
- Renderings, 2D drawings and 3D models
- Equipment layout and site preparation notes
- Manufacturing and electrical drawings, per project scope
Engineering projects
Problems our engineers have already solved.
Design-completed projects are engineering work, not models in production. Public pages show anonymised drawings only; full engineering drawings are part of an agreed project scope.
| The problem | The solution | Status |
|---|---|---|
| A standard chamber could not travel by elevator. | ORION COMPACT — a compact 1,450 × 830 × 1,450 mm chamber on wheels, with a separate main unit on wheels. | Production model |

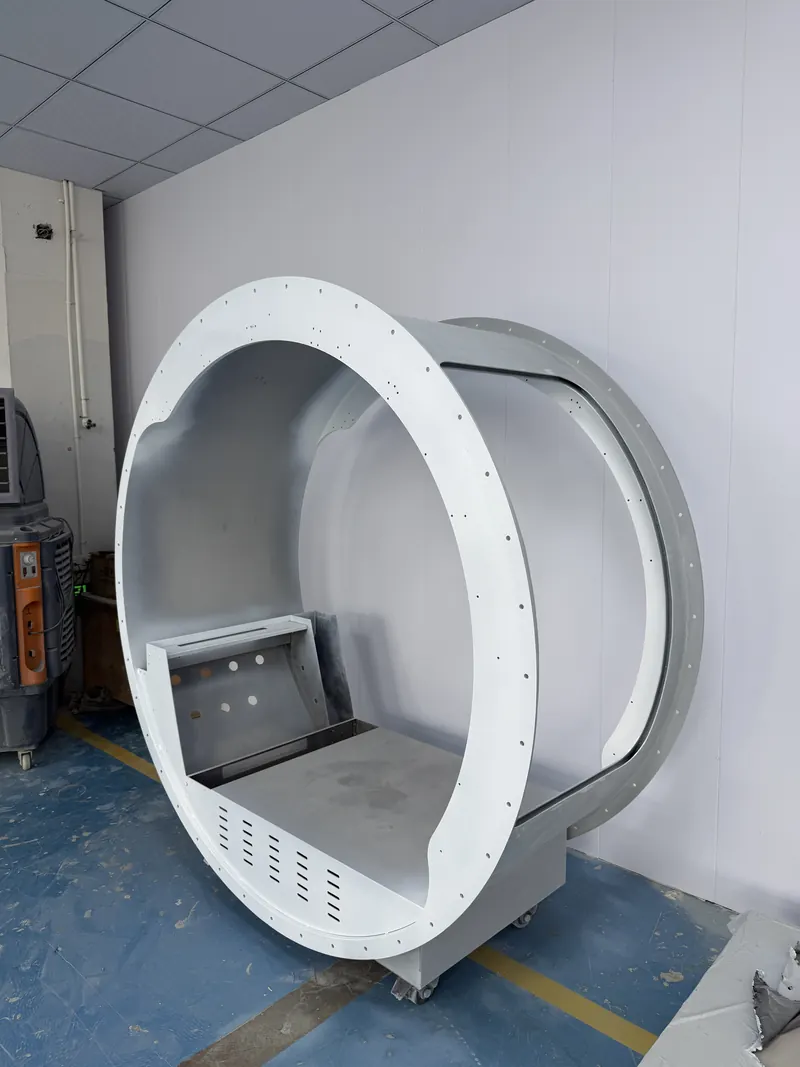

| A chamber as wide as VISTA (1,400 mm) could not follow the route into the building. | LUMEN — left and right modules remove, leaving a 770 mm central body that is reassembled on site. | Production model |
| Entrances too narrow for an upright chamber with fixed side glass. | ARC — both side glass panels remove for an 860 mm handling width, or flat PC windows give 860 mm as built. | Production model |
| Two people in one large hard-shell chamber. | ATLAS — large two-person chamber with two individual seats; design reference 2,270 × 1,060 × 1,850 mm. Optional two NAPA massage seats, 20L + BIBS, illuminated entrance and step. | Design completed |
| A lying chamber had to be carried up stairs. | HORIZON — segmented lying chamber built in flanged sections of about 100 kg each (design target), joined and separated with flange rings. | Design completed |
Case study · United Kingdom
A 2.0 ATA chamber in sections, for a duplex reached by a spiral staircase.
A UK client wanted a 2.0 ATA hard-shell chamber upstairs in a duplex reached only by a spiral staircase. SkelundTech engineered a segmented lying chamber in sections of about 100 kg: flange details, welding, PC window and door tests, 20L + BIBS and a full 2.0 ATA test run. Proposal stage — no order placed; client details withheld.
Read the transcript
A client in the UK wanted a 2.0 ATA hard-shell chamber, upstairs in his duplex apartment. He already owned a 1.5 ATA soft chamber. But the only way up was a spiral staircase, the windows couldn't come out, and a one-piece steel chamber was far too heavy. He sent us his drawings and references: a lying chamber, about 1 m across, built in sections. We engineered a segmented 2.0 ATA design, with sections of about 100 kg each, carried upstairs and assembled on site. He even built a paper model from our renderings, to check the fit. He also saw real stainless-steel sections, and a similar segmented chamber from another project. Bolted flanges join the sections. We showed him every flange detail. Joints are tack-welded, fully TIG-welded and ground, and the door section is reinforced. In a third-party type test to EN 286-1, every applicable welding requirement passed. We showed a forklift driving over a curved PC window, and how the sliding door opens and closes. Plus our 20L oxygen concentrator, the BIBS system, and a full test run at 2.0 ATA. We even added an illuminated step. Tell us about your space. We'll engineer the solution. SkelundTech. Message us to start your custom project.
Deliverables
What you receive, per project scope.
- Renderings — exterior visuals of the proposed chamber for your approval
- 2D drawings and 3D models — dimensions and form for planning and sign-off
- Equipment layout — where the chamber, main unit and connections sit in your room
- Manufacturing and electrical drawings — per project scope
- Site preparation notes — route, floor and power points to prepare before delivery
How it works
From site problem to built chamber.
- What we need from you
What the chamber is for and how many people use it; the route — narrowest doors, turns, stairs and lifts; the room, floor level and available power; appearance, branding and interior wishes.
- What to expect
Single chambers can be customized. Design and development fees are quoted per project. A solution is confirmed only after engineering review.
- Build and deliver
Assembly drawings are supplied; you arrange a local team, or factory assembly can be agreed as a paid service.
Get a quote
Describe your project.
The room, the route and what the chamber is for. Our engineers review it and come back with a proposal.
