Accessories & options · hard-shell chambers
What is standard, and what you can add.
Every SkelundTech hard-shell chamber ships with the same core equipment. Everything else — the 20L all-in-one with BIBS, infrared panels, the PEMF seat, NAPA seating, monitoring, the illuminated door and entry steps — is an option, quoted with the chamber and confirmed by our engineers for your model. Prices are quoted per project.
Oxygen system explained
What is BIBS, and why 20L?

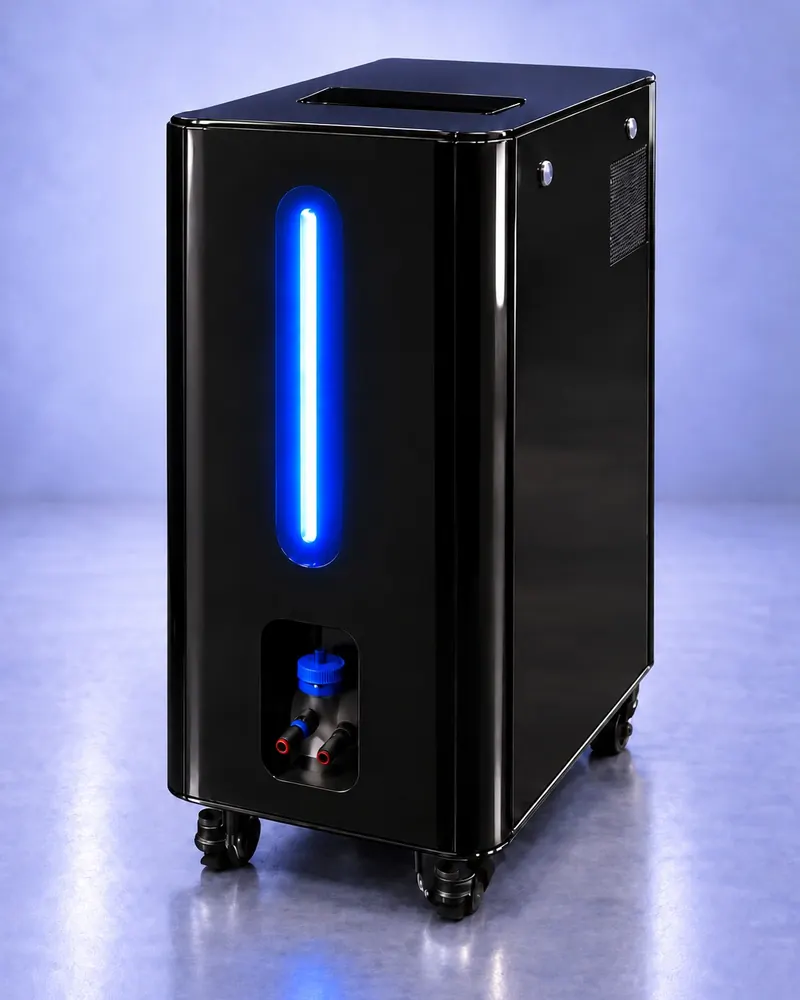

BIBS stands for Built-In Breathing System: a mask with an oxygen line in and an exhaust line that carries exhaled air out of the chamber, so the user breathes the supply directly and the cabin air stays fresher. Our BIBS switches to standard mode with one switch. It runs on the 20L all-in-one unit — two 10L concentrators and three air compressors against one concentrator and two compressors in the 10L unit — which doubles the oxygen output.
Included with every hard-shell chamber
Nothing here is an upgrade.
In the crate
Delivered with every hard-shell chamber, besides the chamber, its all-in-one main unit and the options on your order.
Accessories
- 2 × oxygen masksStandard oxygen masks; the BIBS mask is part of the optional 20L system.
- 2 × headsetsTwo headsets, packed with every chamber.
- 2 × door sealsTwo door seals in the crate, so a replacement is on hand.
Documents

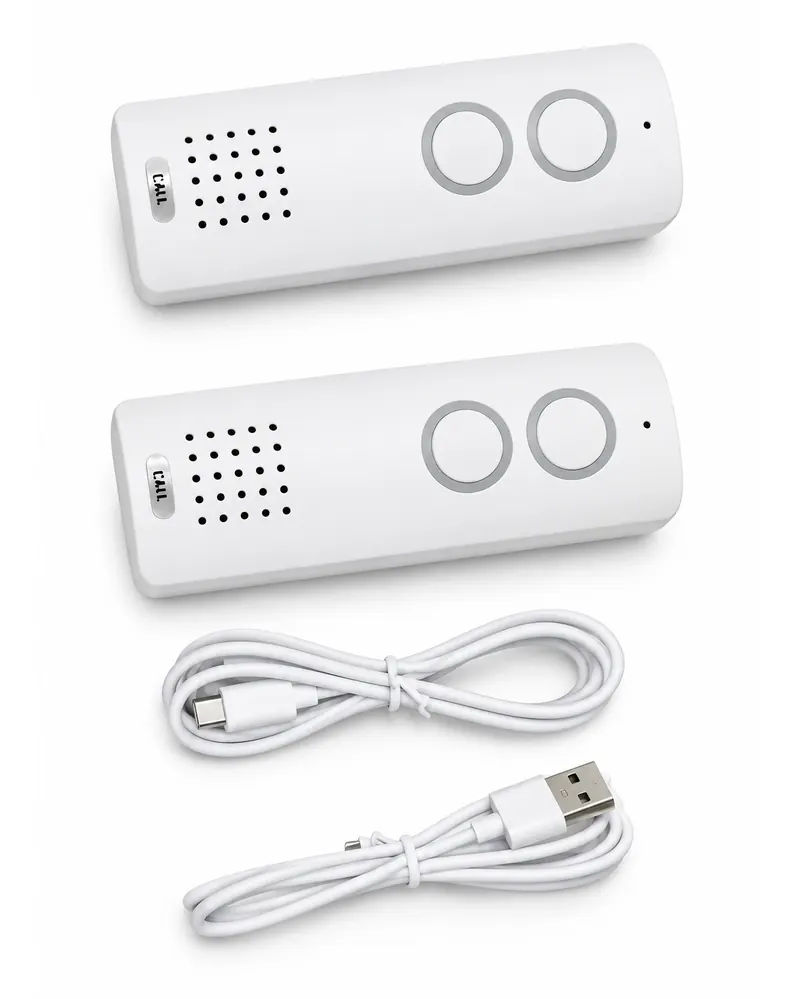

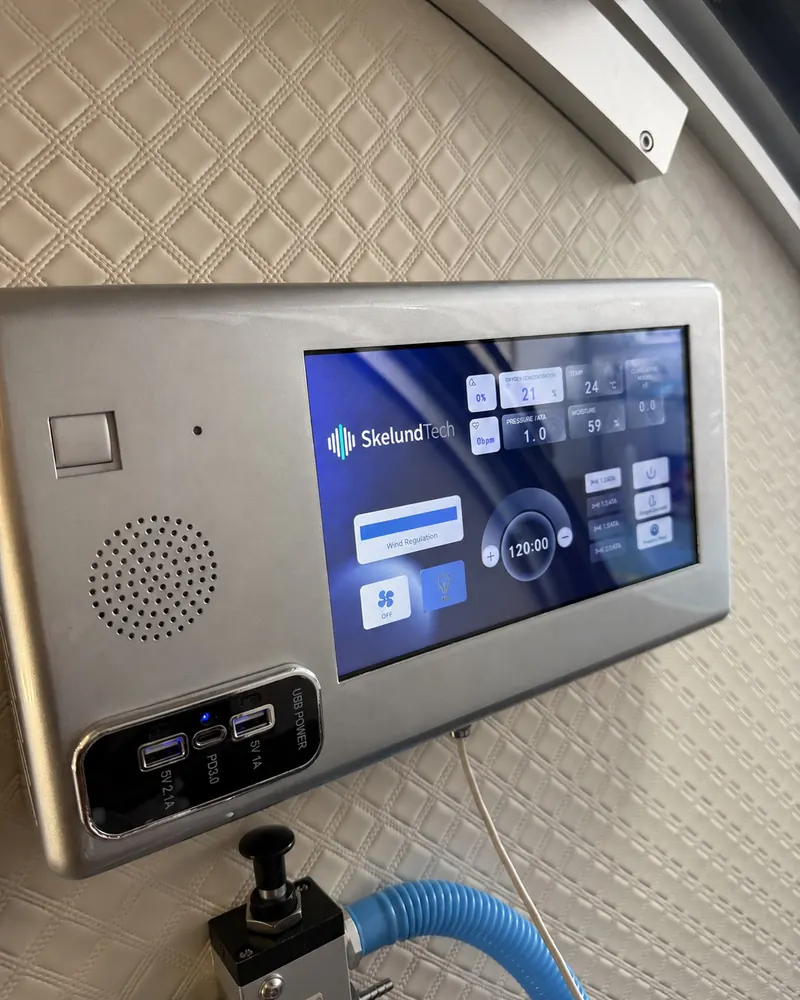

- Operation manualHow to run a session, the touch panels and the intercom.
- Product manualSpecifications, connections and the main unit.
- Maintenance manualChecks, consumables and how to replace the parts you can change yourself.
- Company profileWho we are and what we make.
Hard-shell chamber spec sheet, drawings and brochure
We send model documents to buyers directly rather than publishing them for download: the specification sheet and brochure of each model you shortlist, dimensioned drawings for your access route, plus copies of the quality documents that cover your model and destination. Tell us the model and your country and the team sends them the same working day (China Standard Time).
Options
Available to add.
Each option can be ordered on its own. Model availability is shown on each card and in the table below.
Options on video
Add-ons, colours, walls, seats and light — shown with the chamber.
Short explainers filmed with our chambers: six add-ons (pulse oximeter, negative-ion unit, illuminated door and more), the shell colours, the three interior walls, the four seating options, what red and infrared light mean with the three LED panel setups, and how the PEMF seat is built. Players load only when you press play.
Read the interior walls transcript

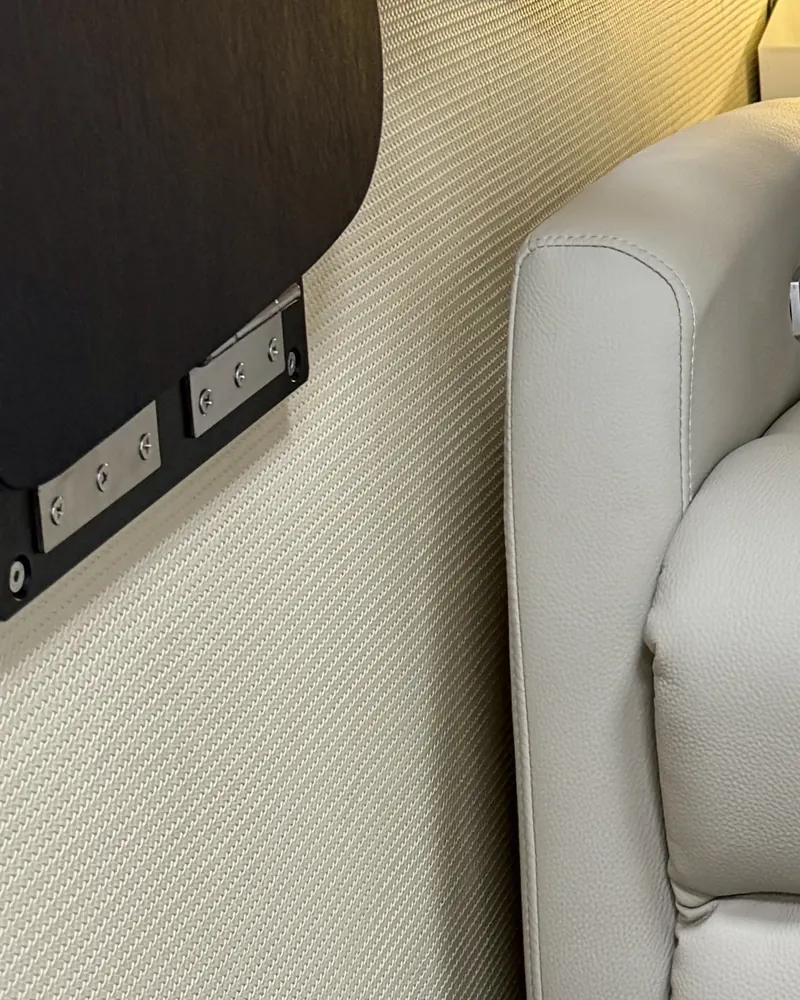

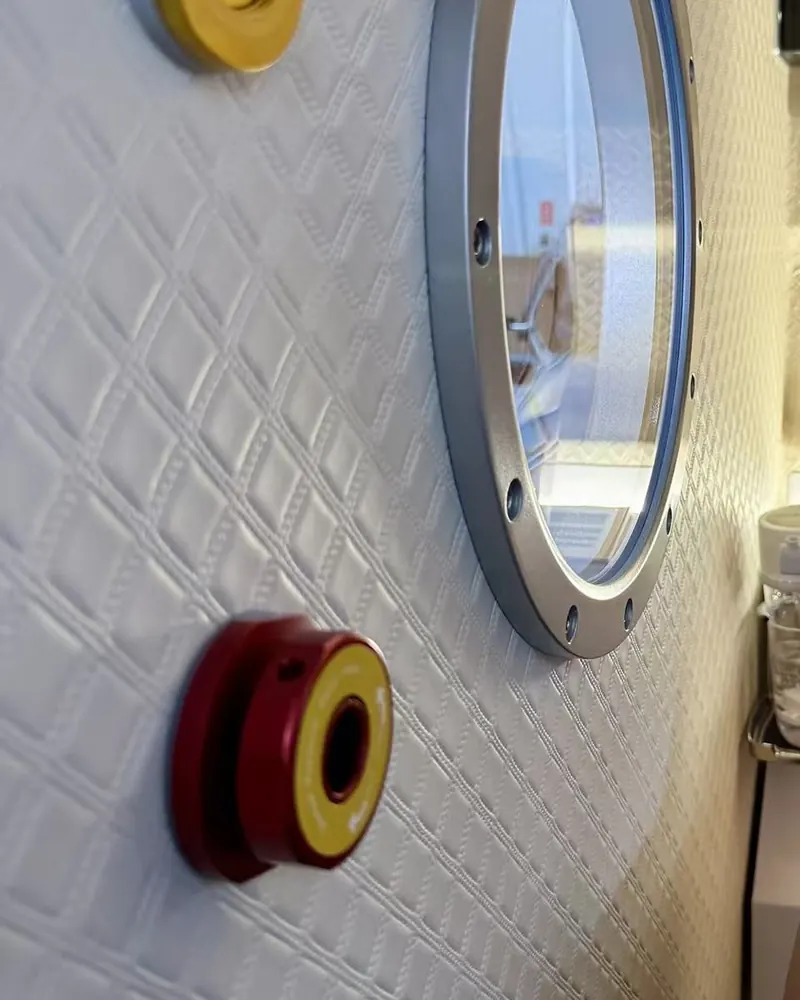

Which wall finish fits your chamber? SkelundTech offers 3 interior walls. Option one: the Basic Wall, in woven leather. It fits all our chambers. Standard colors are black, apricot and beige. Or choose from 24 woven colors. Option two: the Luxury Leather Wall for LUMEN, VISTA and ARC. Soft, padded leather with diamond quilting. Black, apricot or beige as standard, plus 10 more quilted finishes. Option three: the Luxury Leather Wall for ORION, with quilted diamonds. Again, black, apricot or beige, or one of 26 custom colors. For other colors, contact our sales team. Tell us your chamber model, and we'll help you choose the right wall. SkelundTech. Message us to configure your chamber.
Read the seating options transcript

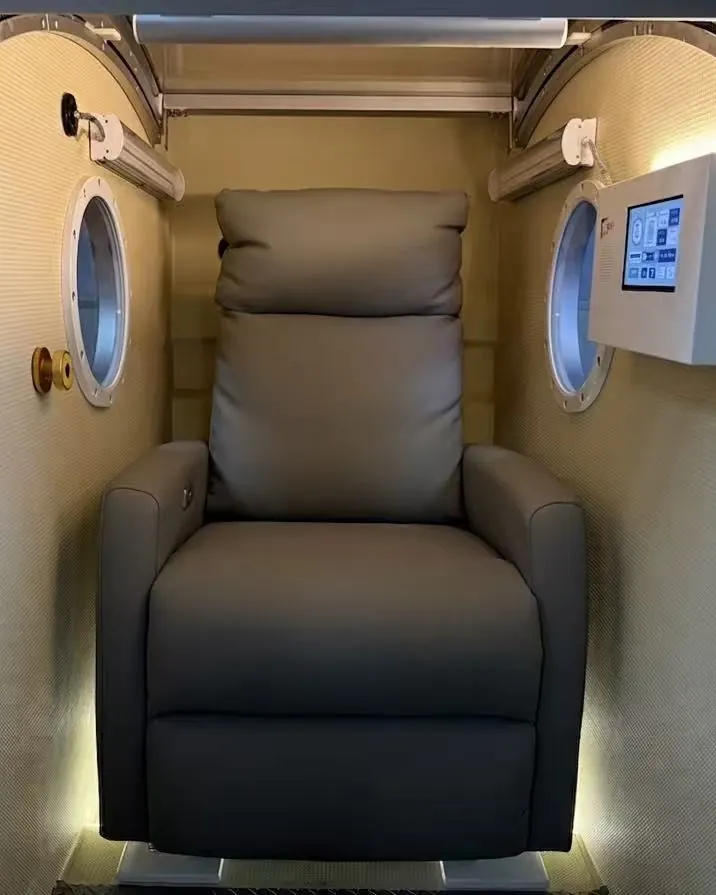

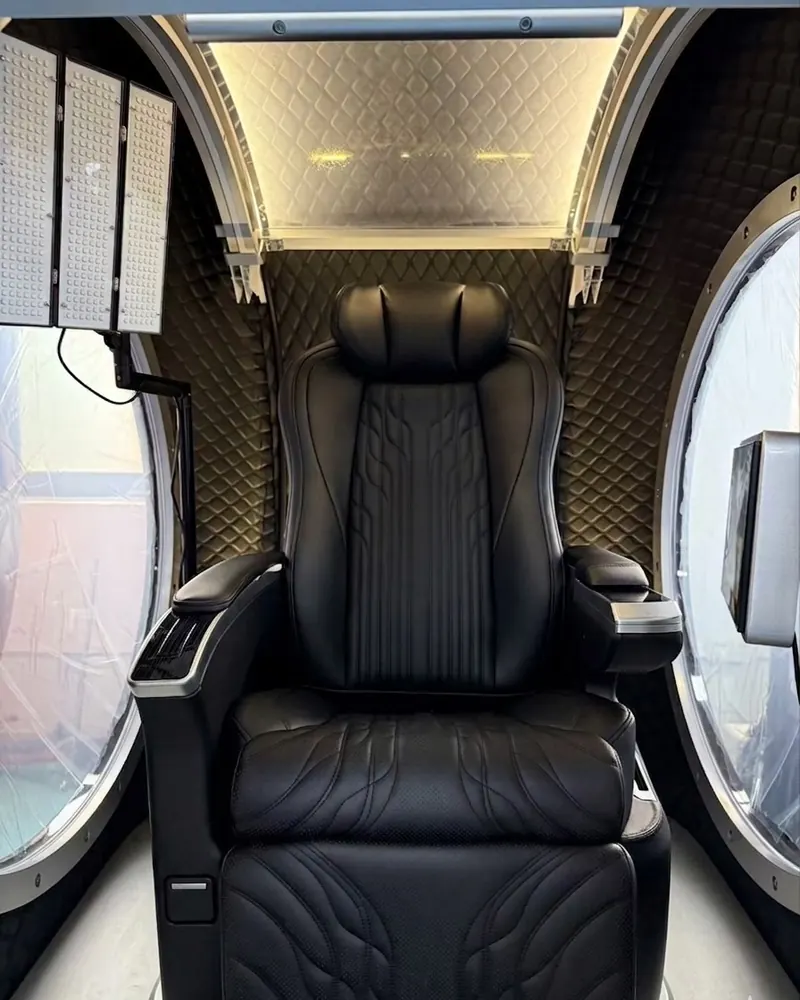

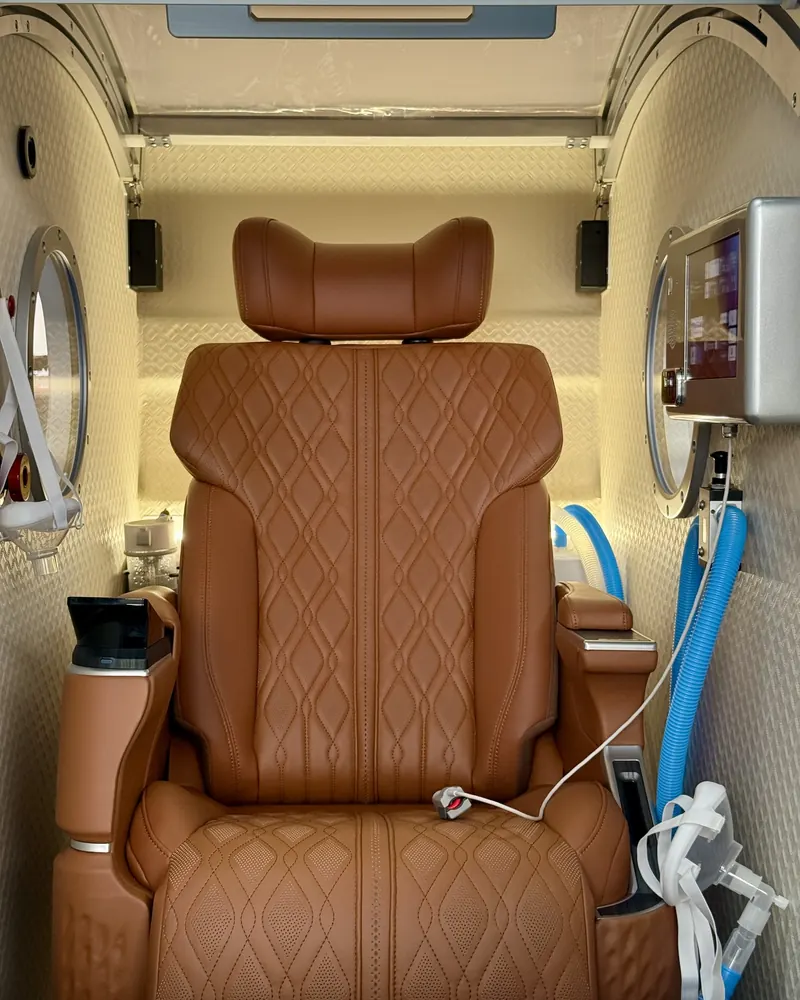

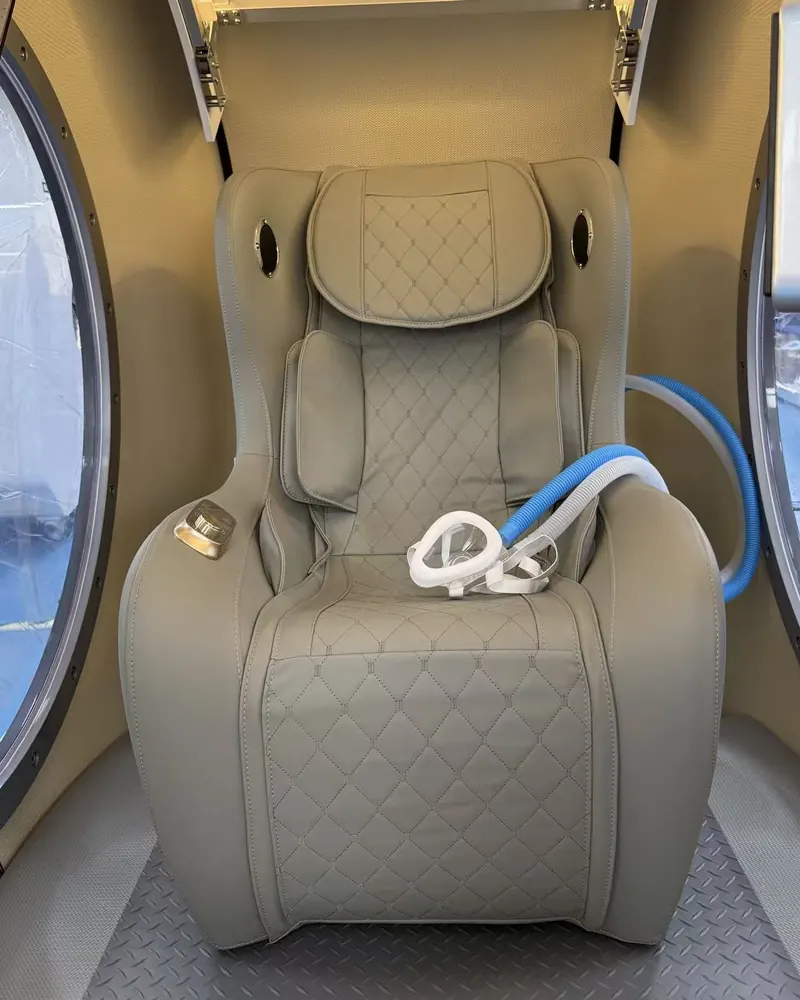

Choosing a seat for your chamber? SkelundTech offers 4 seating options. Option one: the Standard Chair, in eco cowhide leather. 4 standard colors: black, dark grey, mid grey and light grey. Want another shade? Choose from 9 more eco cowhide colors. It also comes as a two-seater. Option two: the Upgraded Chair, with a quilted high back. It comes in one finish, as shown. Option three: the NAPA Massage Chair. It's electric, with massage and a footrest, and it can semi-recline. Standard colors are black, brown and white. Or choose from 57 custom NAPA colors. Just contact our sales team. Option four: the Flagship NAPA Chair, with a fold-out desk, in black as standard. Control it from the touchscreen, and fold the desk out when you need it. For other colors, contact our sales team. Seating options depend on the chamber model. Tell us your model, and we'll help you choose. SkelundTech. Message us to configure your chamber.
Read the red & infrared light transcript

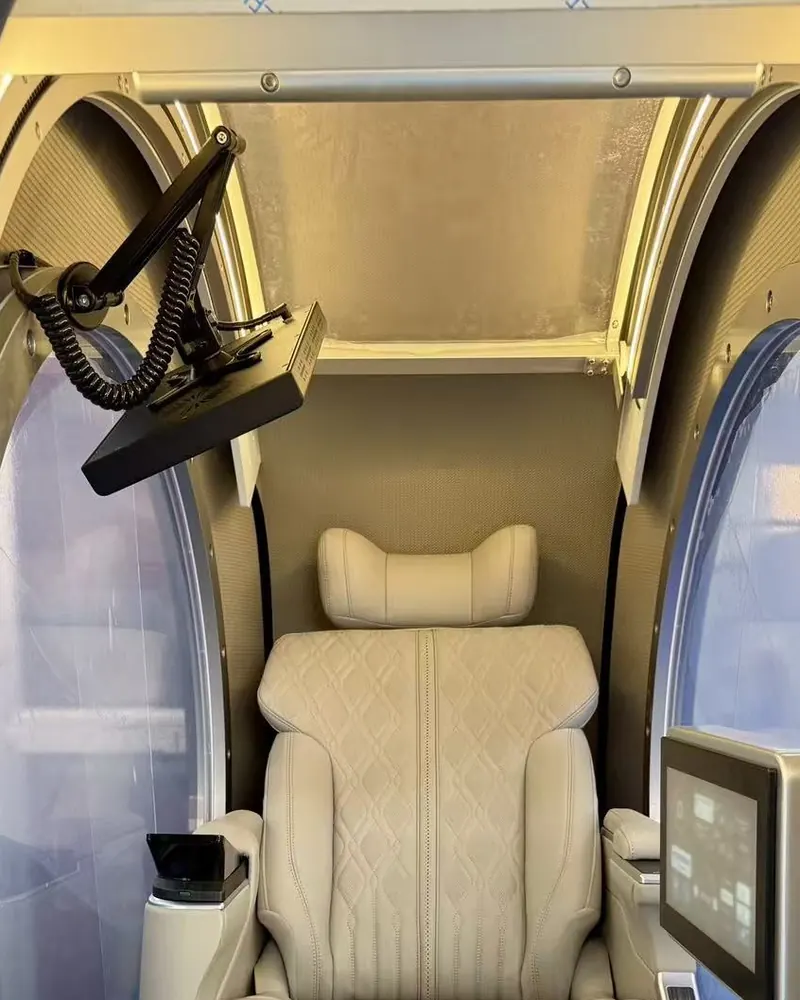

Red light. Infrared light. What do they actually mean? Every colour of light has a wavelength, measured in nanometers. We can see from about 400 to 700 nm. Blue is short, around 470 nm. Green, around 520. Yellow and orange, around 600. Red is the longest we can see: about 620 to 700 nm. Past 700 nm is near-infrared. It's invisible to the eye, so you can't see it, even when it's on. Much further out is far-infrared, which you feel mostly as heat. So when a panel lists 660 nm, or 850 nm, that's red, and near-infrared. Our LED panels switch between visible colours, and they carry near-infrared LEDs as well. In our chambers, they come in three setups. One. The 3-panel light, for VISTA and LUMEN only. It's mounted on an arm, and switches between colours. Two. A single-panel light, with its controls right on the panel. Three. Two single panels: one at the head, and one at the feet. SkelundTech. Message us, and we'll match the light setup to your model.
Read the PEMF seat transcript
This LUMEN has PEMF built into its seat. So, what is PEMF? PEMF stands for Pulsed Electromagnetic Field. Electric pulses run through a flat coil, and each pulse creates a short magnetic field around it. The pulse rate is measured in hertz. These are the PEMF coil pads. We fit them into the seat back, under the padding and leather. Then we connect the wiring inside the seat frame. We test the coil on the bench first. The small ball in this tester moves when the field is on. Then we test again on the finished seat, right through the leather. The controller sets the pulse rate. Here, from 18 up to 27.5 Hz. If you have a pacemaker or another implant, or you're pregnant, check with your doctor first. SkelundTech. Ask us about a PEMF seat for your LUMEN.
Availability by model
Which option fits which chamber.
| Option | LUMEN | VISTA | ARC | ORION | ORION COMPACT |
|---|---|---|---|---|---|
| 20L all-in-one + BIBS | Optional | Optional | Optional | Optional | Optional |

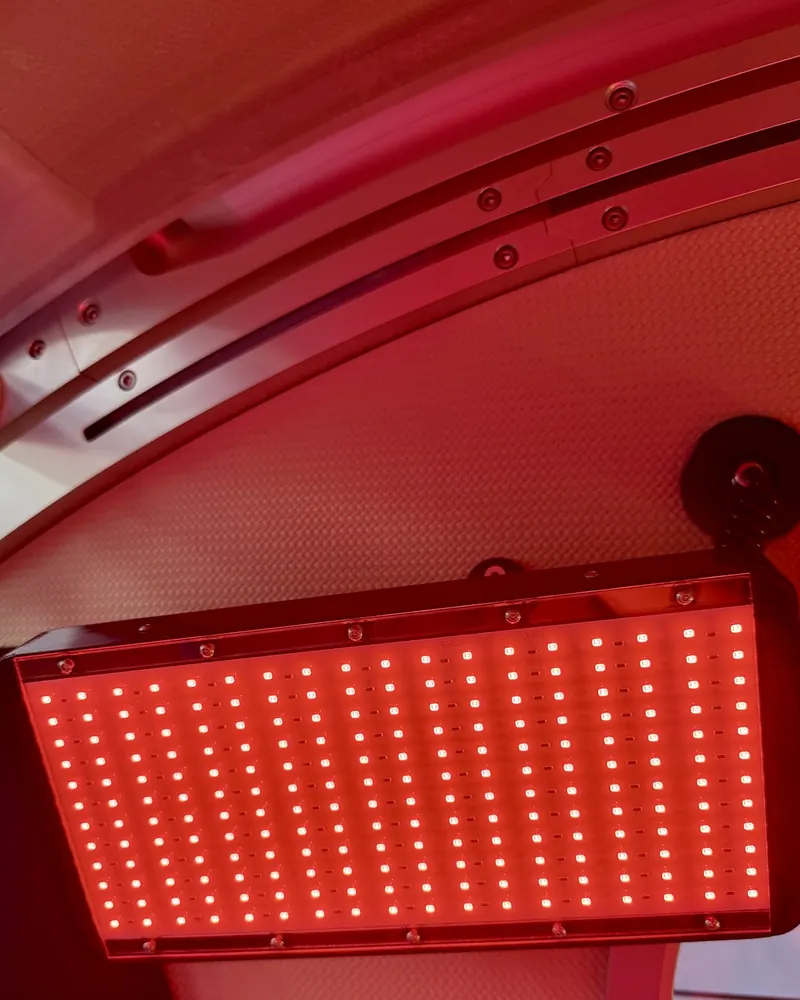

| Single infrared panel | Optional | Optional | Optional | Optional | Optional |
| Dual infrared panels (head + foot) | Optional | Optional | Optional | Optional | Optional |

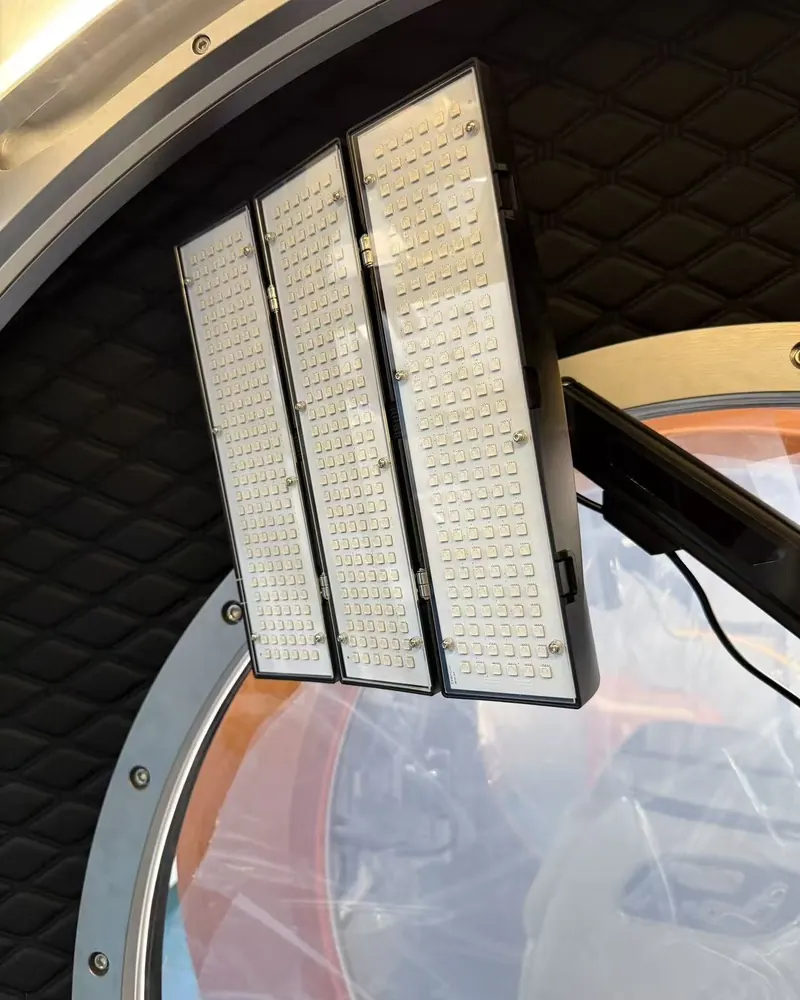

| Three-panel infrared light | Optional | Optional | Not offered | Not offered | Not offered |

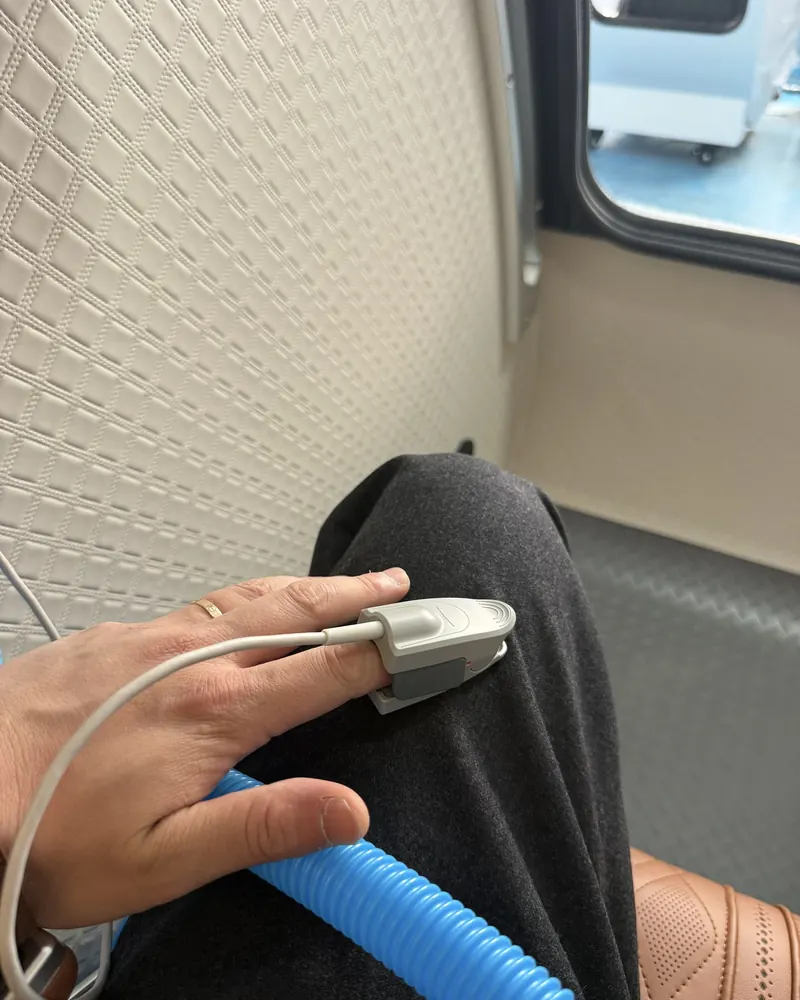

| Pulse oximeter | Optional | Optional | Optional | Optional | Optional |

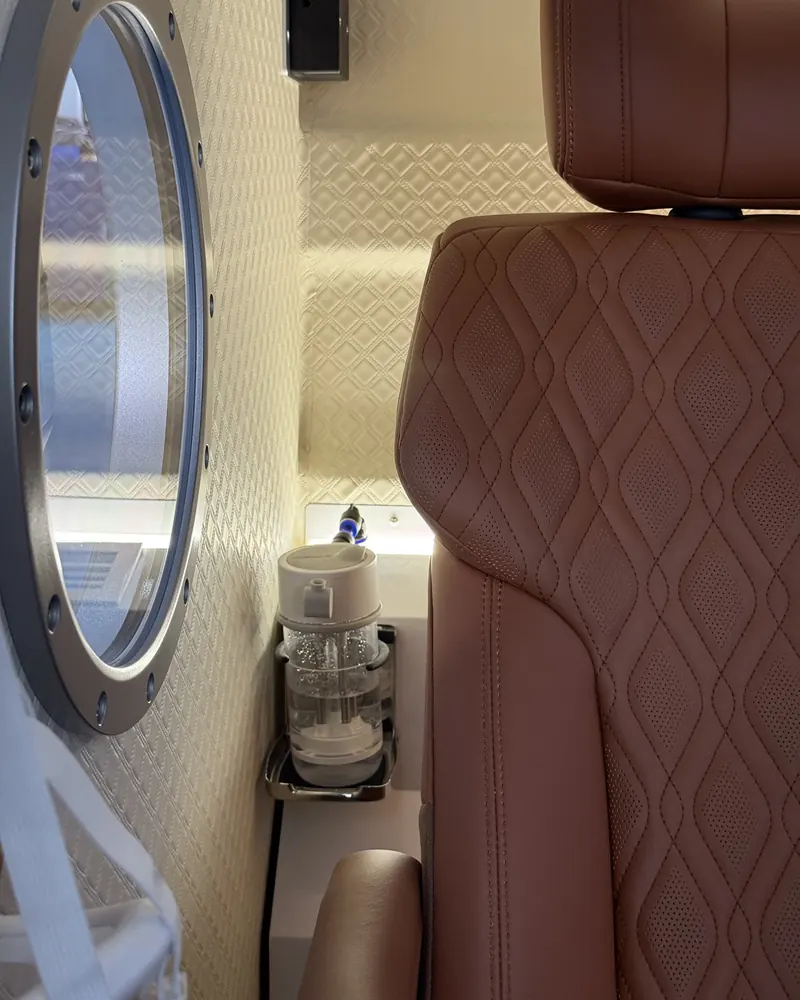

| Negative-ion unit | Optional | Optional | Optional | Optional | Optional |
| Seating upgrade | Optional | Optional | Optional | Optional | Not offered |

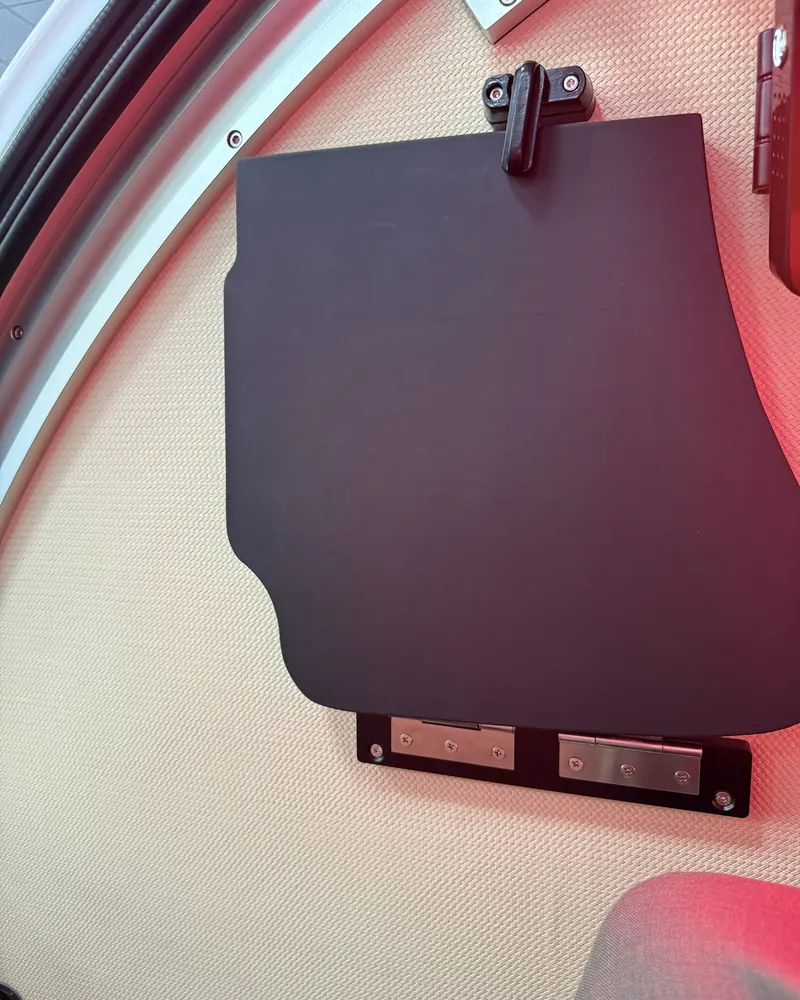

| Folding table | Optional | Optional | Optional | Optional | Not offered |
| PEMF seat system | Optional | Optional | Optional | Optional | Not offered |
| Plain entry step | Optional | Optional | Optional | Optional | Not offered |

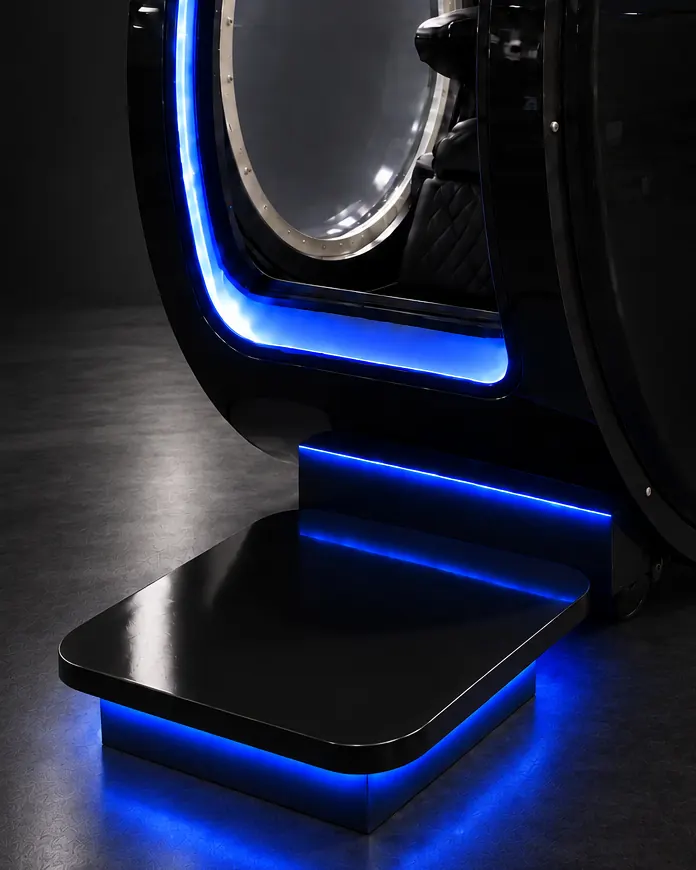

| Illuminated entry step | Optional | Optional | Optional | Optional | Not offered |

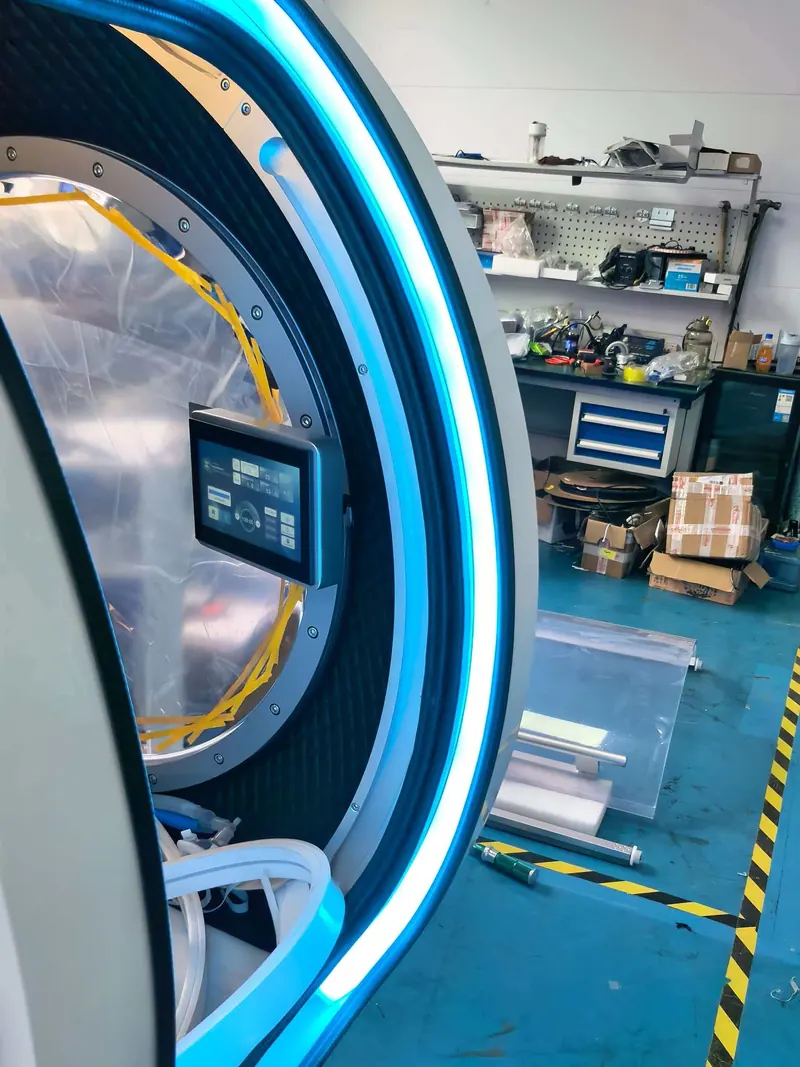

| Illuminated door | Optional | Not offered | Not offered | Optional | Not offered |

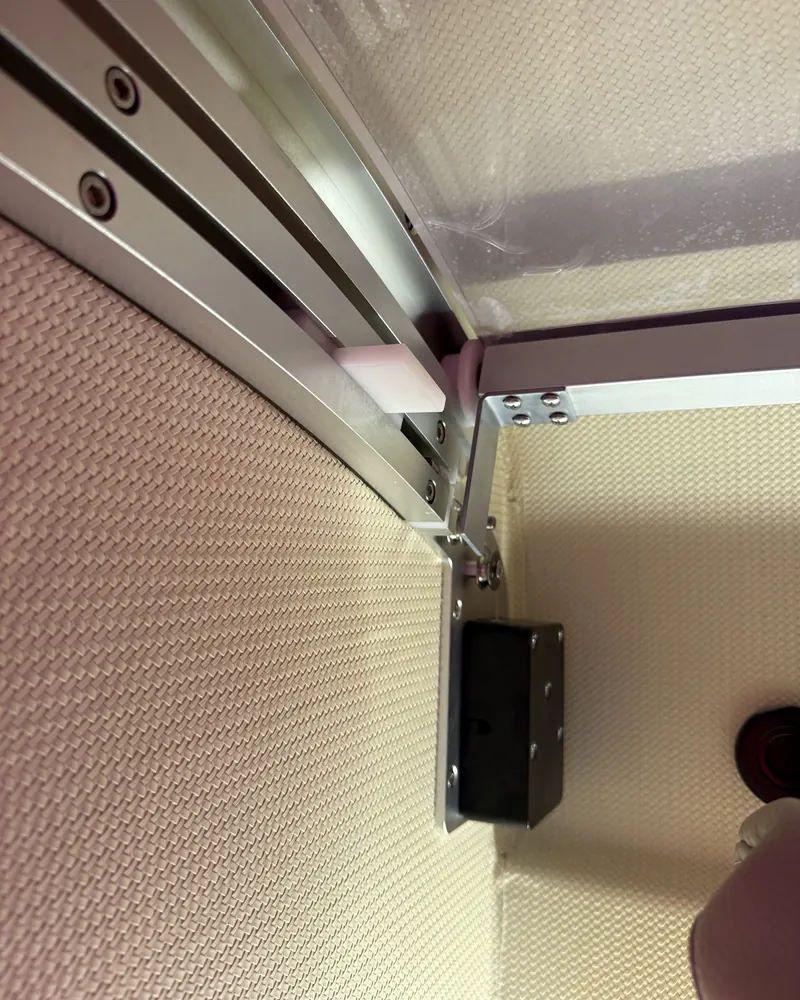

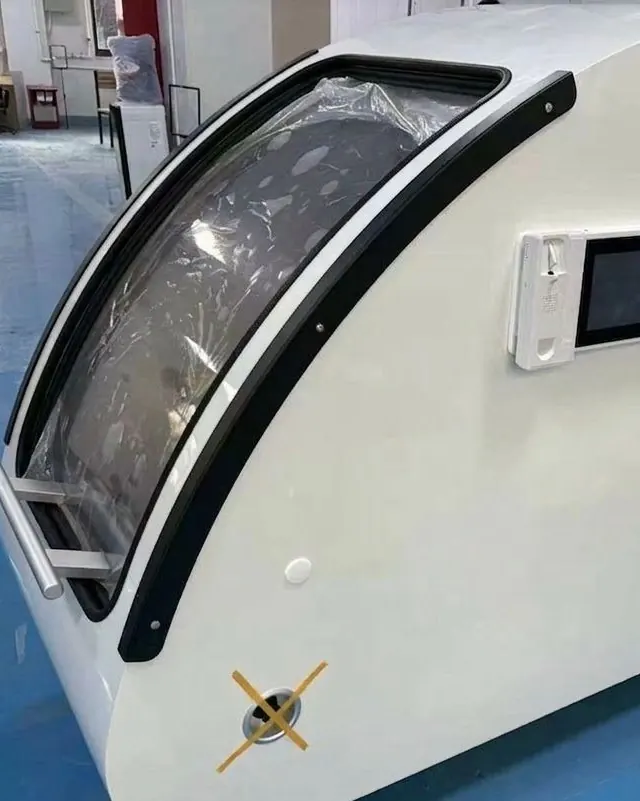

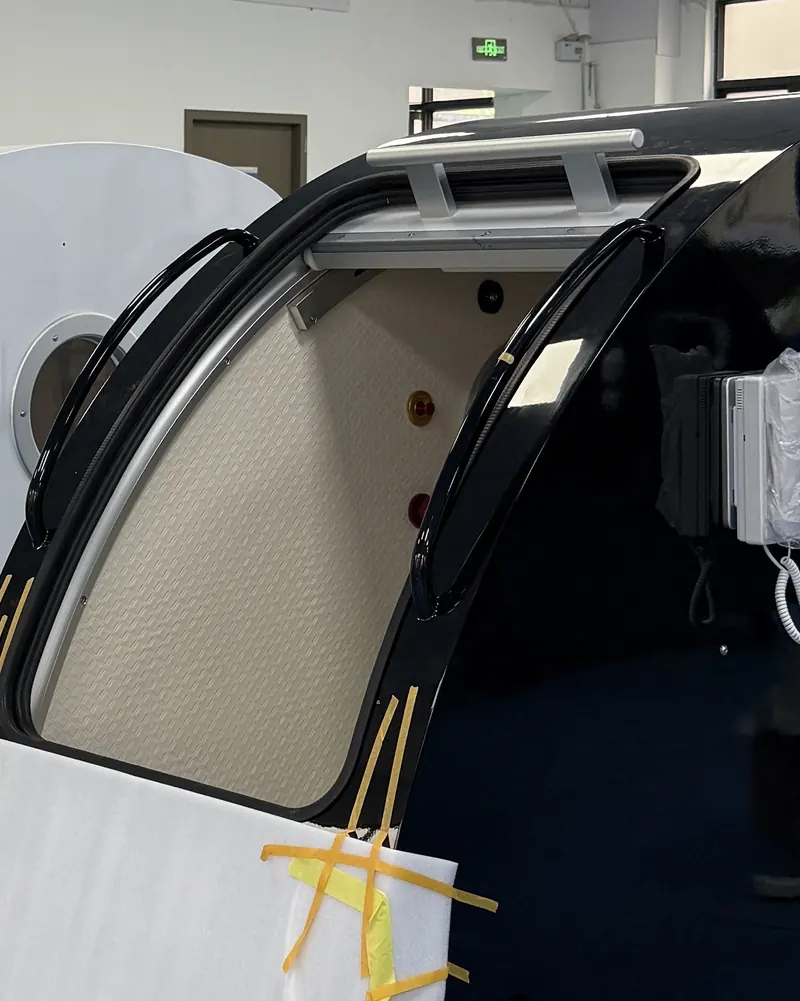

| Leather wall lining · metal handle · aluminium strip · door position limiter | On request | On request | On request | On request | On request |
Seating
PEMF, built into the seat.
Coil pads are fitted into the seat back under the padding and leather, wired inside the seat frame, bench-tested and tested again through the finished seat. The controller sets the pulse rate — in the video from 18 up to 27.5 Hz. Optional on LUMEN, VISTA, ARC and ORION.
Get a quote
Build your option list.
Tell us the model and the options you have in mind. We confirm fit, combinations and the power version, and quote everything together.
