2.0 ATA hard-shell hyperbaric chamber · Seated, upright
Circular form. Considered access.

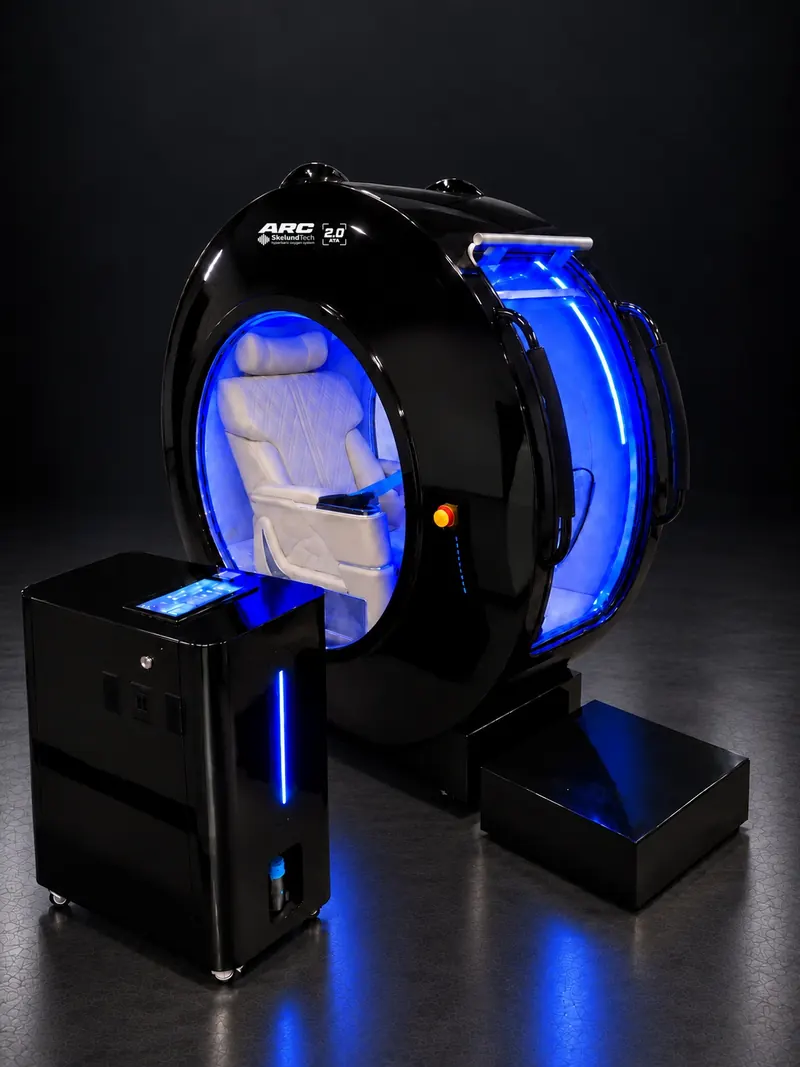

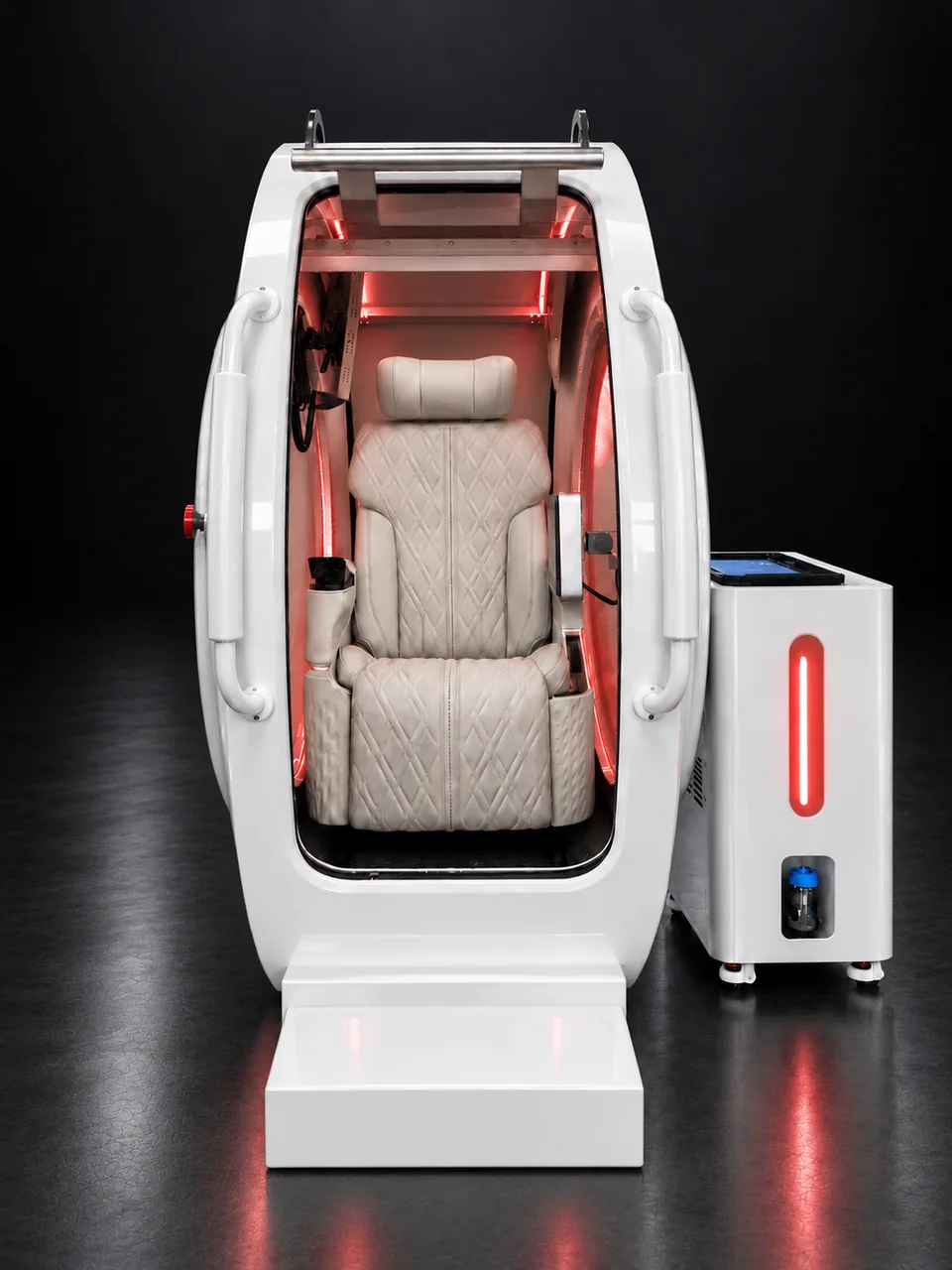

ARC is a single-person upright hard-shell chamber at 2.0 ATA, 1,780 × 980 × 2,000 mm and about 720 kg. It was developed for narrow entrances: both side glass panels can be removed for handling, or the chamber can be built with flat PC windows at 860 mm overall.
- Pressure
- 2.0 ATA
- Occupancy
- 1 person, seated upright
- Size L × W × H
- 1,780 × 980 × 2,000 mm
- Chamber weight
- ≈ 720 kgexcl. main unit
- Narrowest width
- 860 mmside glass removed, or flat PC window version
- Main unit
- 10L all-in-onewith air conditioning
Video
Watch ARC — right here.
Press play to watch our ARC walkthrough without leaving this page. The player is YouTube's own, loaded in privacy-enhanced mode only when you press play.
Smaller footprint, full height
An upright seat in 1,780 × 980 mm, 2,000 mm high — the compact way to offer a seated 2.0 ATA session.
Two ways through a narrow entrance

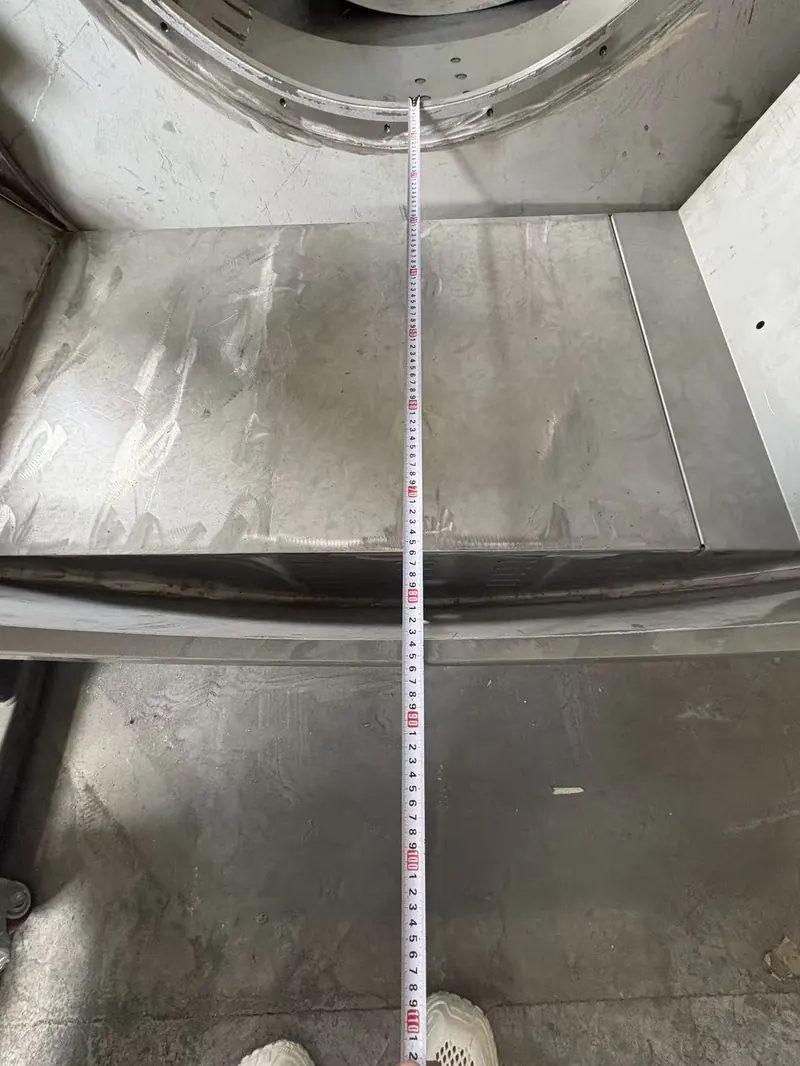

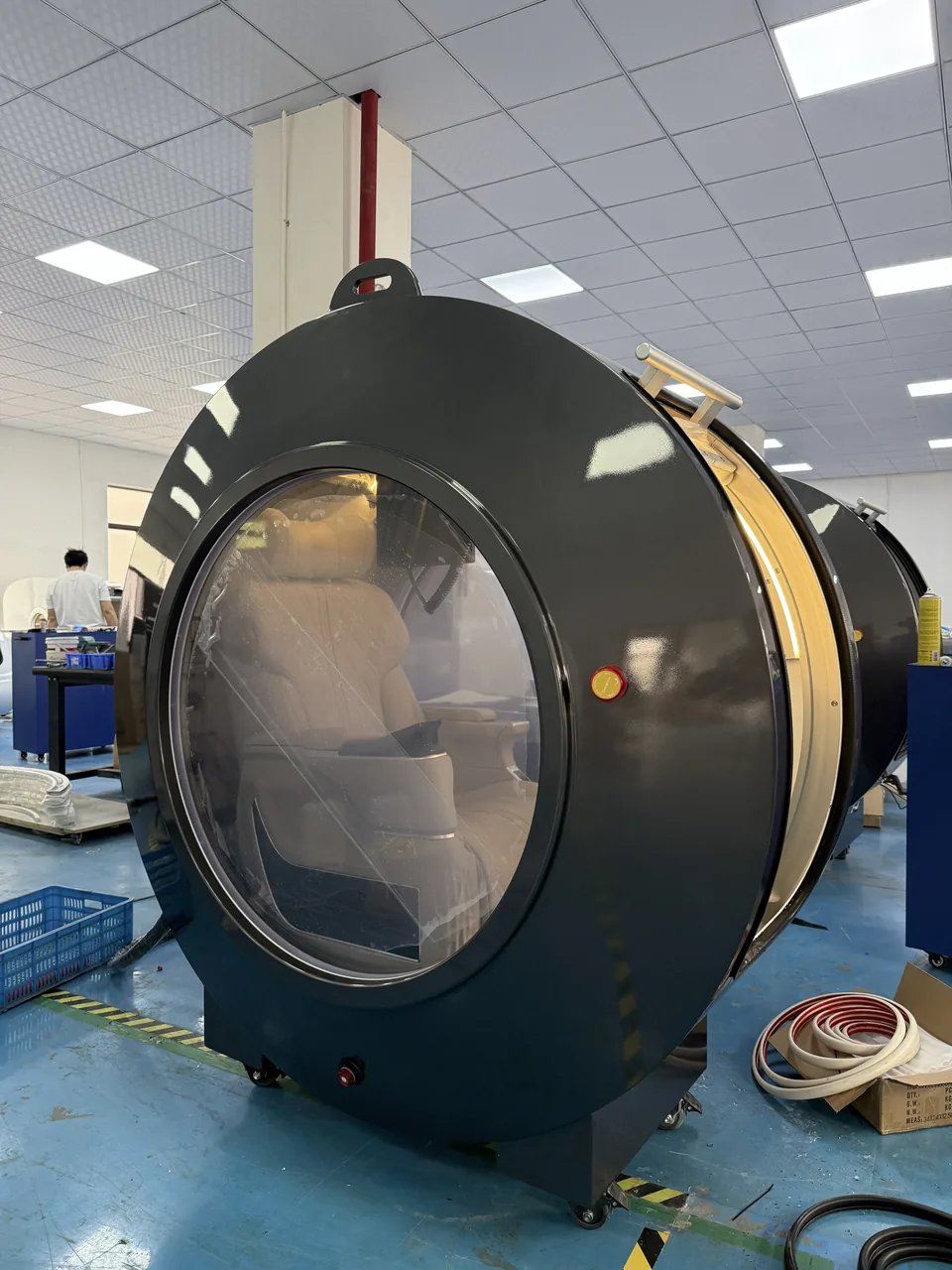

Remove both side glass panels for 860 mm, or order the flat 50 mm PC window version at 860 mm as built.
About 720 kg
The lightest of the three upright models, excluding the main unit and packaging.
Options
NAPA massage sofa, folding table, PEMF, single or dual infrared, pulse oximeter, negative-ion unit, 20L + BIBS and entry steps. Three-panel infrared and the illuminated door are not offered.
More videos on our YouTube channel. Optional equipment may be shown.

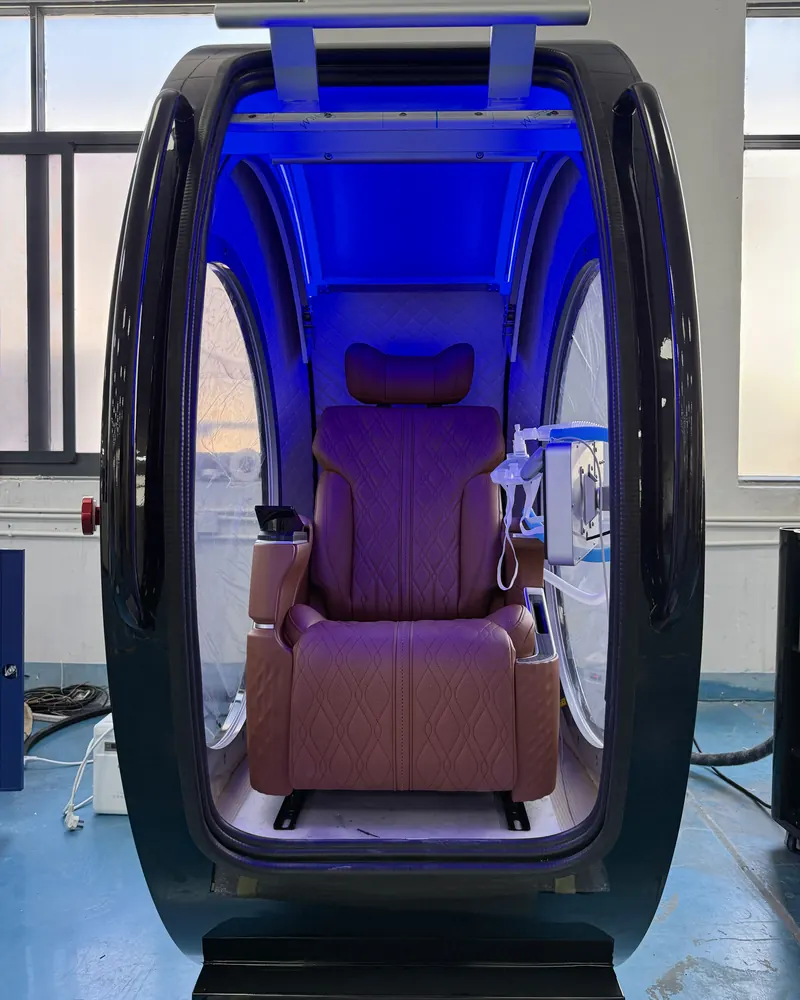

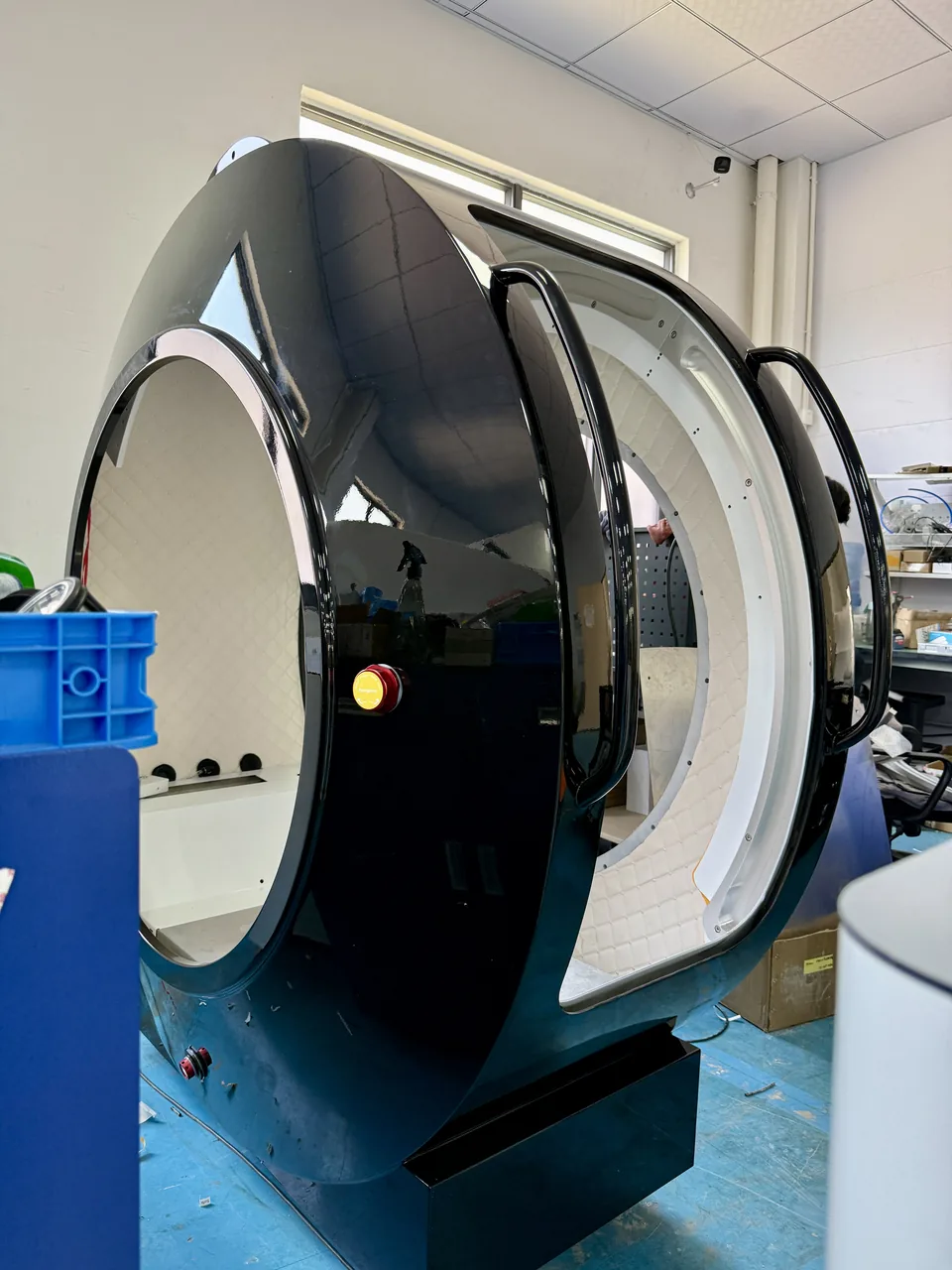

Gallery

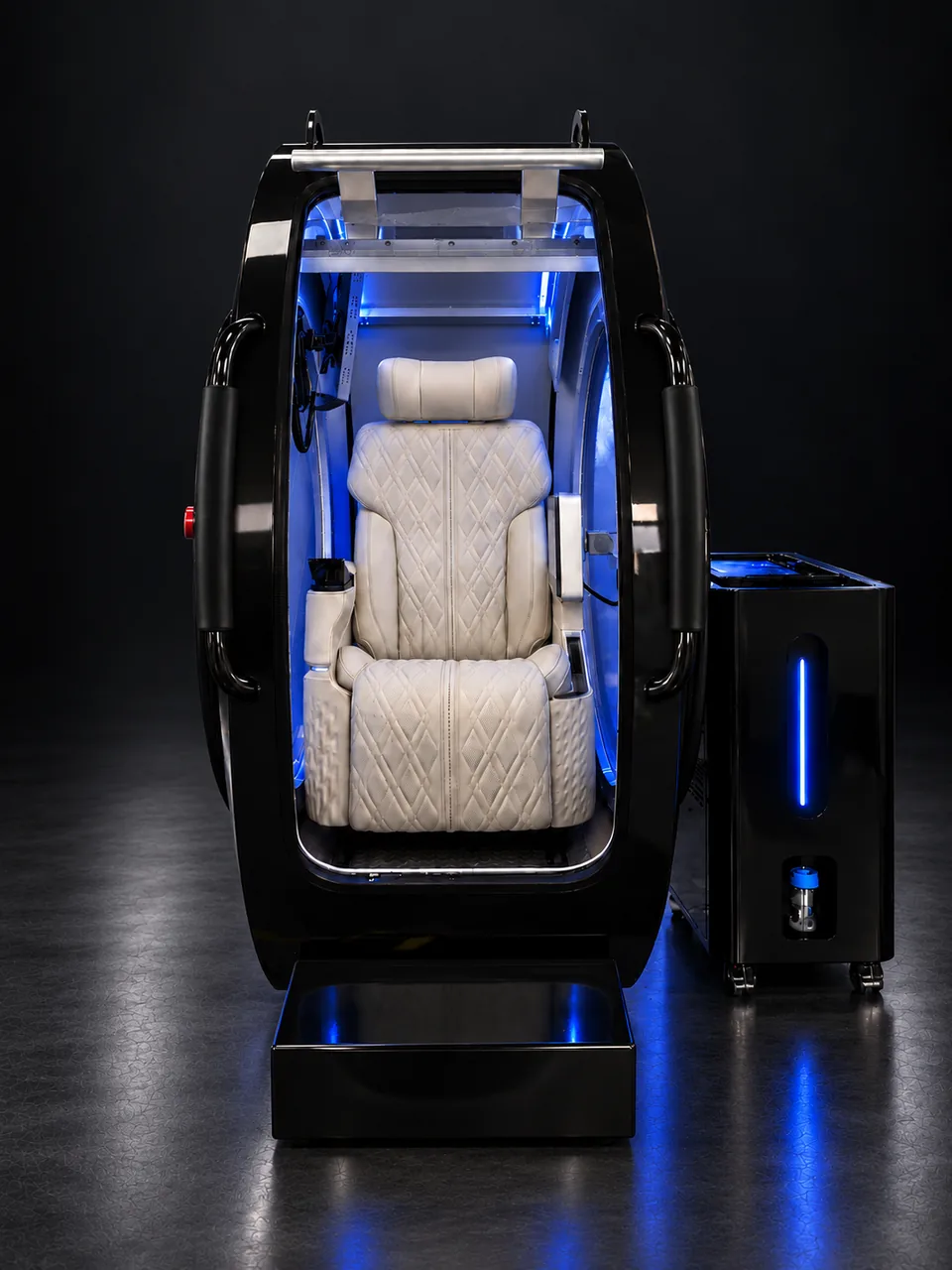

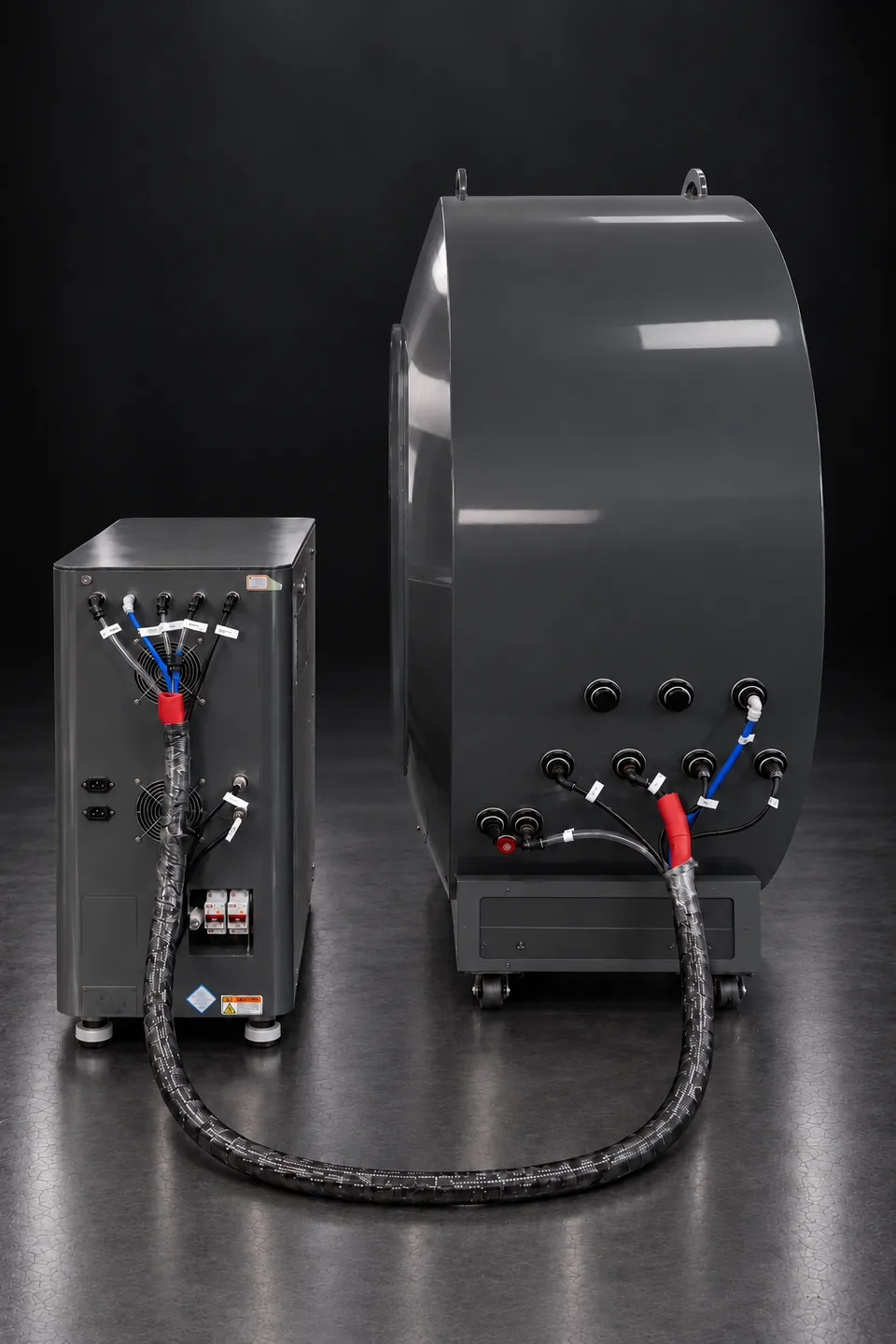

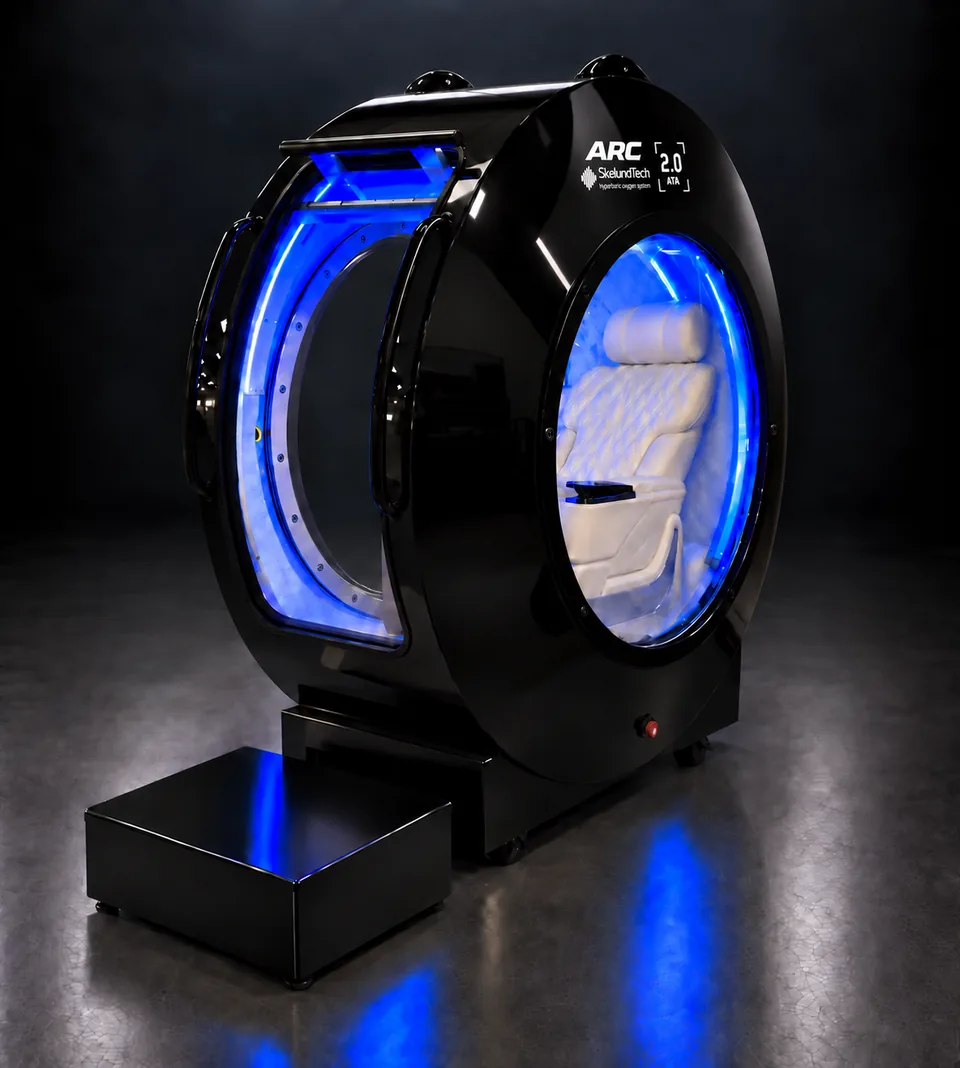

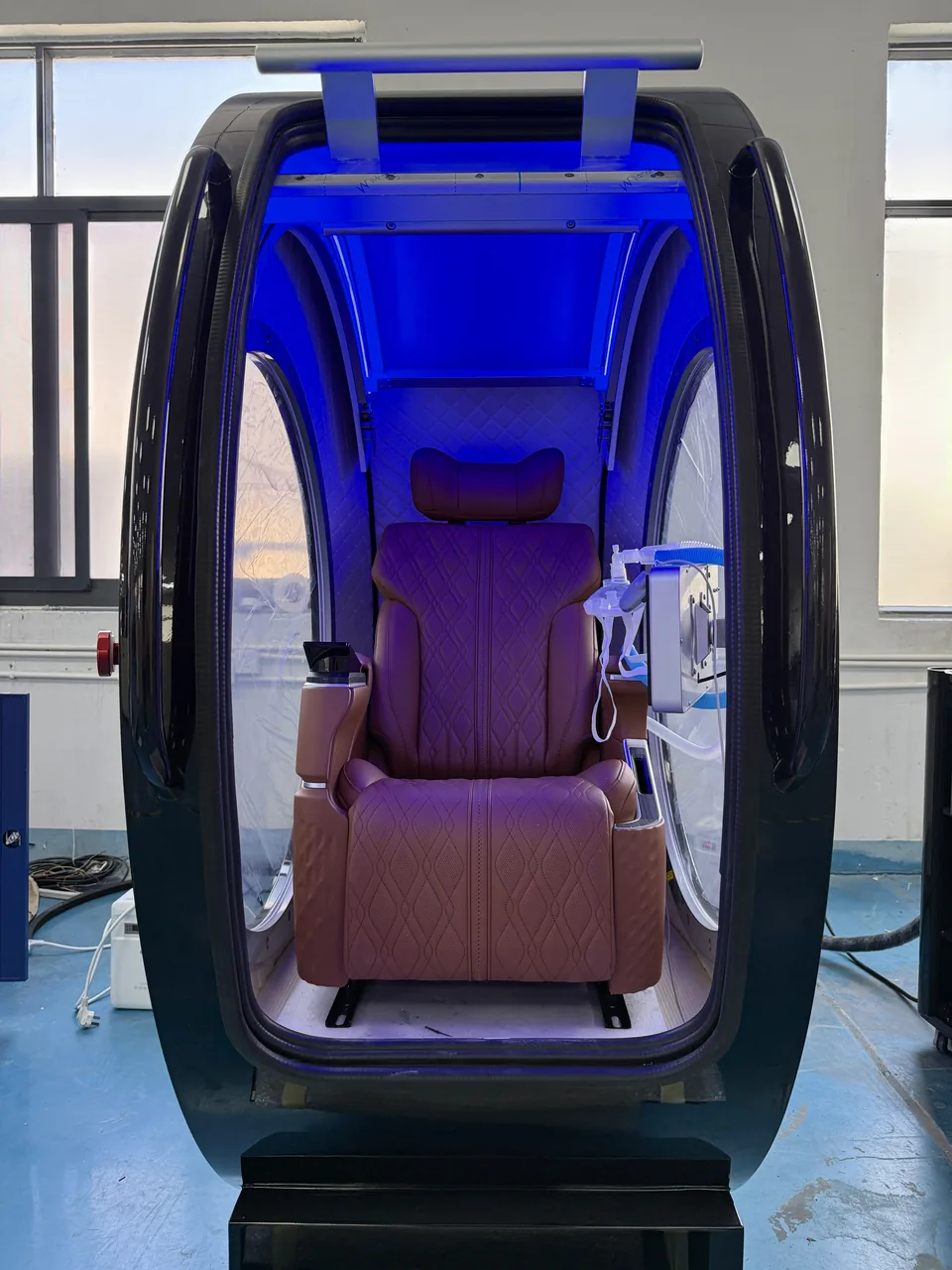

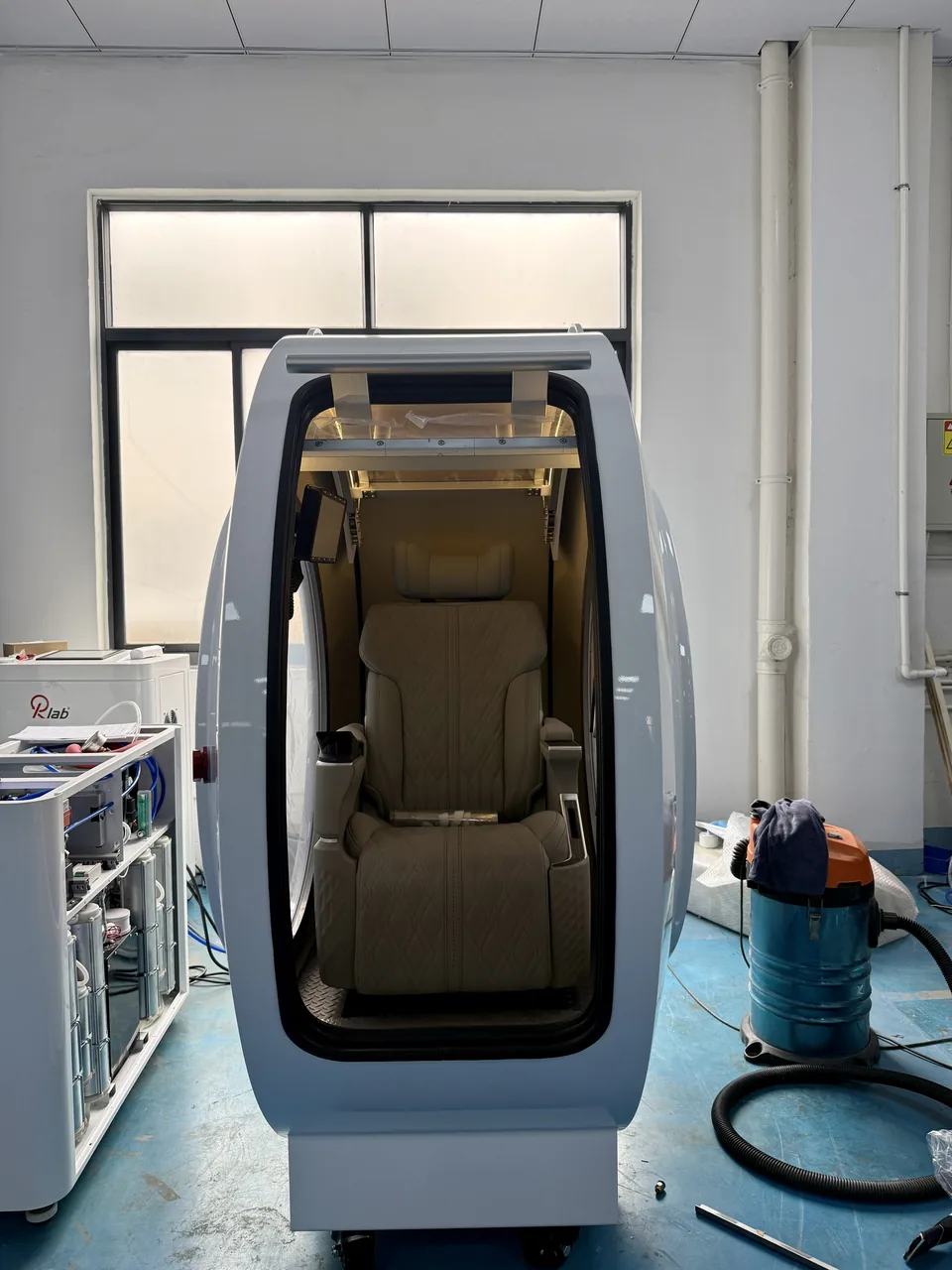

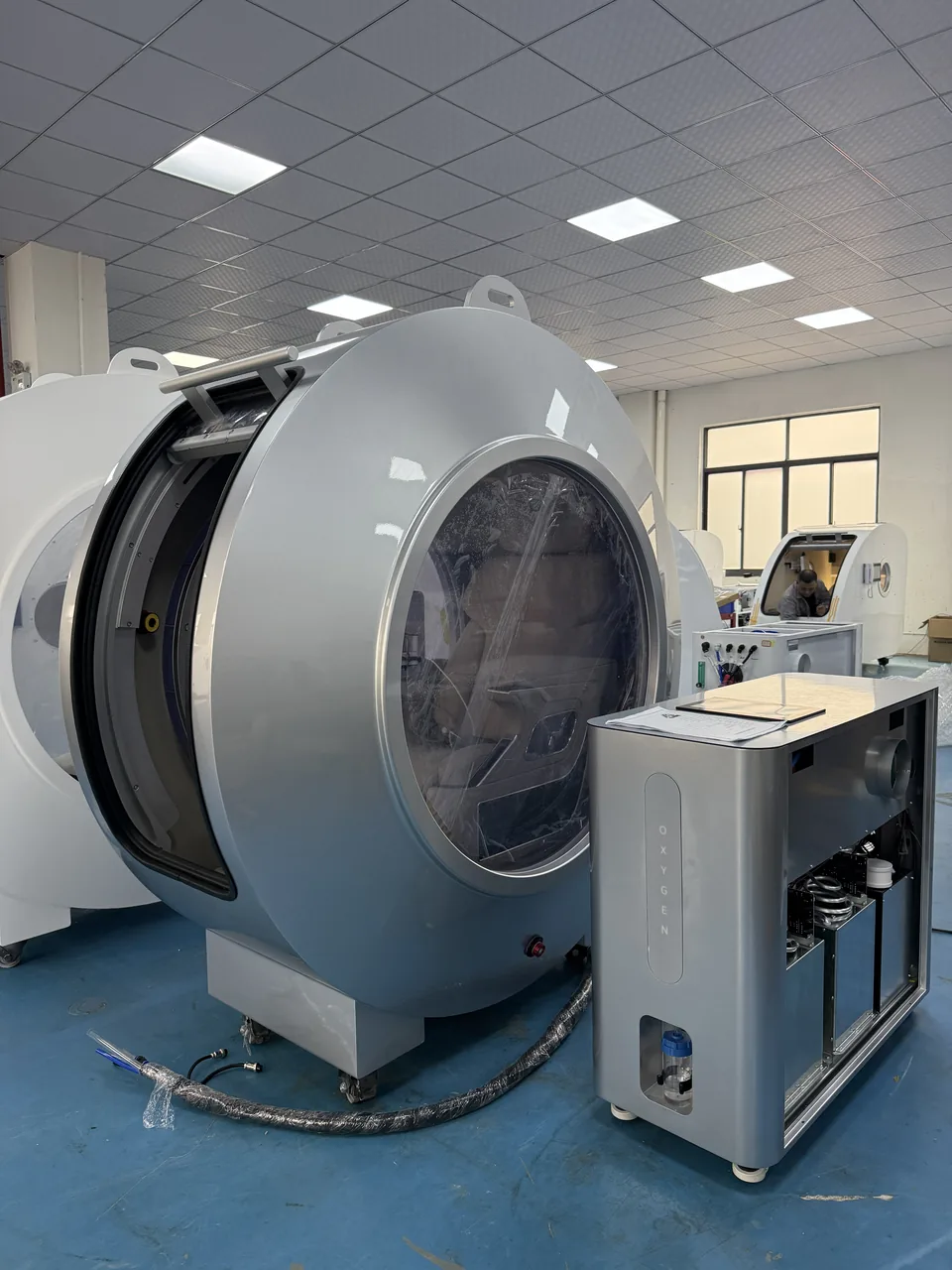

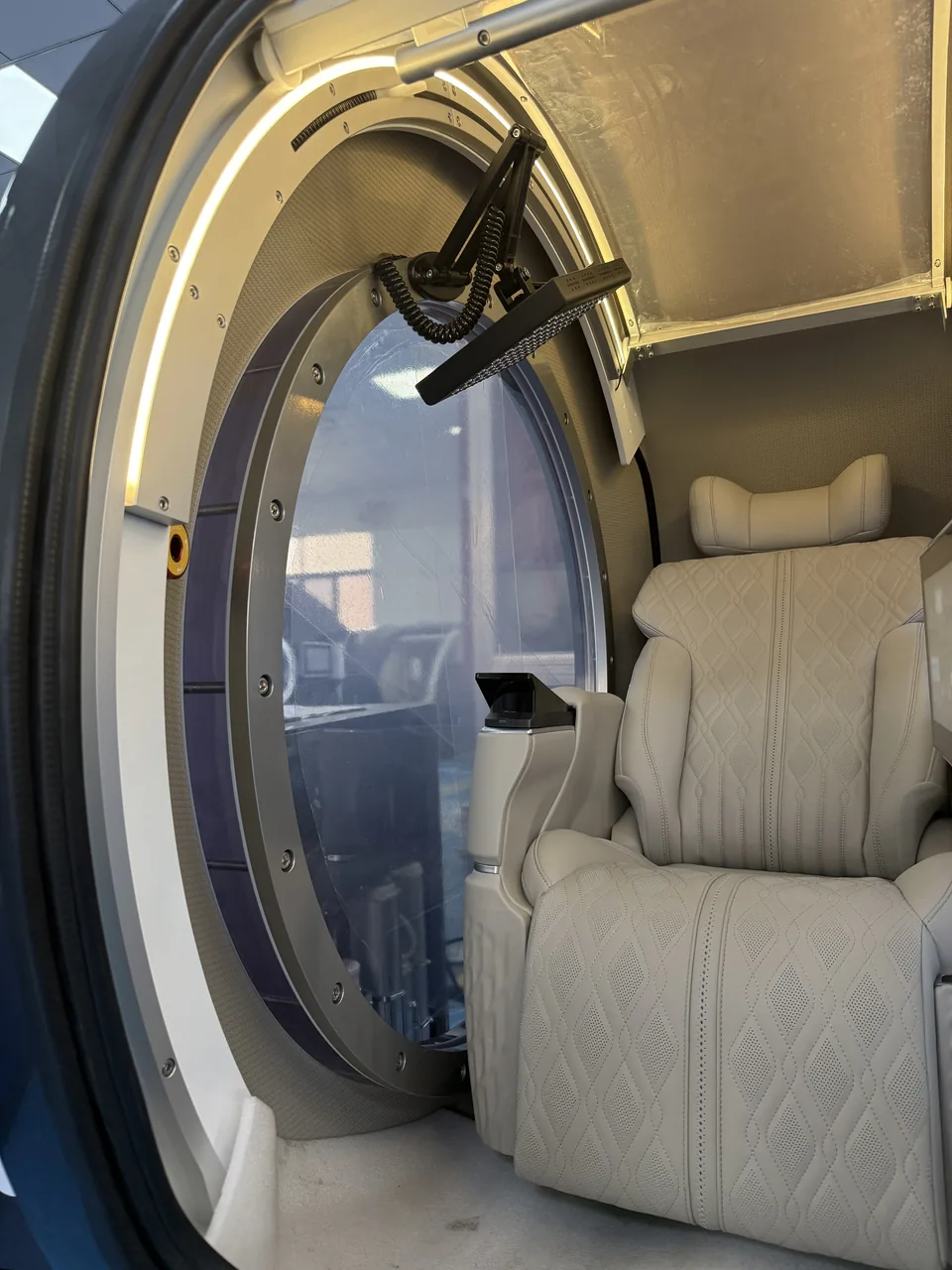

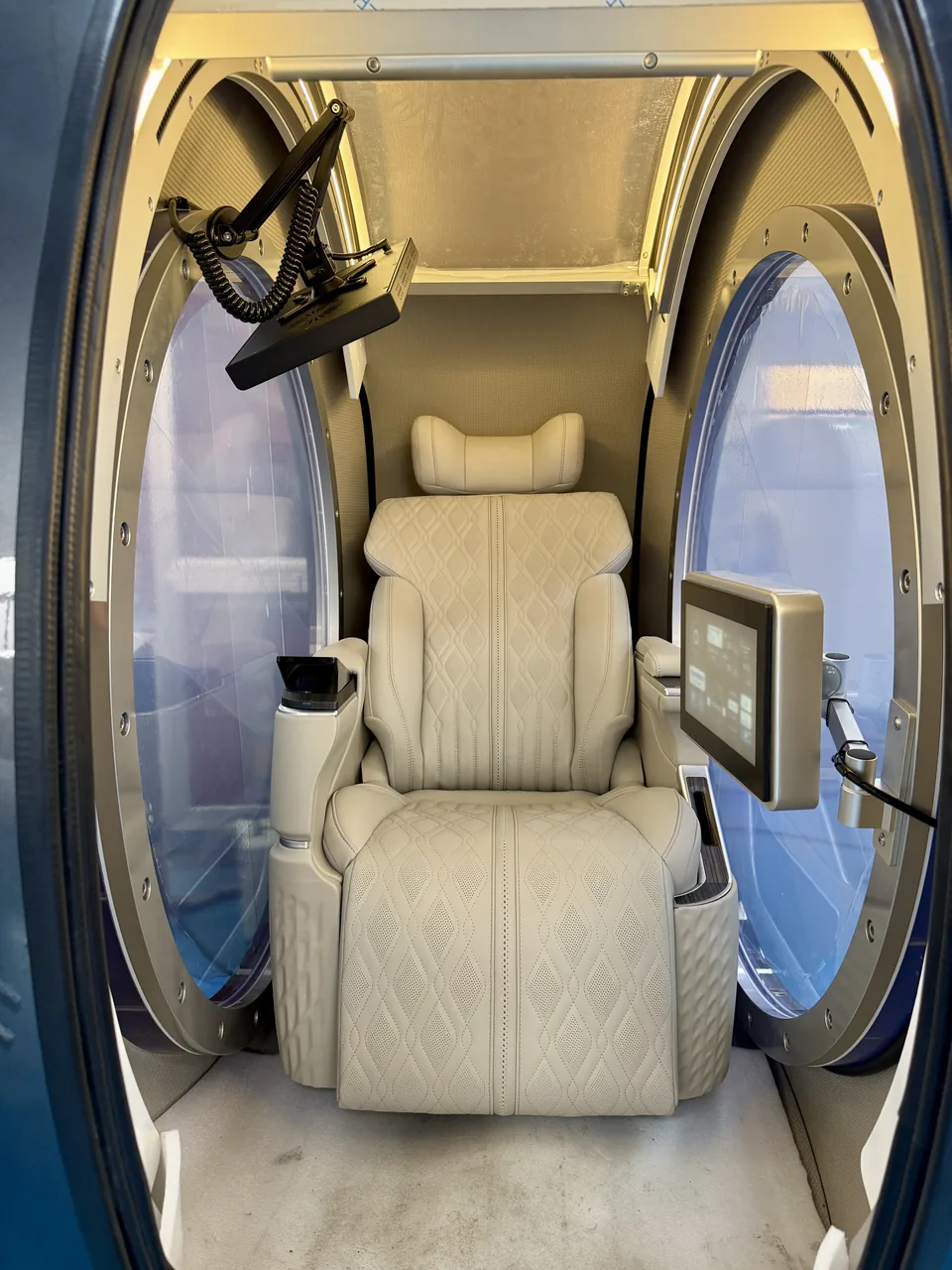

ARC: exterior, interior, controls — and on the factory floor.
Factory photographs and brochure images, from the finished chamber to the raw steel shell. Every caption says what it is, and optional equipment is labelled. Select a photo to enlarge it.
Factory clips
Short clips filmed in our factory. Sound removed; nothing loads until you press play.
Access & site planning
Will it reach the room?
Both side glass panels removed for handling, or the flat PC window version (50 mm windows) at 860 mm as built.
Widths are body measurements from the model documentation — not guaranteed doorway clearances. Height, turns, stairs, lifts, floor loading and handling space are reviewed for each project.
What to send us before you order
- Photos and measurements of each narrow point on the route — doors, corridors, turns, stairs
- Lift door width and height, cabin width and depth, rated load
- Floor level and floor loading for upper floors
- Room size and where the separate main unit can stand
- Your power supply: 110 V / 60 Hz or 220 V / 50 Hz
Standard and optional
What every ARC includes — and what you can add.
Many photographs show optional equipment. This is the line between the two, from the current model documentation and the five-model configuration comparison. Options are quoted with the chamber; combinations and the power version are confirmed by our engineers.
Included with every chamber

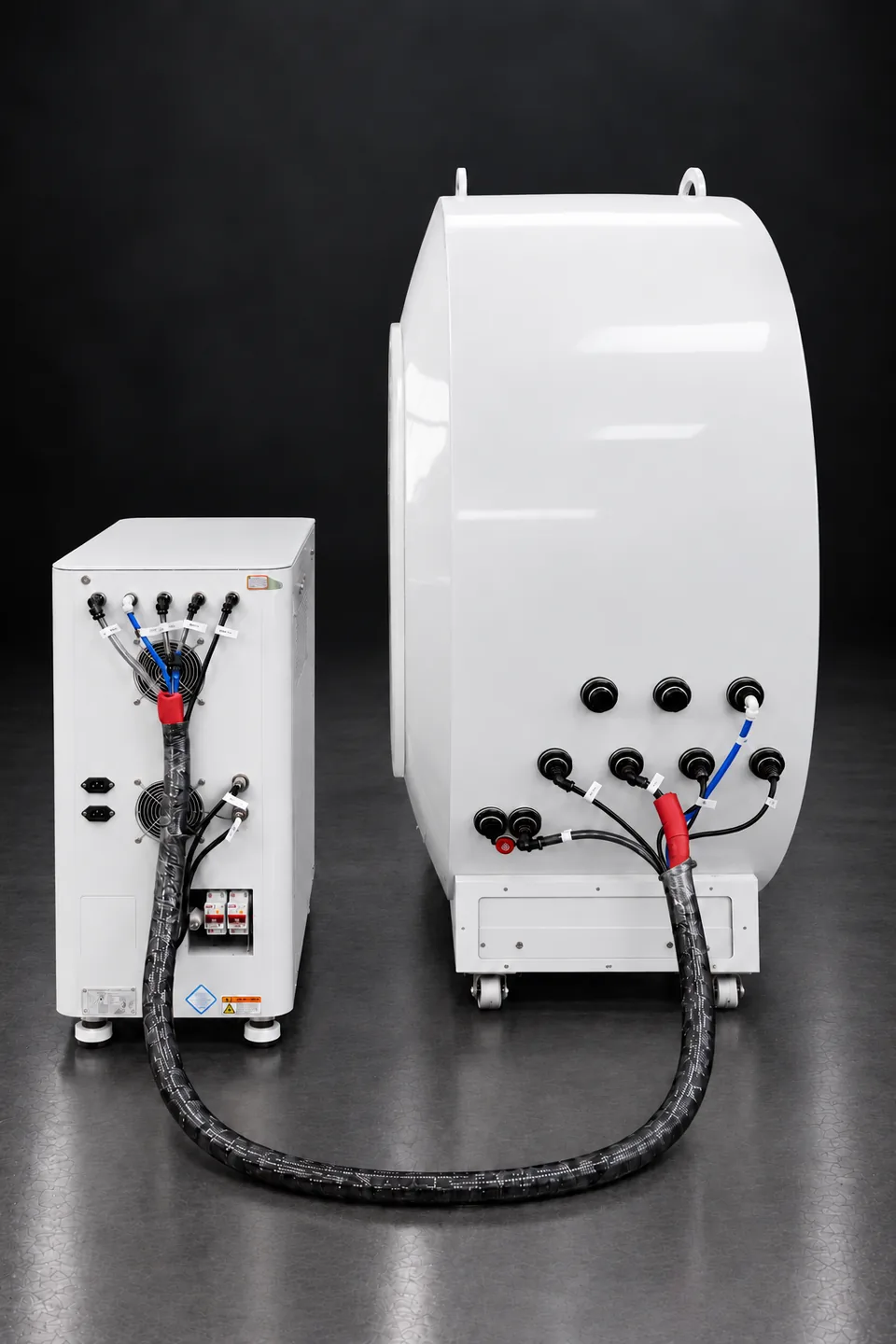

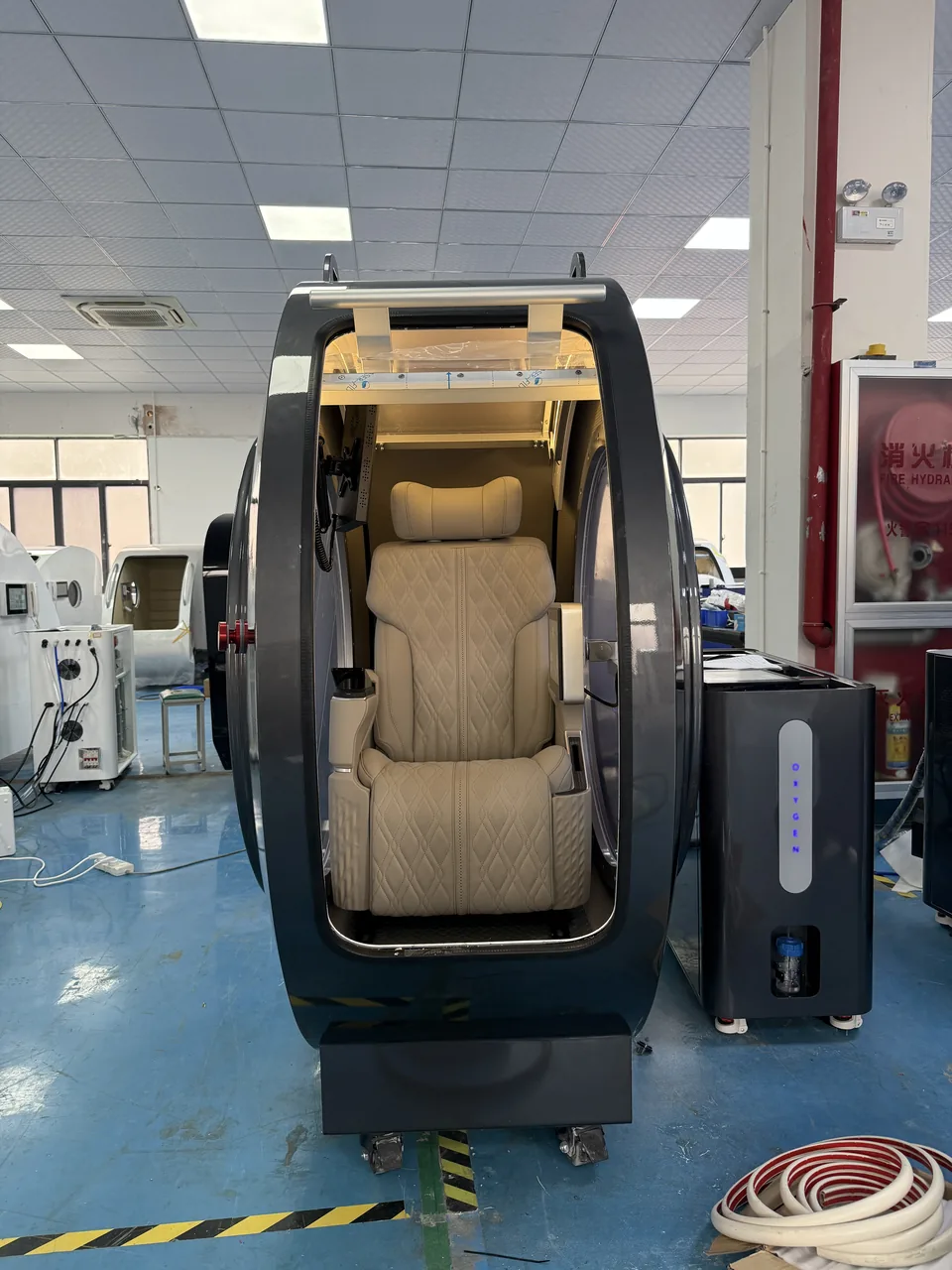

- 10L all-in-one main unitOxygen concentrator, air compressor and air conditioning in one cabinet.Standard
- Air conditioningIntegrated in the main unit.Standard

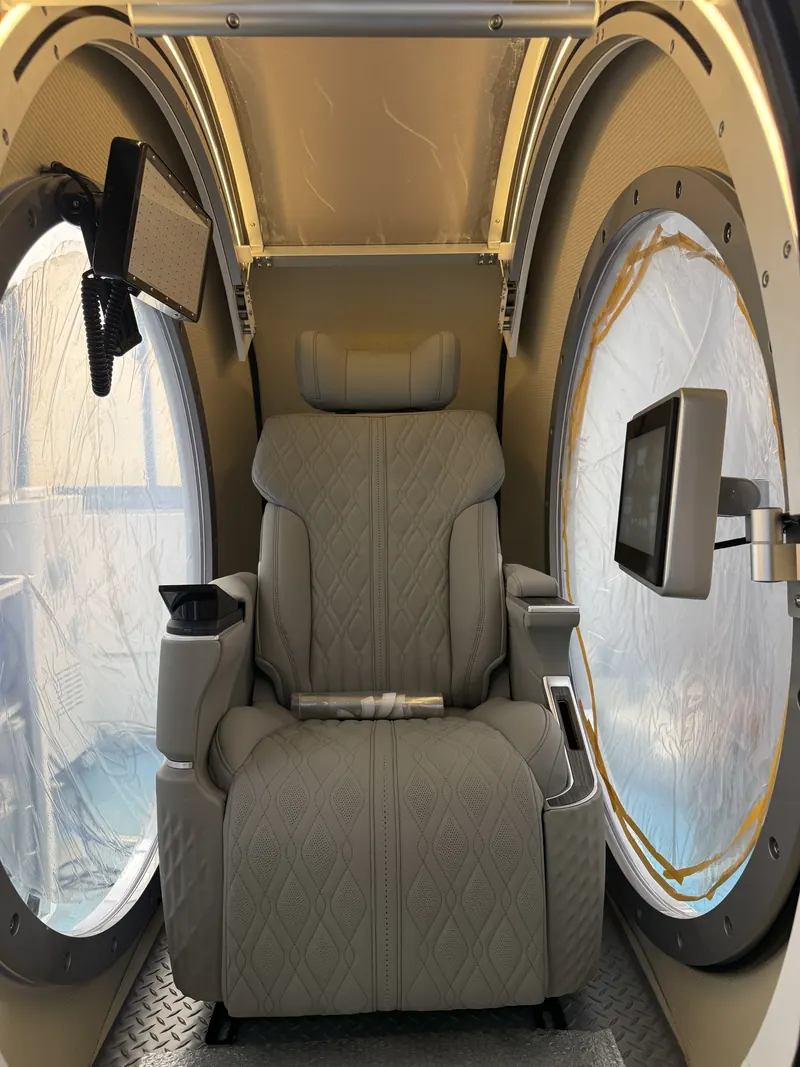

- Standard interior and sofaBase wall finish and seat. ORION COMPACT: built-in sofa with adjustable backrest.Standard
- Warm-white interior LEDInterior ambient lighting.Standard

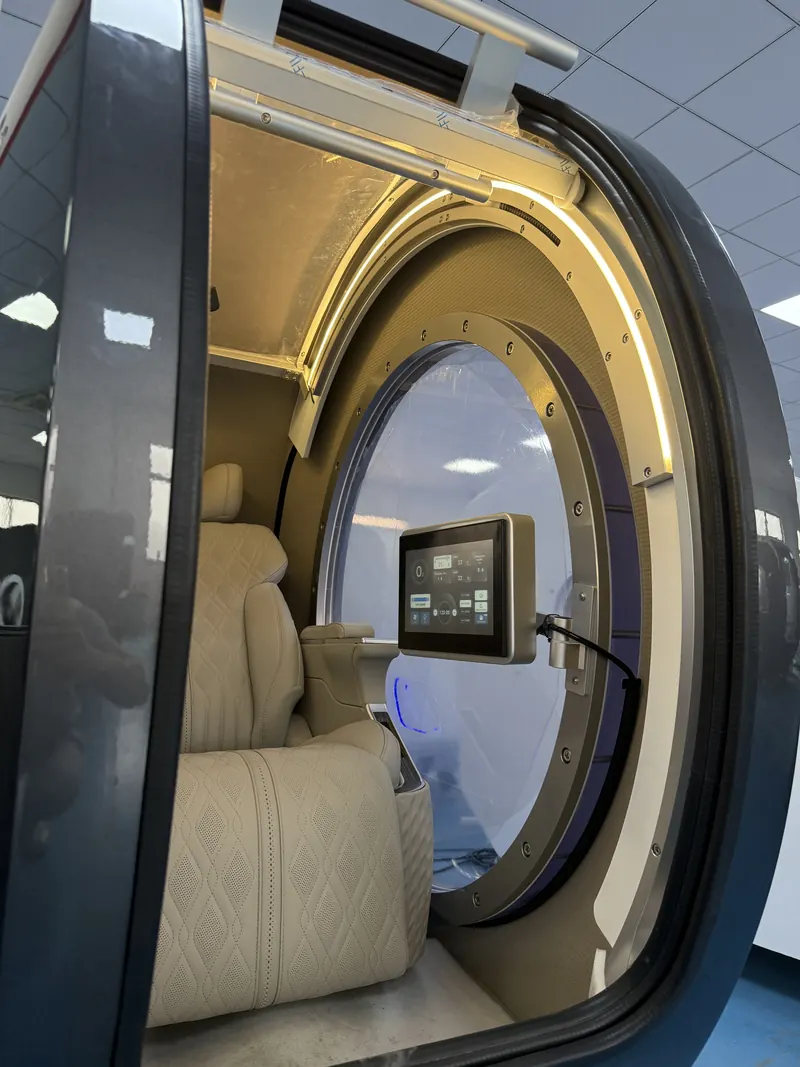

- Two touch control panelsOne inside, one outside.Standard
- Two intercom unitsOne inside, one outside.Standard
Available to add
- 20L all-in-one + BIBSLarger main unit with a built-in breathing system and mask, replacing the 10L unit.Optional
- Single infrared panelOne LED infrared panel inside the chamber.Optional
- Dual infrared panels (head + foot)One panel at the head, one at the foot.Optional
- Pulse oximeterFingertip SpO₂ and pulse monitor.Optional
- Negative-ion unitSmall unit inside the cabin.Optional
- Seating upgradeNAPA massage sofa; LUMEN flagship NAPA sofa with folding desk; VISTA two-person sofa.Optional
- Folding tableFold-out surface on the chamber wall.Optional
- PEMF seat systemPulsed electromagnetic field mat built into the seat, with its own controller.Optional
- Plain entry stepStep in front of the door.Optional
- Illuminated entry stepStep with built-in lighting.Optional
- Leather wall lining · metal handle · aluminium strip · door position limiterInterior and exterior finish items; fit confirmed per model and order.On request
Not offered on this model

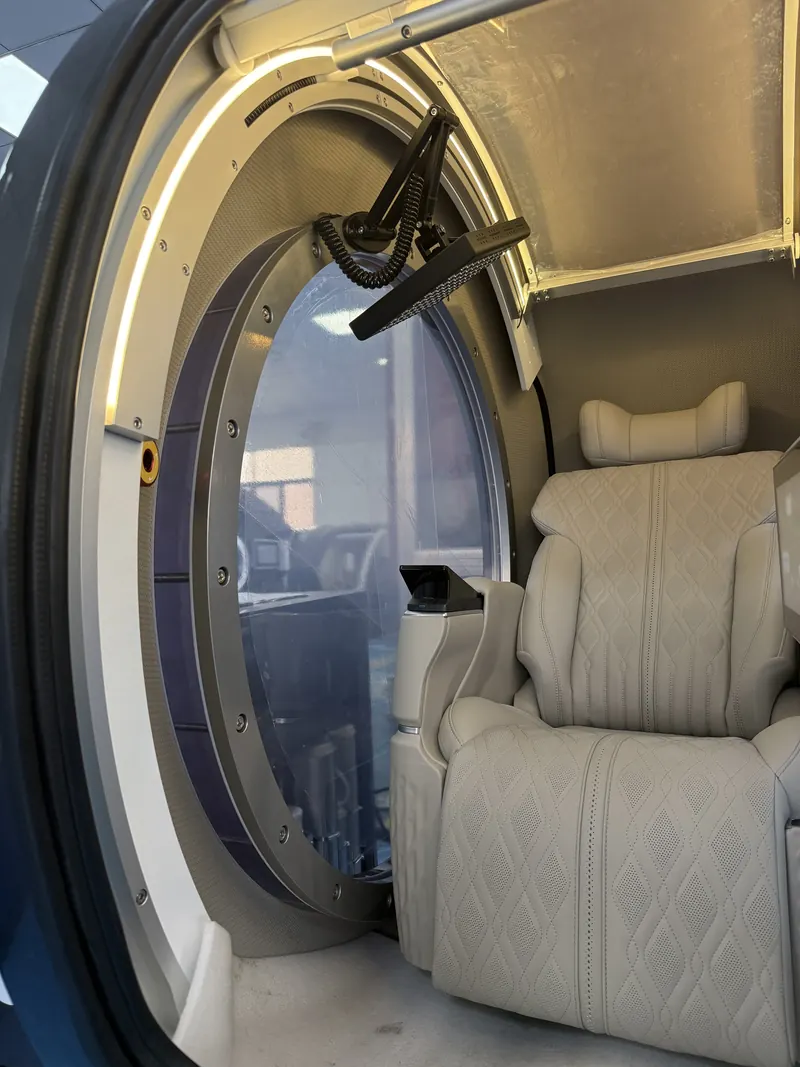

- Three-panel infrared lightThree panels on an adjustable arm.Not offered
- Illuminated doorLED lighting built into the door frame — LUMEN and ORION each have their own design.Not offered

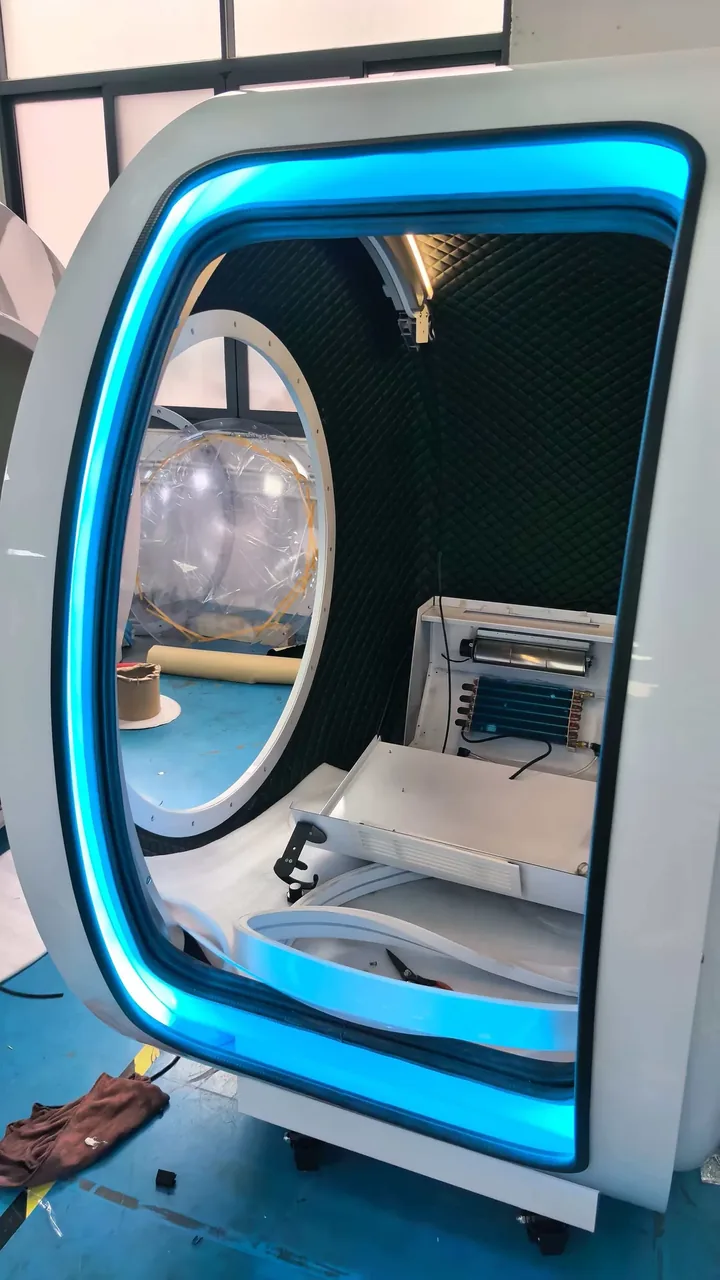

Options on video
Six add-ons, shell colours, wall finishes, seating and the LED light setups, shown with our chambers. Nothing loads until you press play.
Customize
Your ARC: shell colour, interior wall, seat.

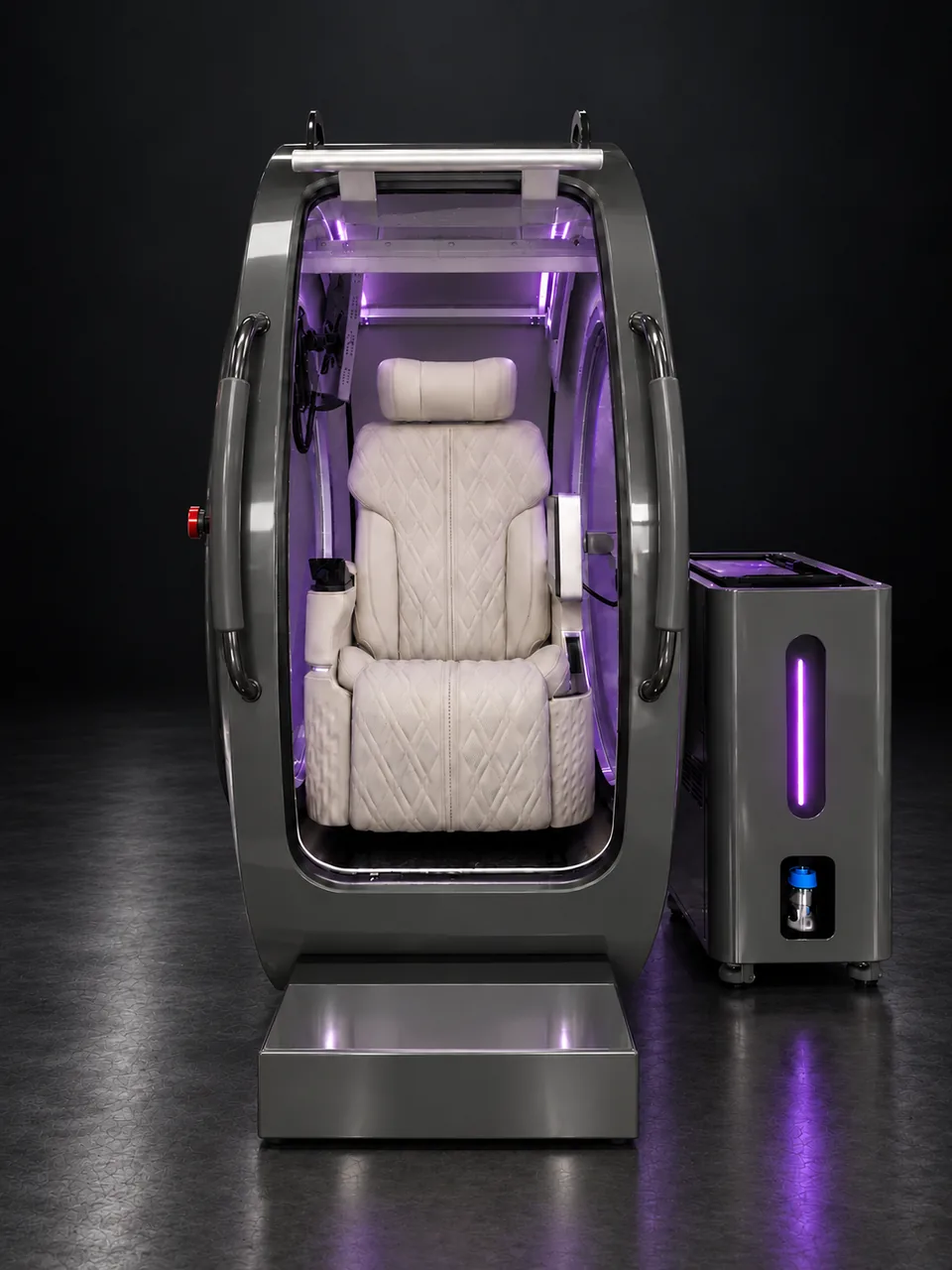

Black, white, dark grey and light grey are the standard shell colours; any of the 216 RAL Classic colours can be ordered, and two-tone designs on request. Pick a colour below to preview it.

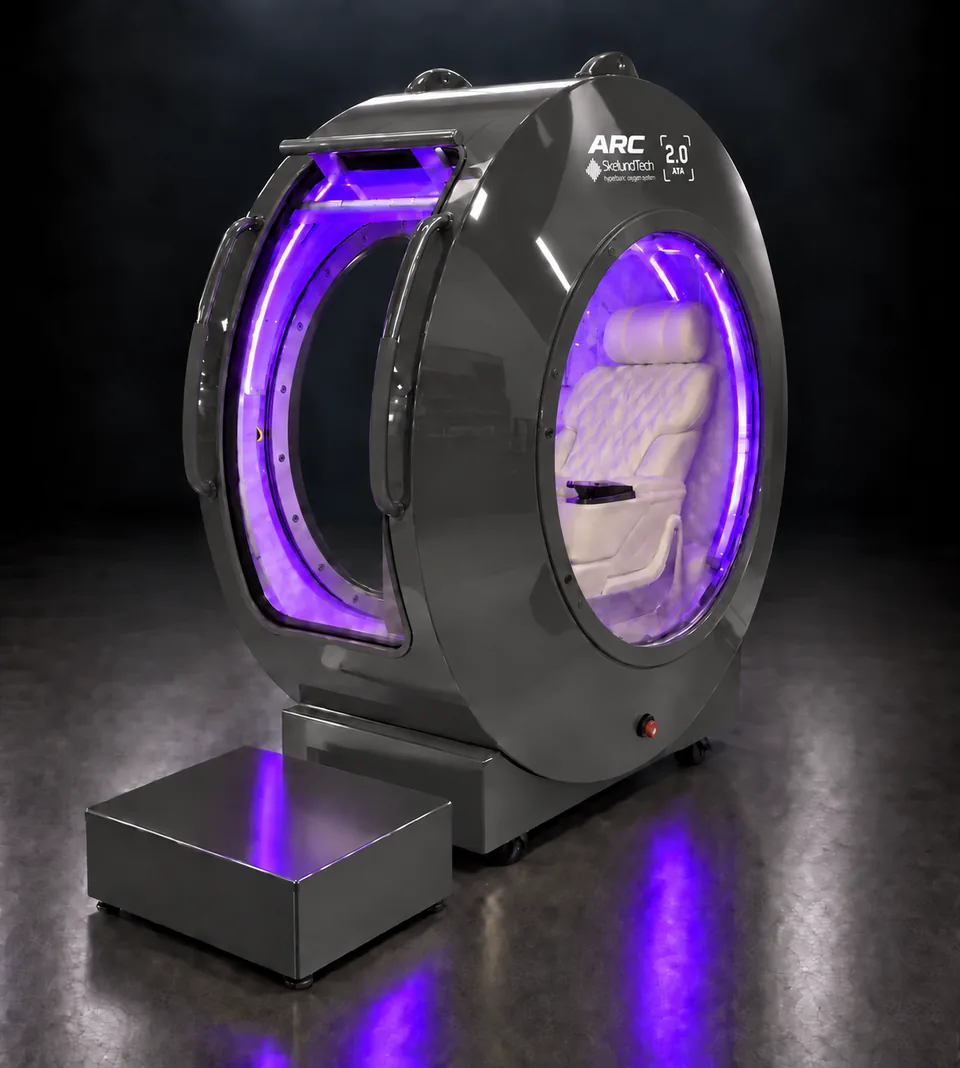

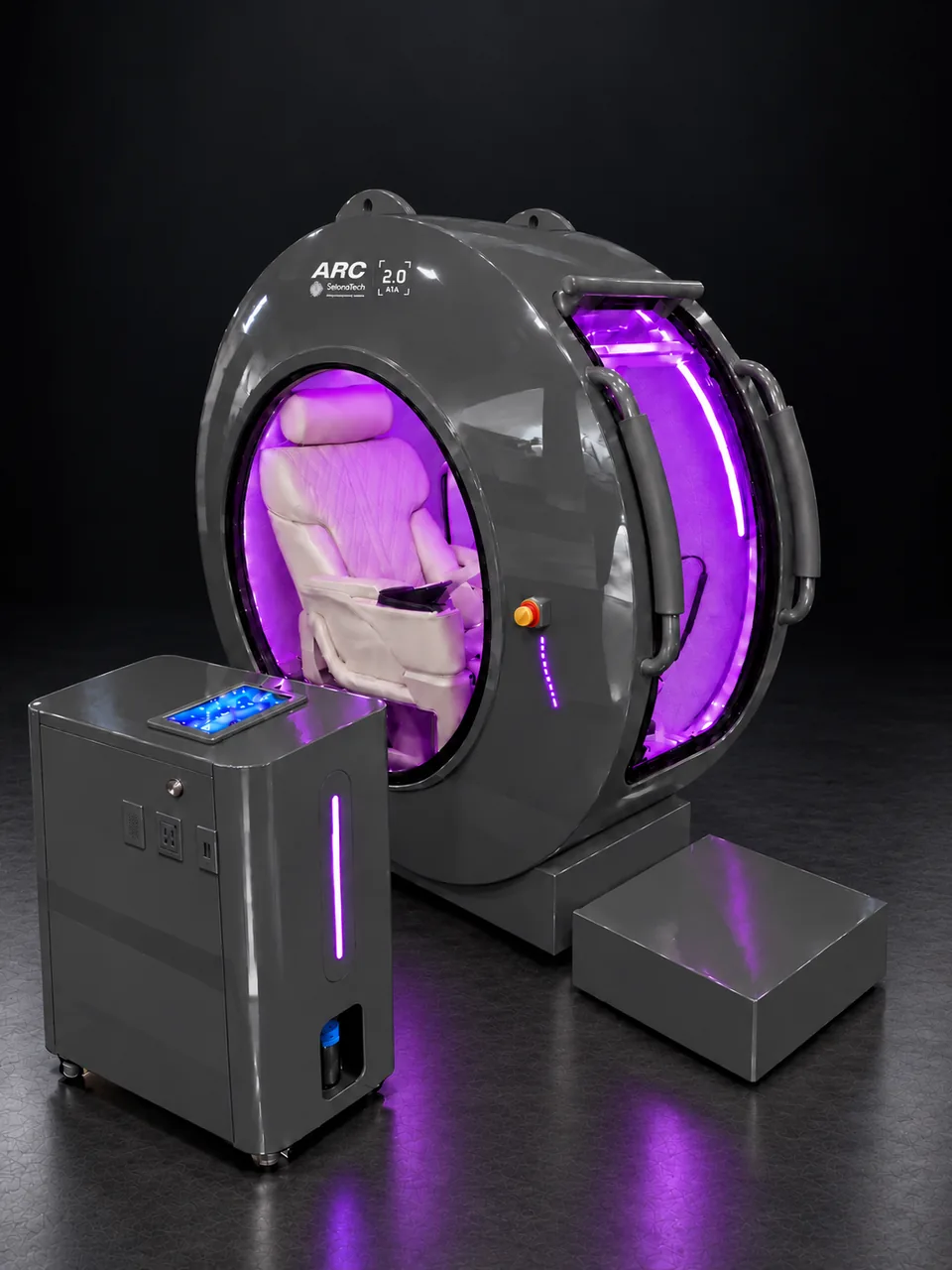

Colour preview

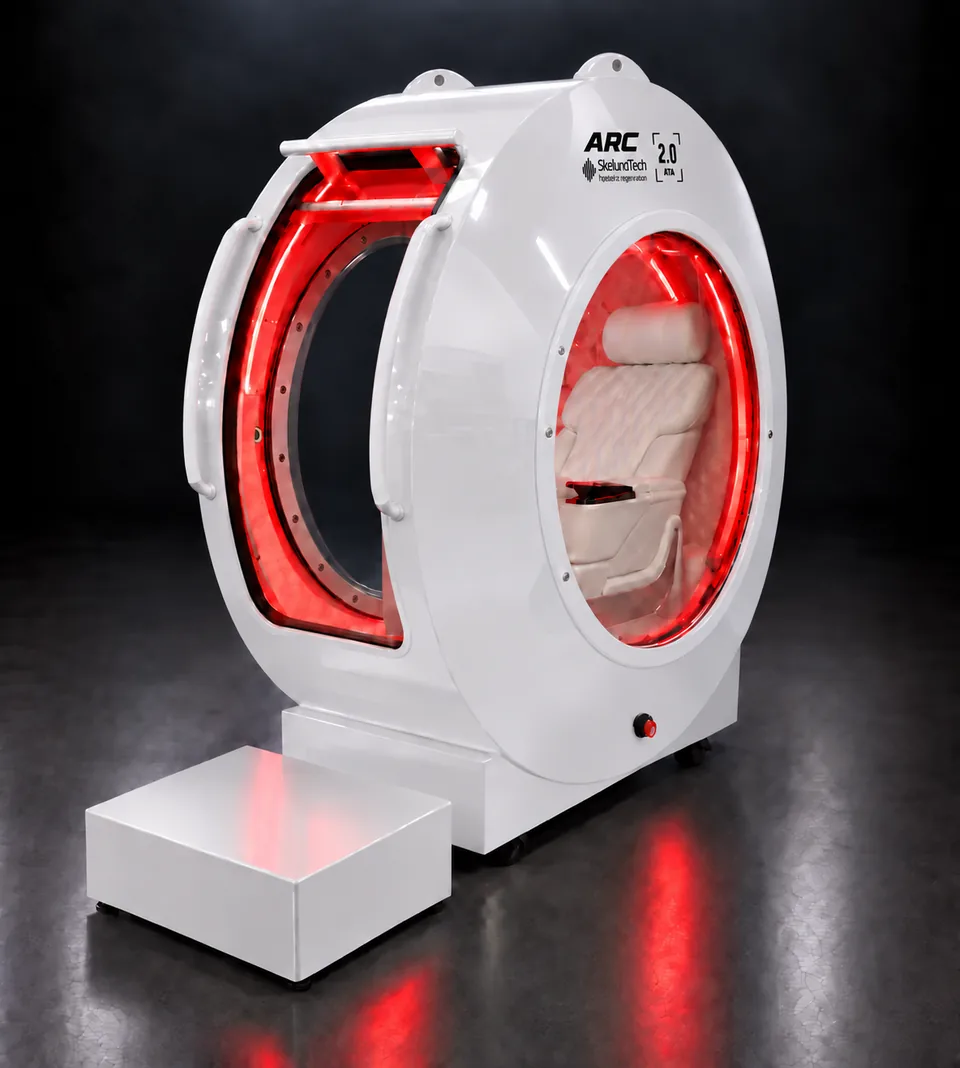

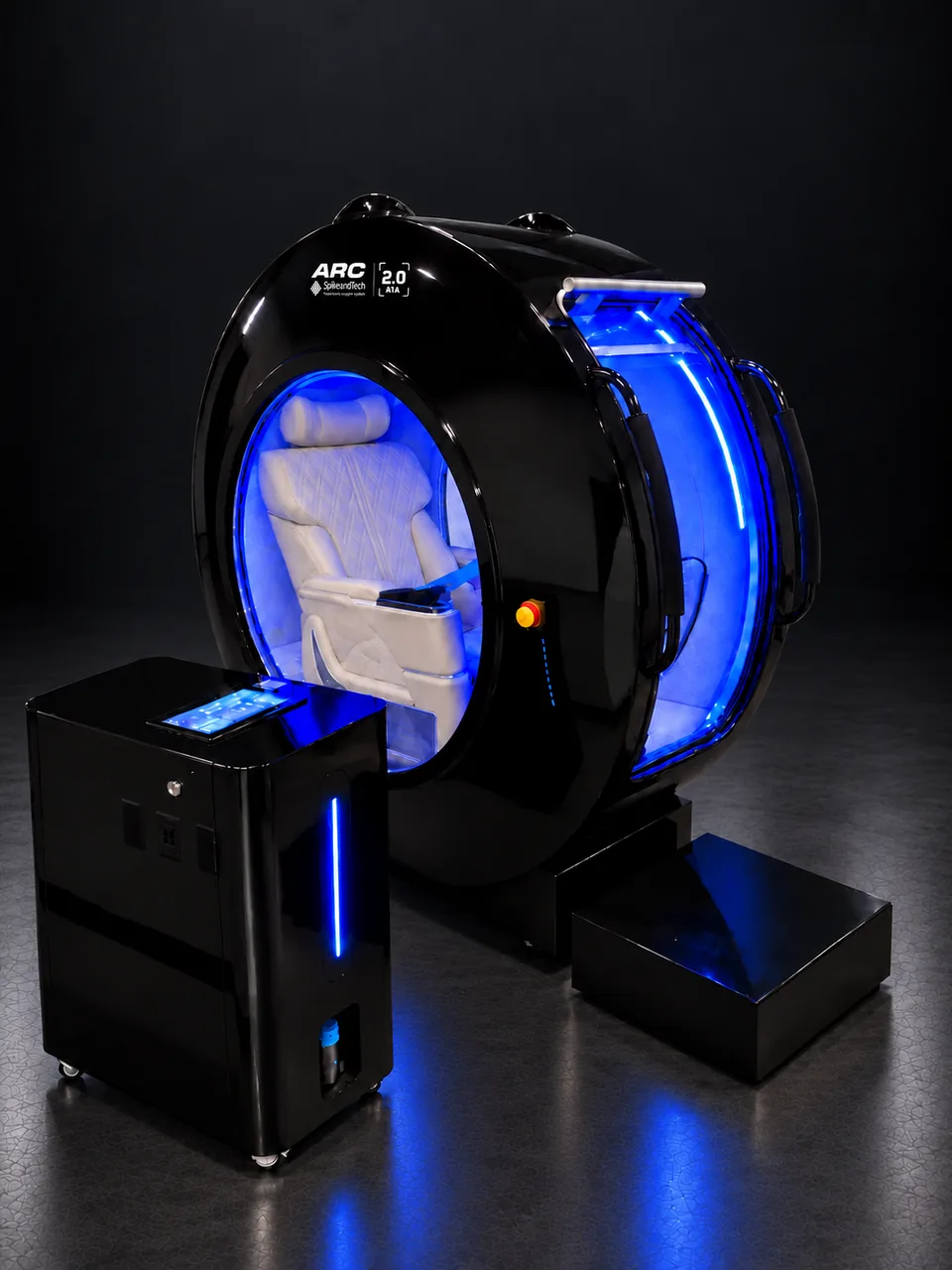

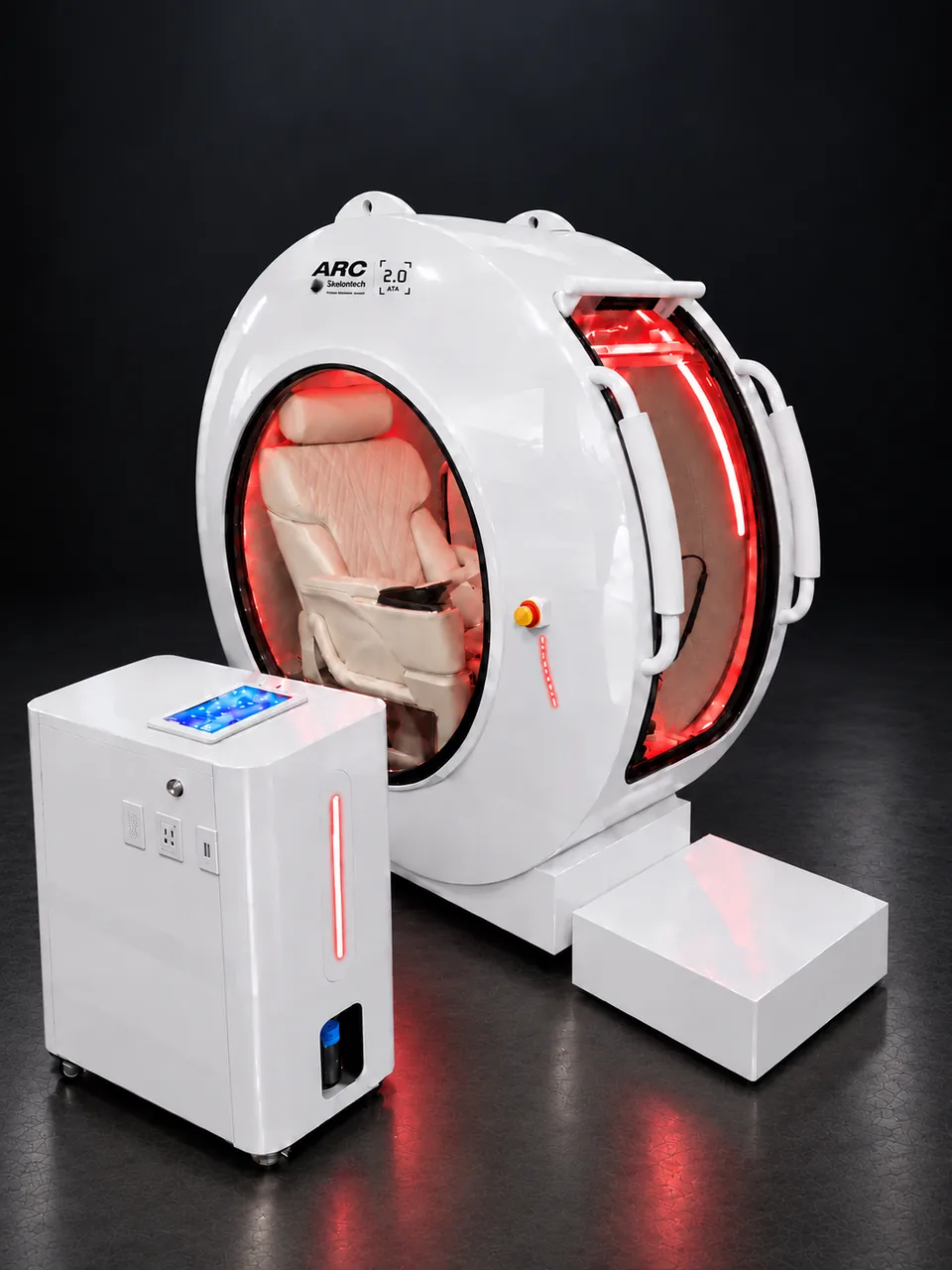

ARC in 3 colours, 4 views.

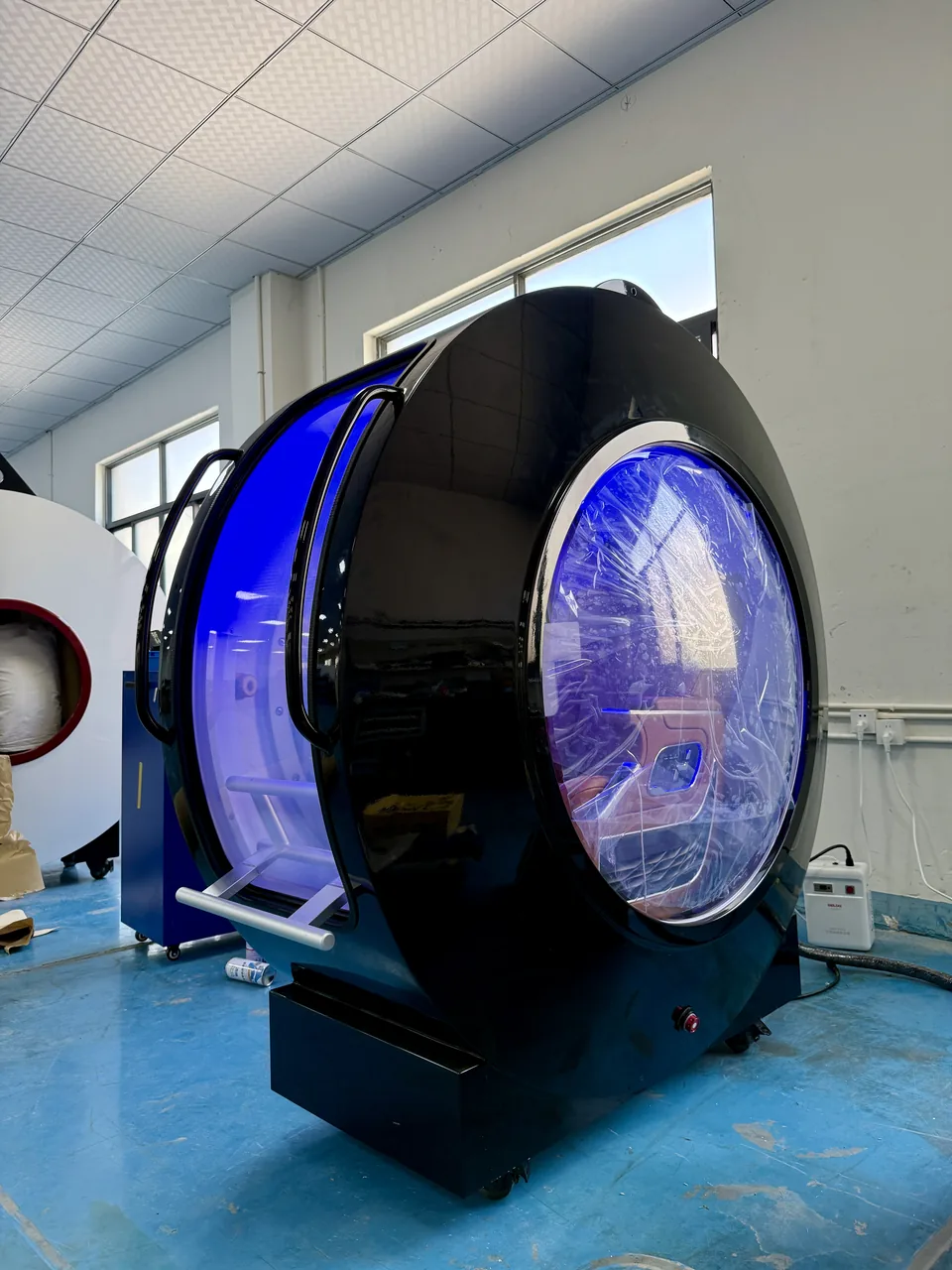

Accent lighting colour as shown (red, blue or purple) is chosen with the order. Colour previews are digital recolours of the chamber; on-screen colours are approximate. Confirm the final colour with a physical RAL sample before ordering.
Interior walls
Wall finishes for ARC
Basic Wall (woven leather): 3 standard colours plus 24 woven colours. Luxury Leather Wall (padded leather, diamond quilting): 3 standard colours plus 10 quilted finishes.
See every wall colourSeating
Seats for ARC
Standard Chair (4 standard + 9 more eco cowhide colours), Upgraded Chair and the NAPA Massage Chair (3 standard + 57 custom colours).
See every seat and colourTechnical data
ARC specifications.
Approximate figures from the current model documentation (October 2026). Interior dimensions, clear door opening, main unit size and weight, and packed dimensions are confirmed per order.
- Operating pressure
- 2.0 ATA
- Occupancy
- 1 person, seated upright
- External size (L × W × H)

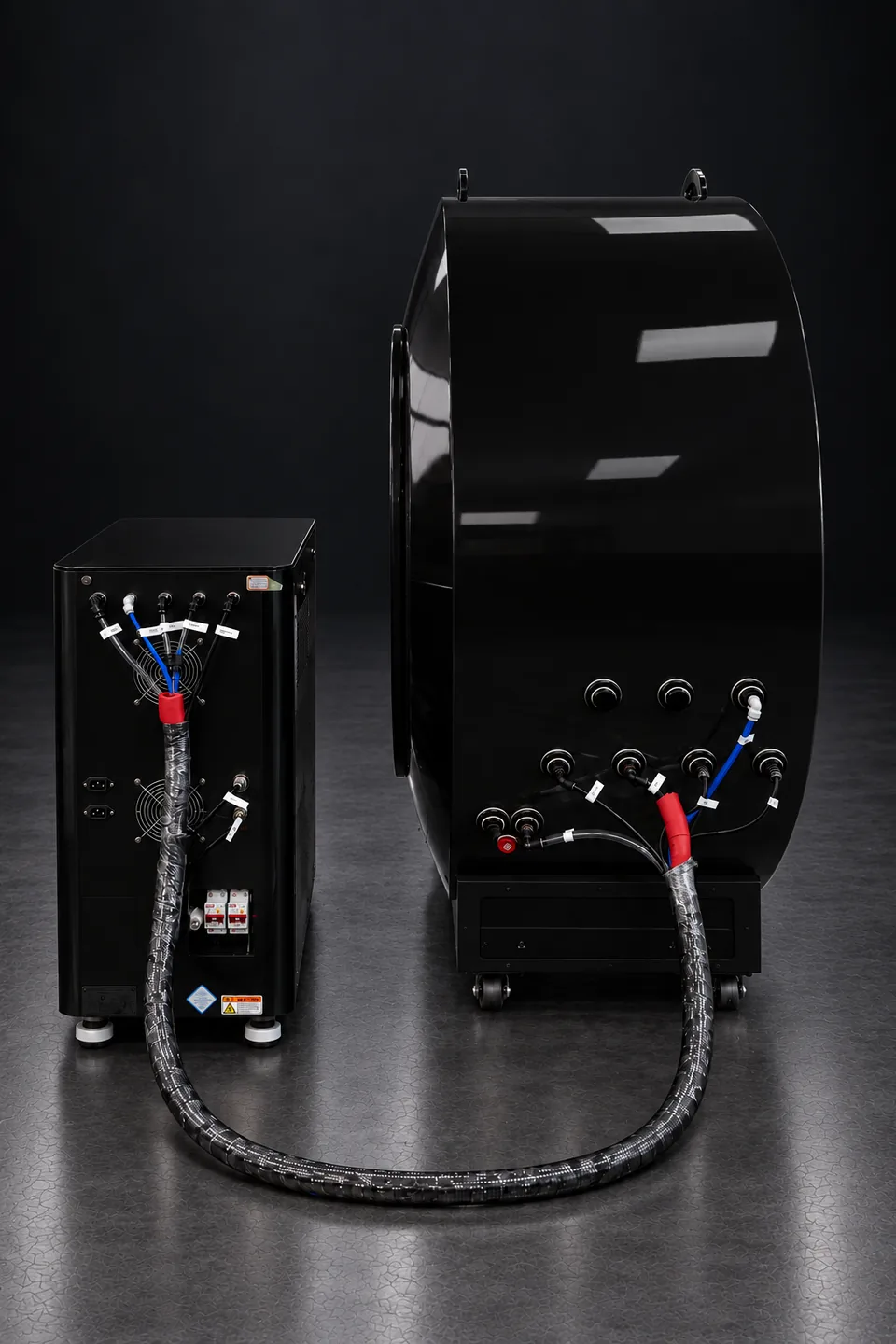

- 1,780 × 980 × 2,000 mmChamber only — allow space for the main unit, connections, door movement and service.
- Chamber weight
- ≈ 720 kgExcludes the main unit and packaging; the final configuration can affect weight.
- Narrowest documented width
- 860 mmside glass removed, or flat PC window version. Body width, not a doorway clearance.
- Standard main unit
- 10L all-in-oneOxygen concentrator, air compressor and air conditioning in one cabinet.
- Optional main unit
- 20L all-in-one + BIBSTwo 10L concentrators, three compressors, built-in breathing system with mask.
- Oxygen supply concentration
- 93% ± 3%At the concentrator supply — not the oxygen level of the chamber air.
- Controls
- 2 touch panels + 2 intercoms, inside and outside
- Interior
- Warm-white LED · standard wall finish · standard sofa
- Standard exterior colours
- Black · White · Dark Grey · Light Grey
- Warranty
- 2 years (company policy)Scope, conditions and start date are set in your contract.
- Door thickness
- 20 mm
- Flat PC window version
- 1,780 × 860 × 2,000 mm as built, 50 mm PC windows
Electrical
| System | Supply | Rated power | Current |
|---|---|---|---|
| 10L all-in-one (standard) | 110 V / 60 Hz | 2,000 W | 20 A |
| 10L all-in-one (standard) | 220 V / 50 Hz | 1,500 W | 8 A |
| 20L all-in-one + BIBS (optional) | 110 V / 60 Hz | 2,700 W | 25 A |
| 20L all-in-one + BIBS (optional) | 220 V / 50 Hz | 2,500 W | 13 A |
Values from the model documentation. Choose the version that matches your installation; a local electrician plans a dedicated circuit.
In the crate
Delivered with every ARC, besides the chamber, its all-in-one main unit and the options on your order.
Accessories
- 2 × oxygen masksStandard oxygen masks; the BIBS mask is part of the optional 20L system.
- 2 × headsetsTwo headsets, packed with every chamber.
- 2 × door sealsTwo door seals in the crate, so a replacement is on hand.
Documents
- Operation manualHow to run a session, the touch panels and the intercom.
- Product manualSpecifications, connections and the main unit.
- Maintenance manualChecks, consumables and how to replace the parts you can change yourself.
- Company profileWho we are and what we make.
ARC spec sheet, drawings and brochure
We send model documents to buyers directly rather than publishing them for download: the specification sheet, dimensioned drawings for your access route and the brochure, plus copies of the quality documents that cover your model and destination. Tell us the model and your country and the team sends them the same working day (China Standard Time).

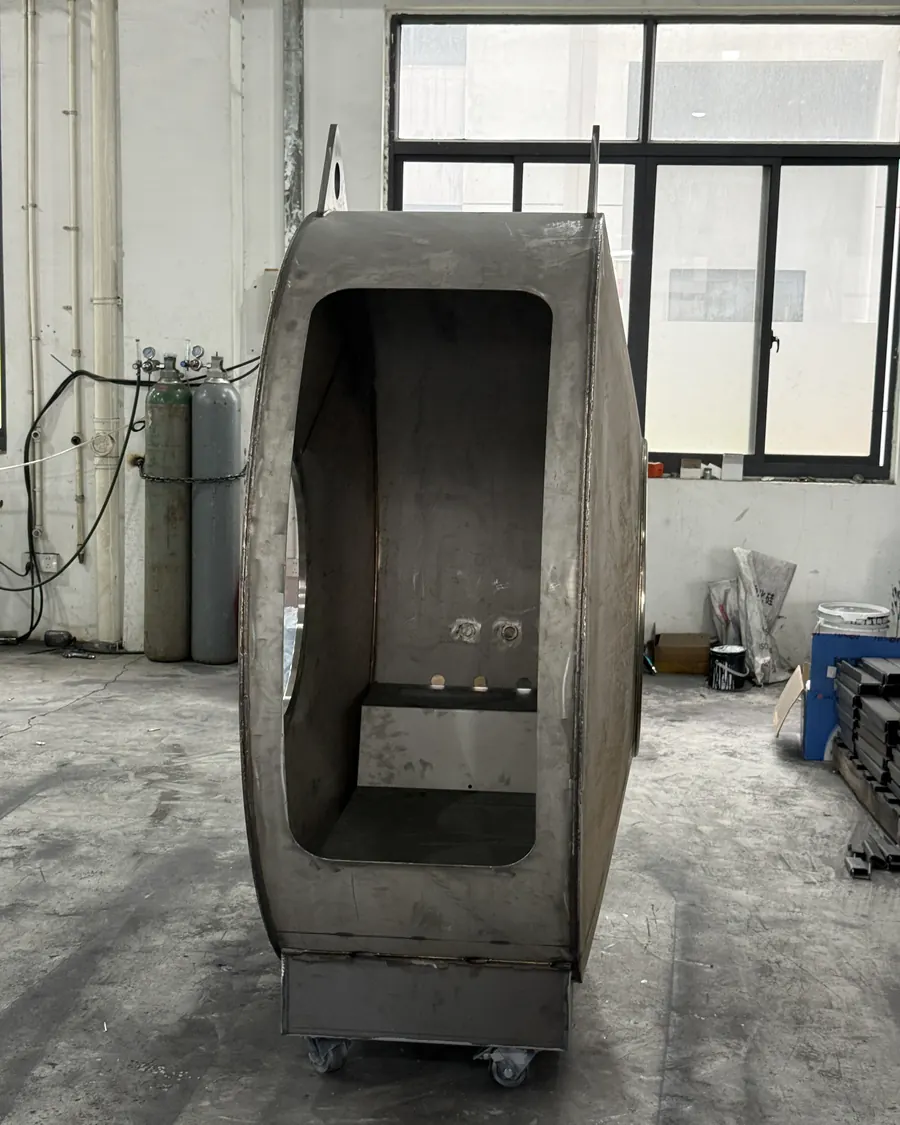

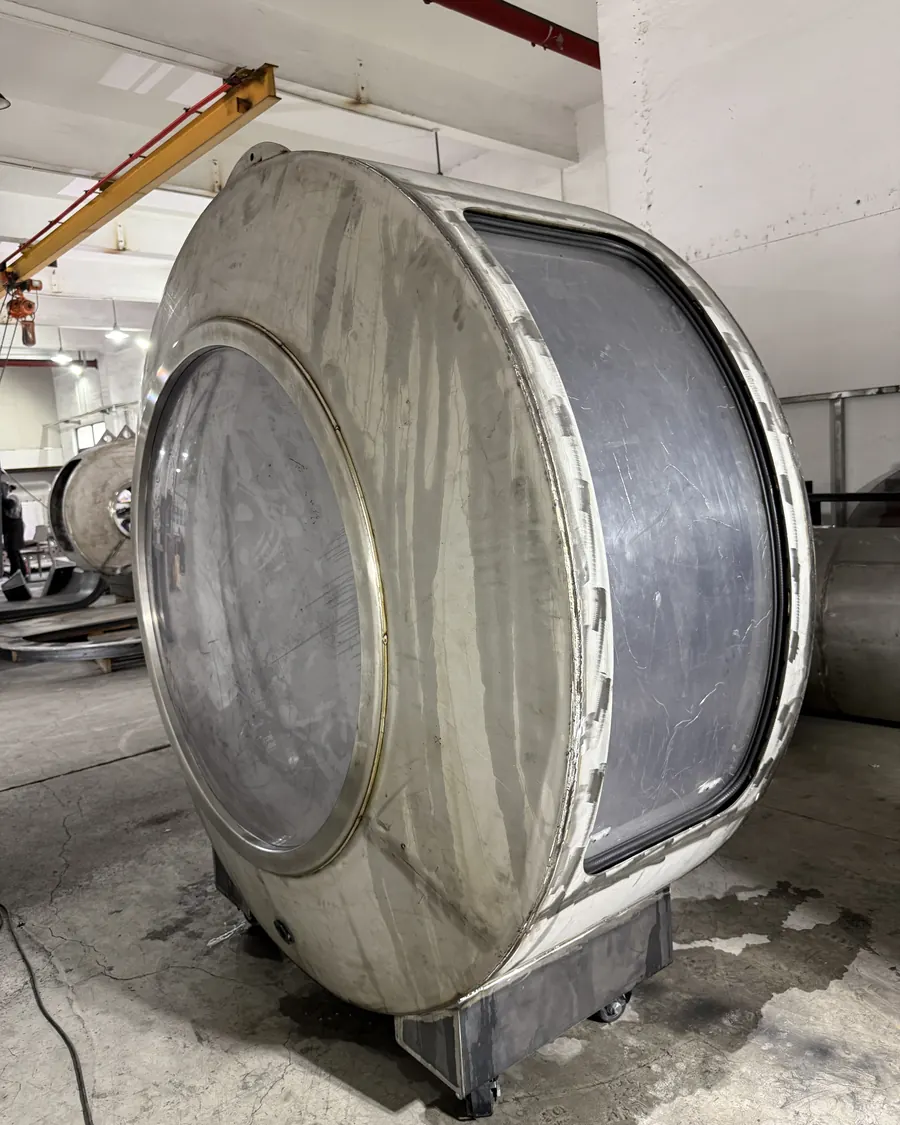

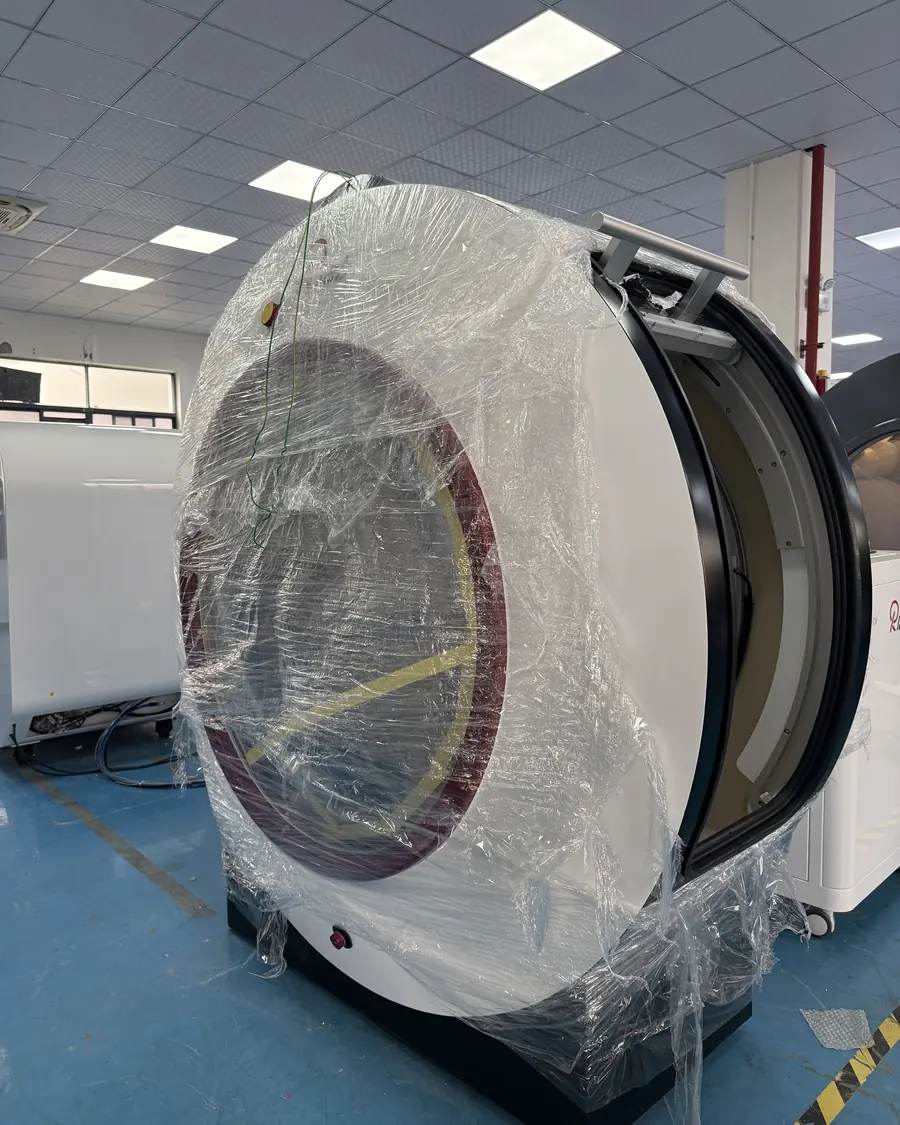

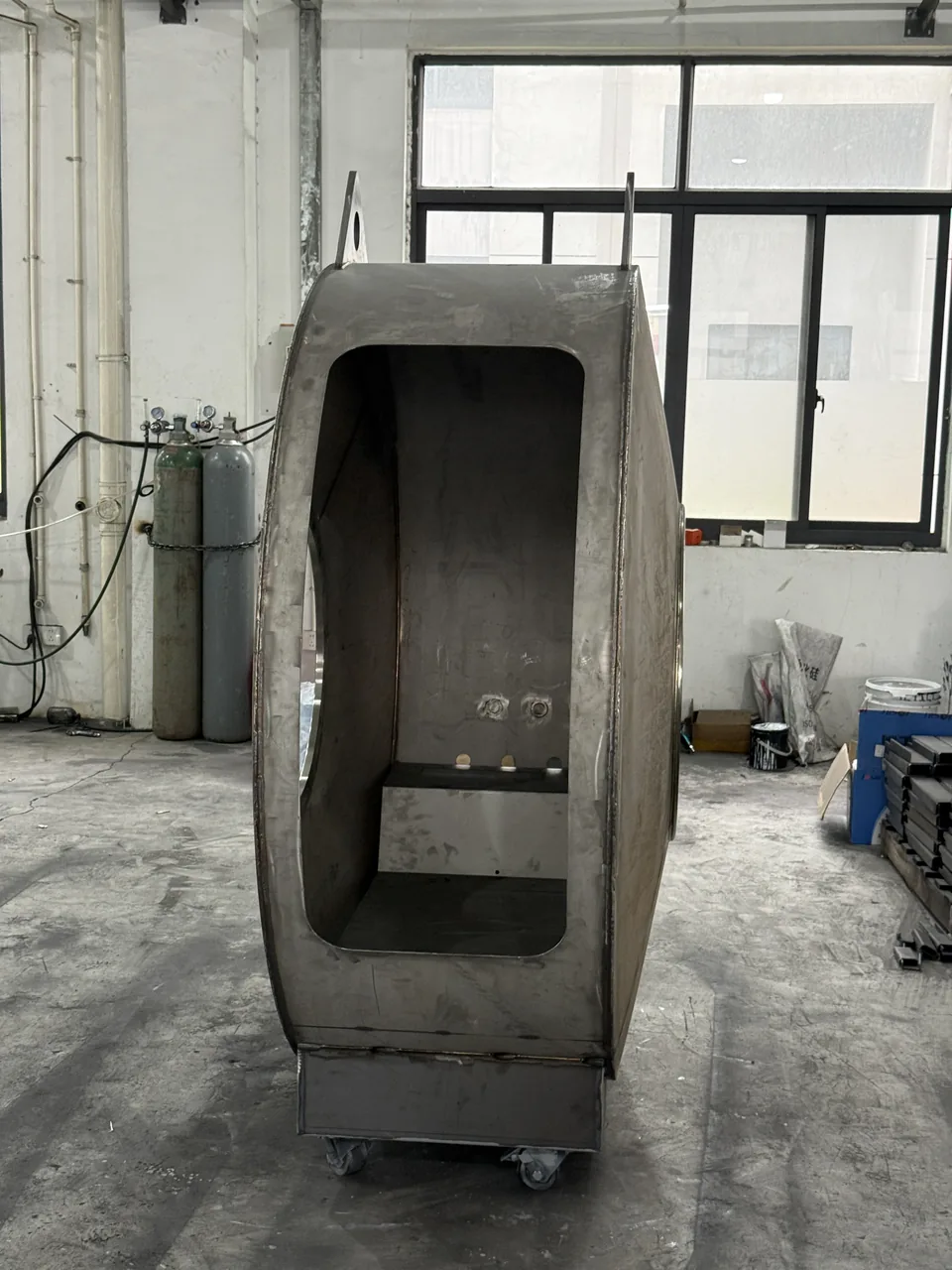

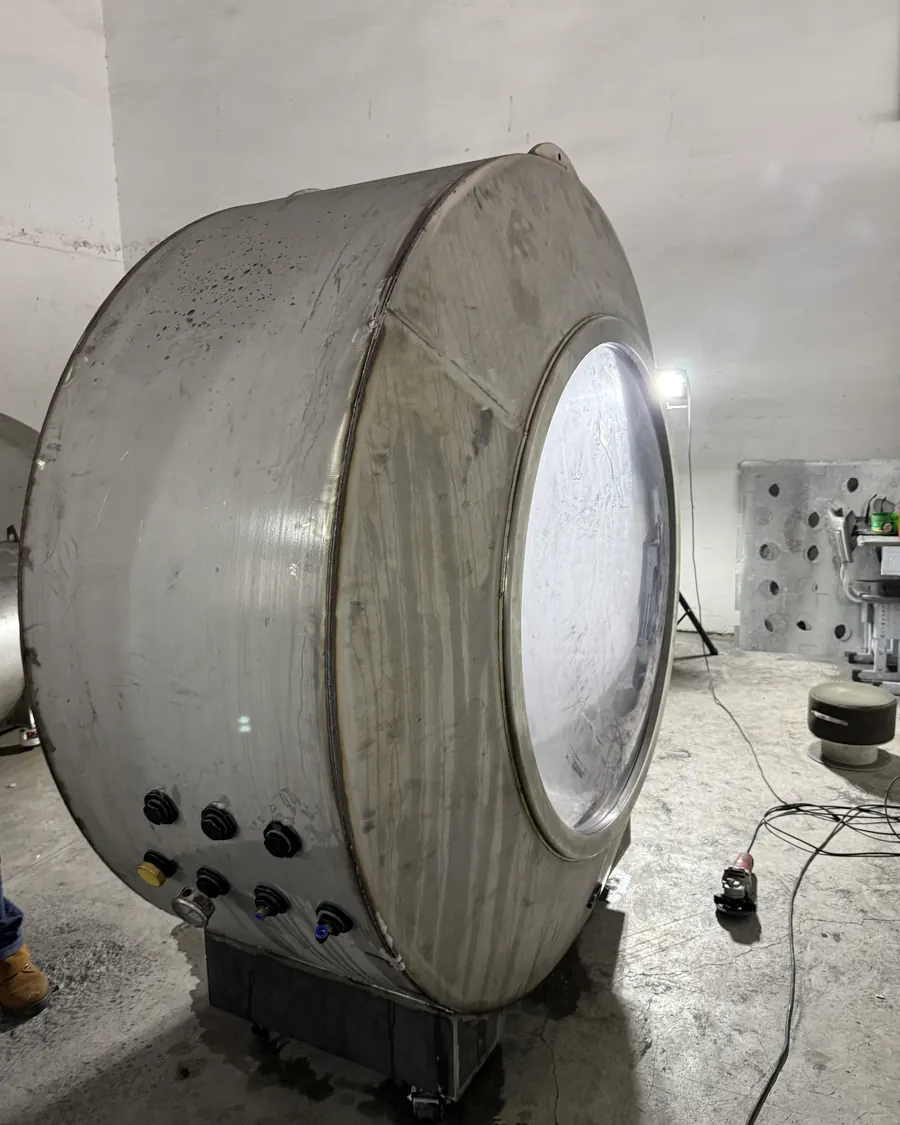

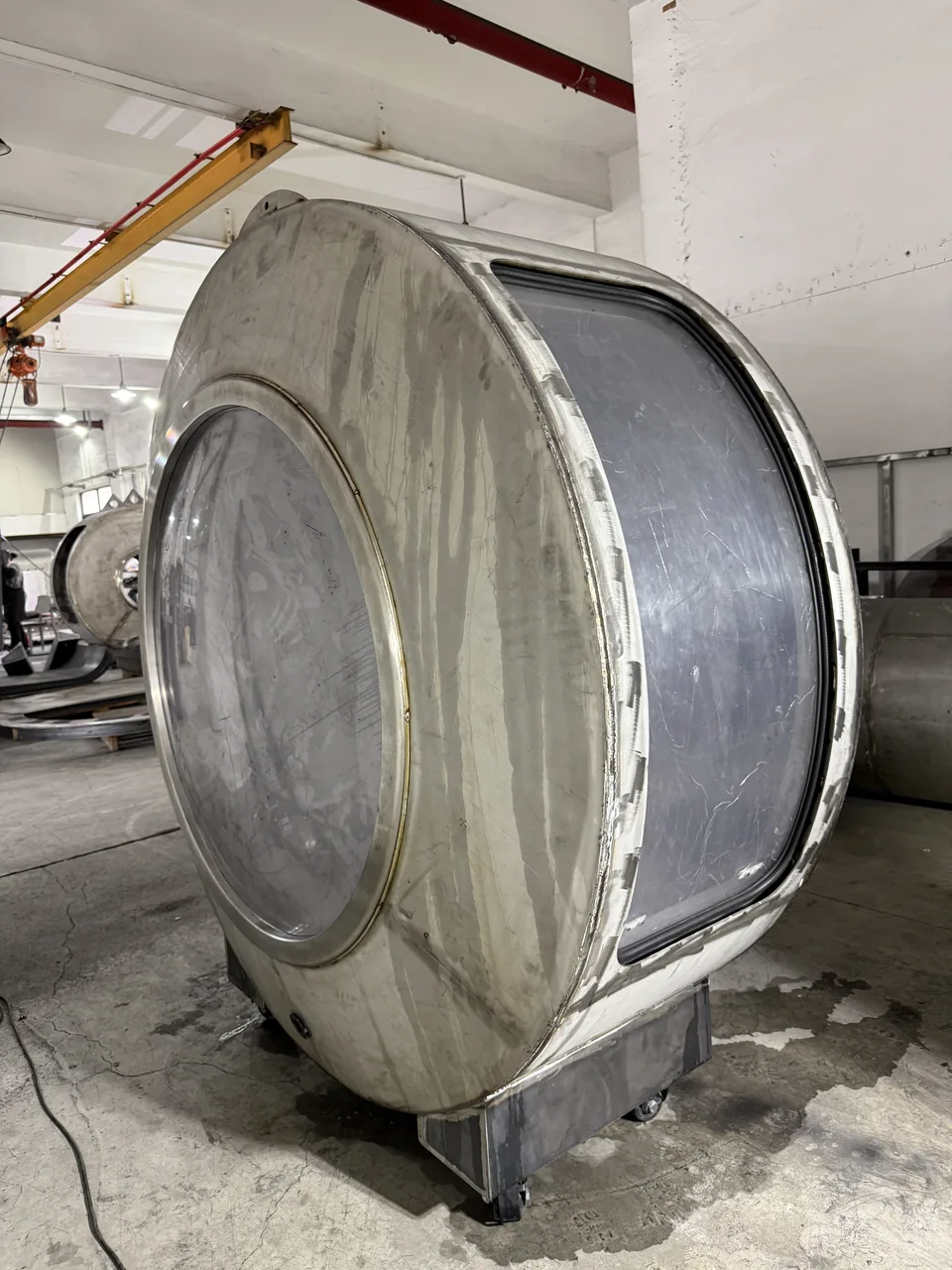

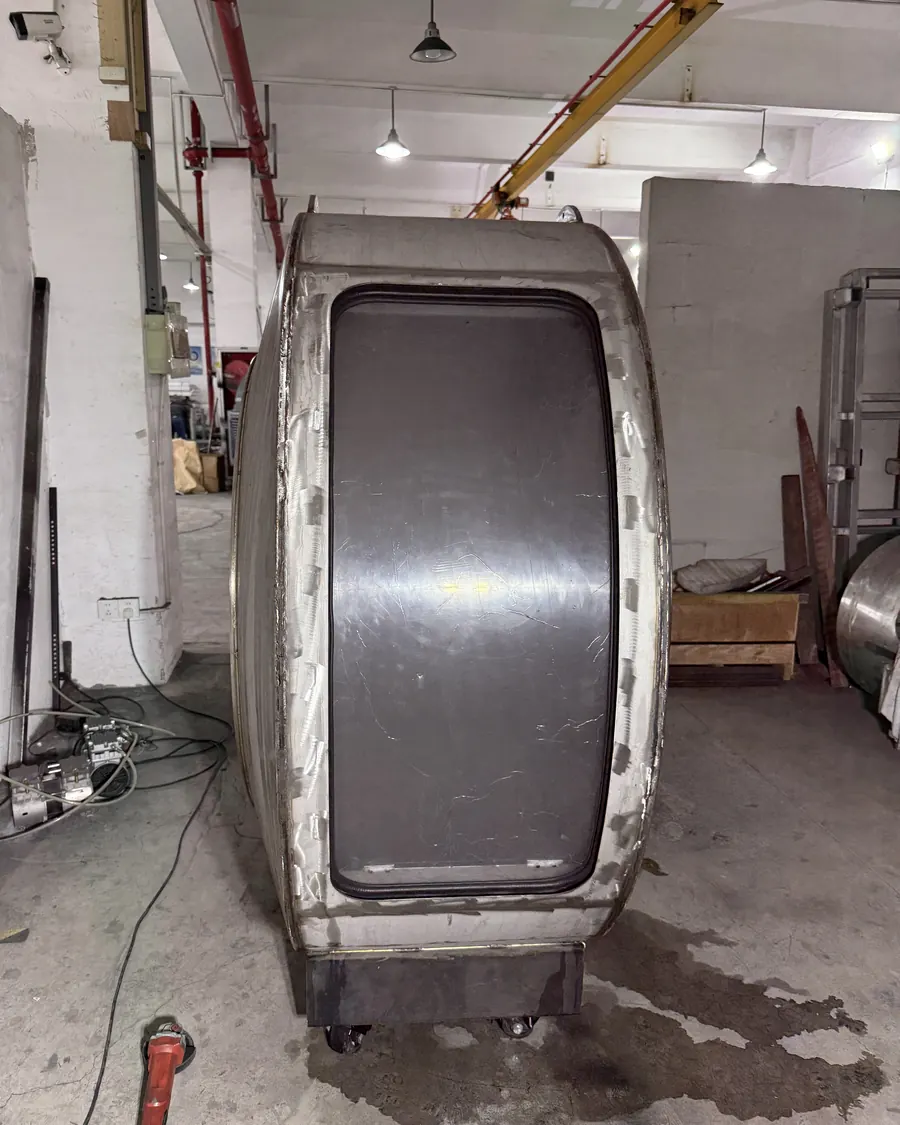

How it is made
From steel shell to crated chamber.

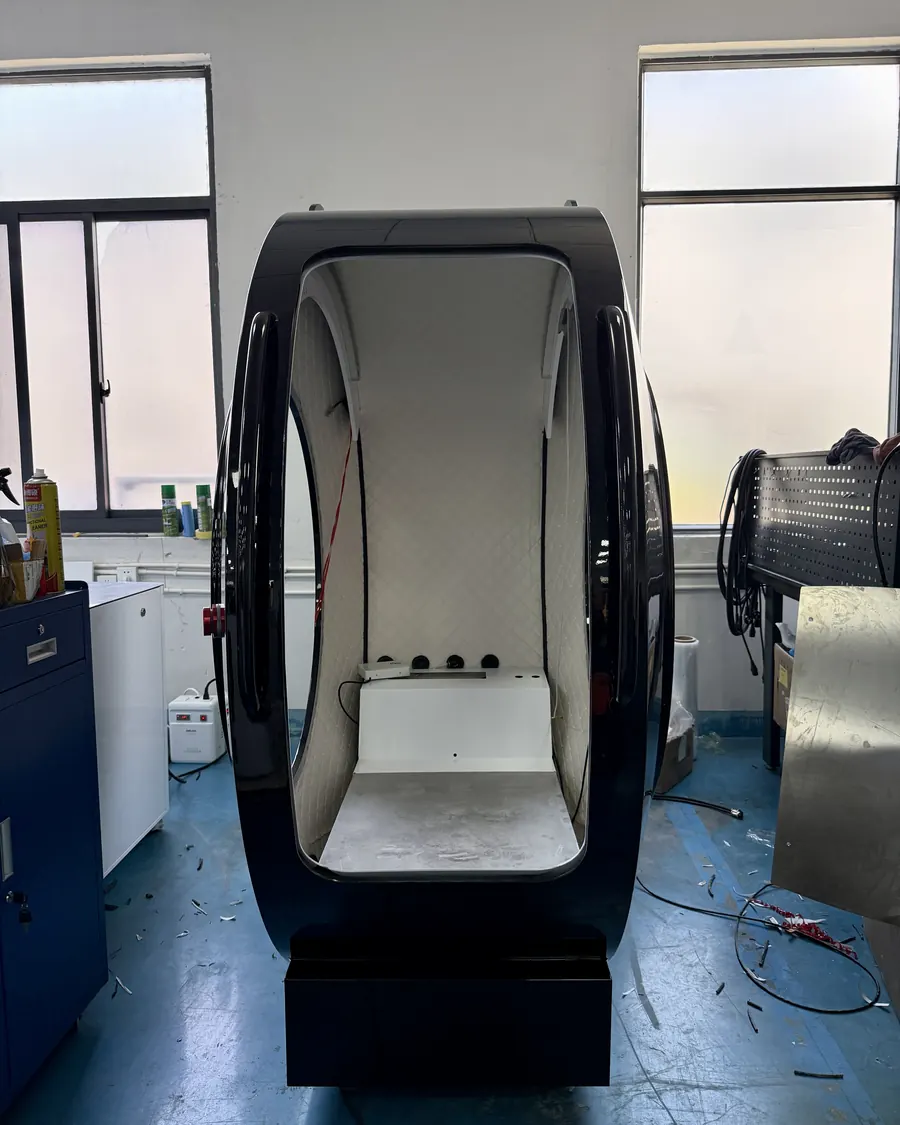

ARC photographed at each stage in our factory in Zhuji. Design, fabrication, welding, the main unit, controls, assembly and testing are handled by our own team.

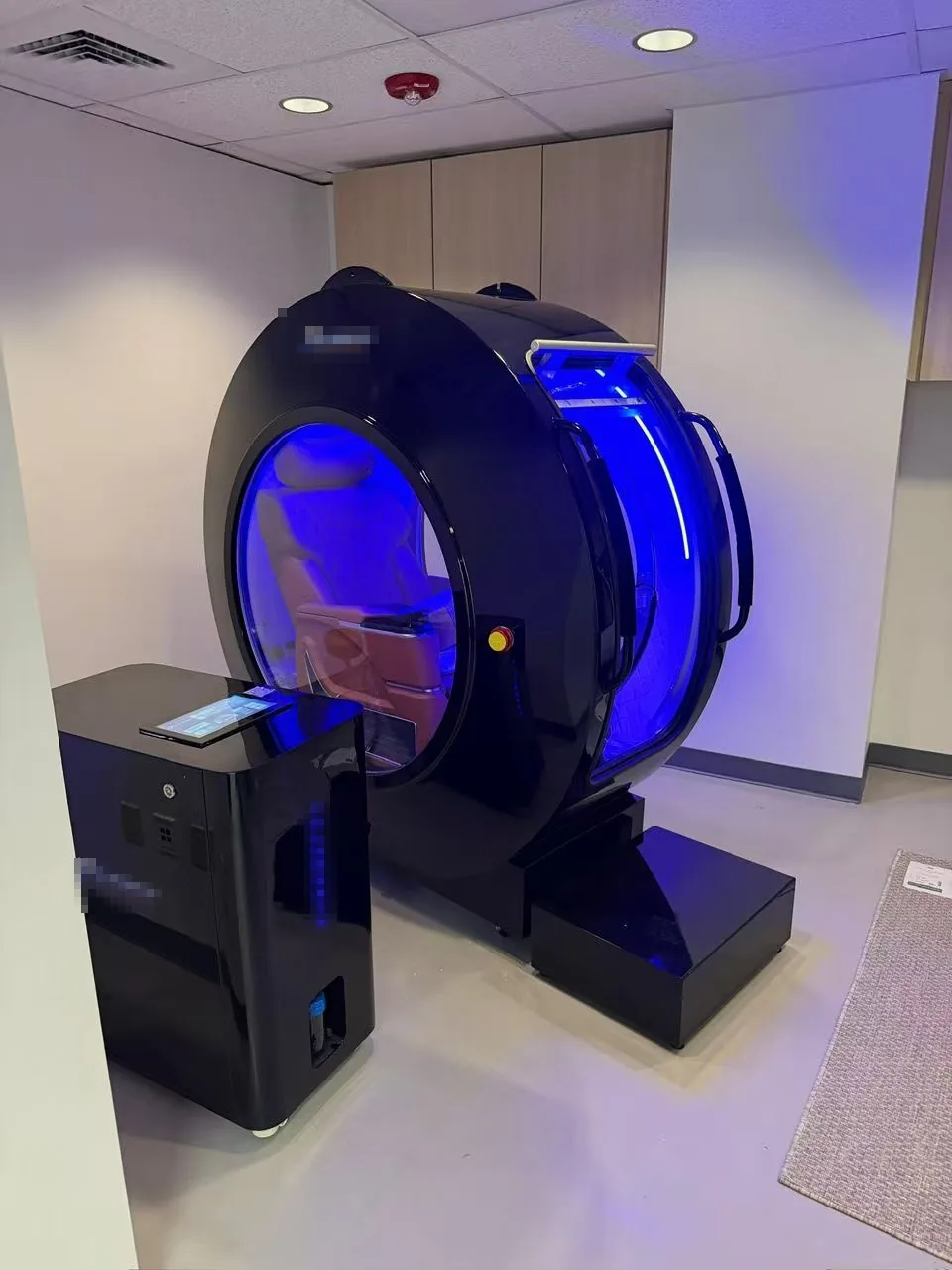

🇺🇸 United StatesCustomer delivery
Customer delivery
ARC delivered to United States.
A black ARC built with the customer's own brand on the chamber and main unit — a private-label (OEM) order — photographed at our factory before packing, in the delivery truck in the US, and installed in the customer's room. Customer branding is hidden in the photographs.
See the delivery photosFAQ
ARC questions.
More answers in the buyer guides and the FAQ.
How narrow a door can ARC pass through?
ARC is 980 mm wide with its side glass fitted and 860 mm with both side glass panels removed, or 860 mm as built in the flat PC window version. These are body widths, not clearances — send us the route and our engineers check it.
Can ARC have three-panel infrared or an illuminated door?
No. Neither is offered for ARC. Single or dual (head and foot) infrared, seating upgrades, folding table, PEMF and entry steps are optional.
Which features in the photos are standard?
Standard: the 10L all-in-one main unit with air conditioning, standard sofa and wall finish, warm-white interior LED, two touch panels and two intercoms. Lighting colours, NAPA seating, infrared panels, PEMF, 20L + BIBS and the entry step are optional.
What power supply does ARC need?
With the standard 10L all-in-one system: 2,000 W, 20 A at 110 V / 60 Hz, or 1,500 W, 8 A at 220 V / 50 Hz. With the optional 20L system and BIBS: 2,700 W, 25 A at 110 V, or 2,500 W, 13 A at 220 V. A local electrician plans a dedicated circuit. Electrical guide.
What does “93% ± 3%” oxygen mean?
It is the oxygen concentration at the concentrator supply. It is not the oxygen level of the air inside the pressurized chamber, and it is not a medical claim. Oxygen systems explained.
Is there a price list for ARC?
No. Each chamber is configured and shipped to a specific destination, so quotations are prepared per project and confirmed by our sales team.
Can I order ARC in my own colour or with my logo?
Black, white, dark grey and light grey are the standard shell colours; any of the 216 RAL Classic colours can be ordered, and two-tone designs on request. Your own logo is confirmed with your order; private-label (OEM / ODM) projects are welcome, including single units. See the colours, walls and seats.
What warranty and support come with ARC?
SkelundTech's company warranty policy is two years; scope, conditions and start date are set in your contract. Support is remote from the factory team — assembly drawings, guidance and after-sales help — and replacement parts are supplied free of charge; if you need them fast, you pay only the express freight. There are no local technicians at present.
